Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 28
September 29, 2014
Revision A1
4.2.4 Procedures for Selecting a Resolution and Frame Rate – SDI
The procedures below describe how to select the resolution for the SDI output.
Note: You can create your own custom formats using the Quantum Data Format Editor. These procedures are
described in Creating and Using Custom Formats, EDIDs and Bitmaps.

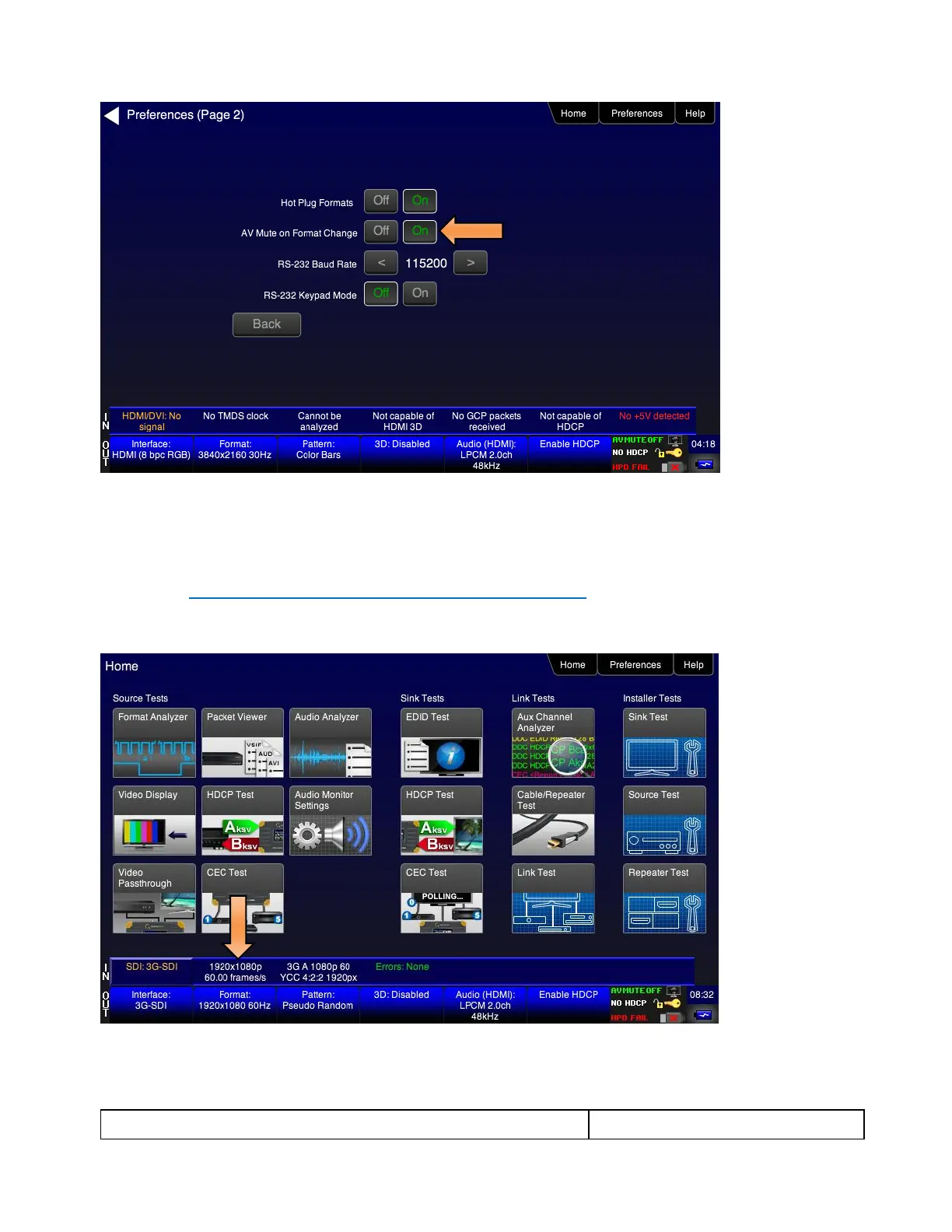

1. Touch select the Formats activation button on the Status bar OUT to access the Formats menu. Refer to
the figure below.
The Formats menu appears as shown below:
