Quantum Data 780C - Page 125

780C Multi-Interface Interoperability Tester – User Guide Page 124
September 29, 2014
Revision A1

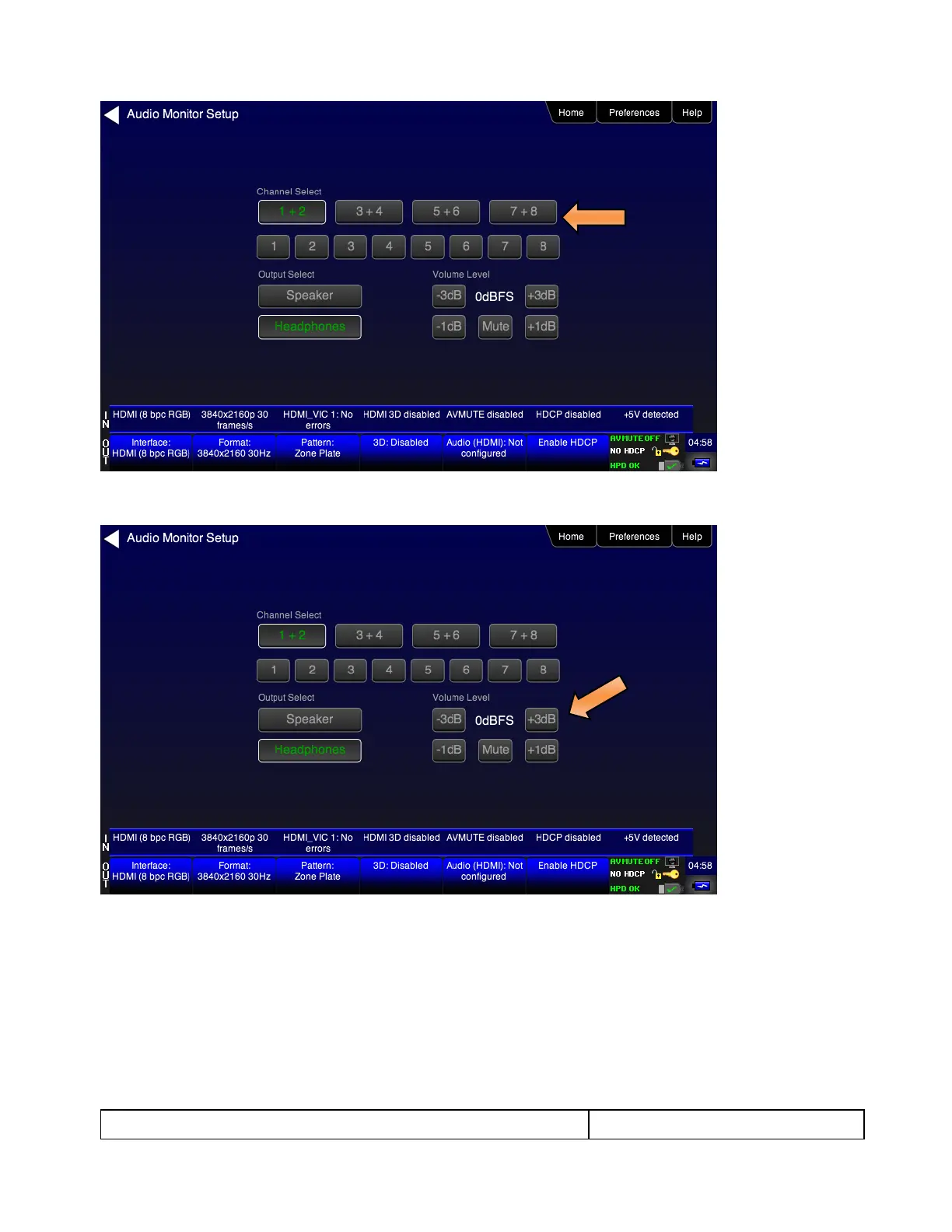

4. Specify the Headphone amplitude in increments of +/-3dB or =/-1dB using the buttons under Headphone
Level. Select Mute to extinguish the audio.
5. Select the single channel to monitor through the embedded speaker using the Speaker Channel set of
selection buttons.
