780C Multi-Interface Interoperability Tester – User Guide Page 131

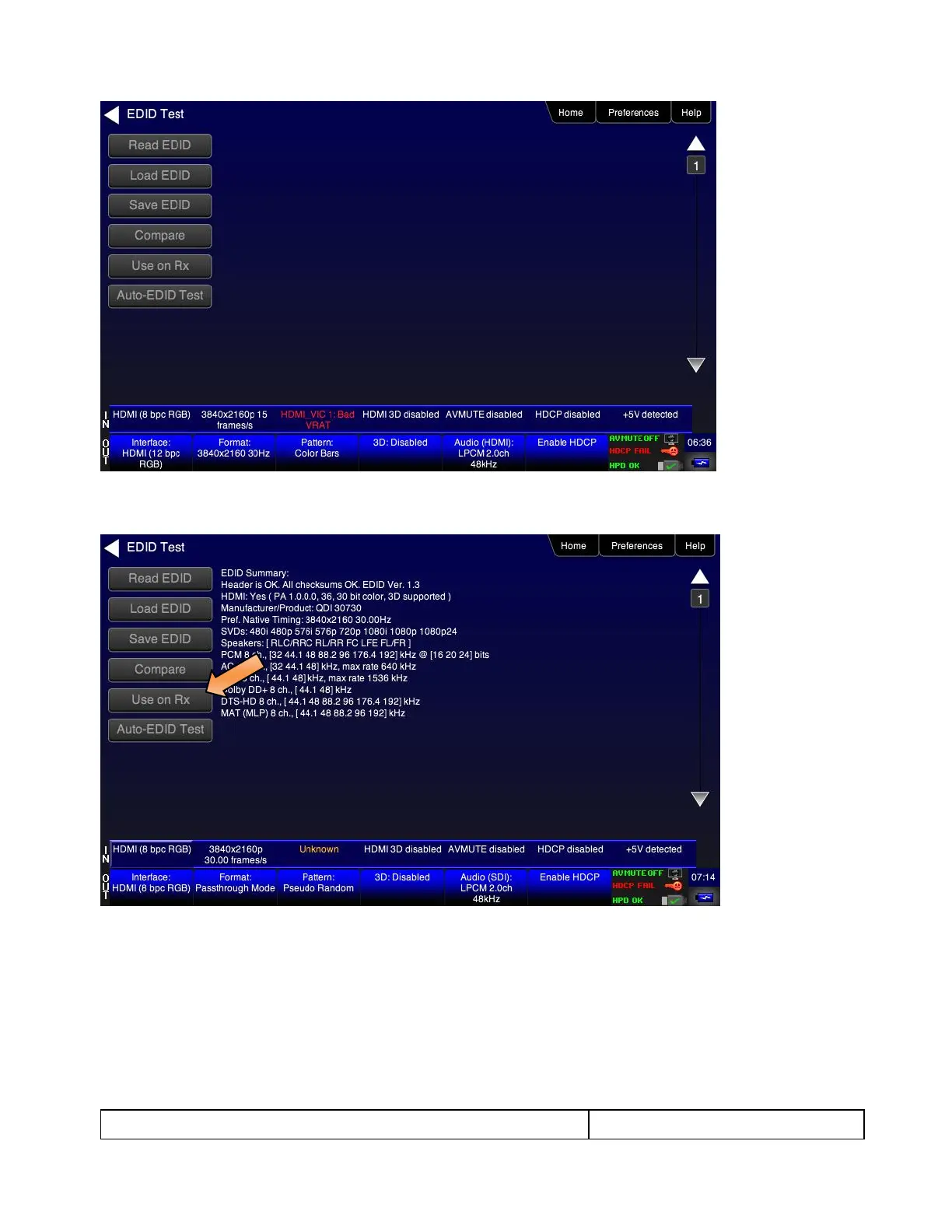

7. Touch select the Read activation button from the EDID Test menu shown above.
The EDID is listed as shown below.
8. Touch select the Use on Rx activation button to apply the EDID, you have either loaded from a file or read
from an HDMI/HDBaseT sink device, to the 780C HDMI or HDBaseT IN port.
9. Connect the 780C HDMI IN or HDBaseT IN port to the HDMI output of a source device or HDBaseT output
you wish to test as shown in the illustration below.
This will cause a hot plug event and the source device under test should read the EDID of the 780C HDMI
IN or HDBaseT IN port. Run the Format Analyzer test and other diagnostic tests on the source to
determine how it responded to the EDID.
