Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 14
September 29, 2014
Revision A1

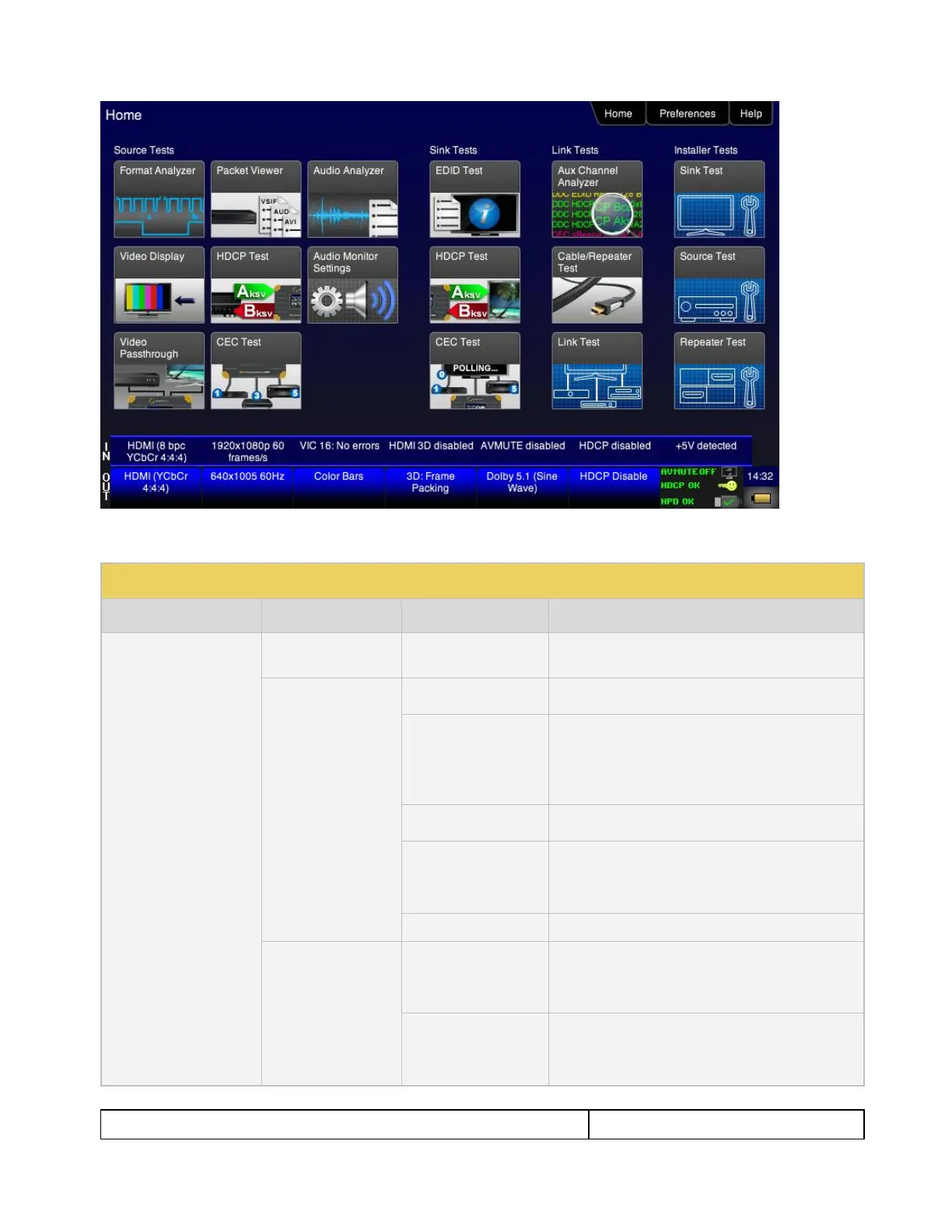

Table 3-1 below shows functions available from the Home screen.
Table 3-1: Top Level Menu
Item
Submenu - Pattern
Third Level Menu
Value
Top Menu Bar
Home / Back
navigation
See Below
Enables you to navigate back to the previous
screen.
Preferences
Page 1
Audible Touch
 Off
 On
Screen Brightness
 Min
 25%
 50%
 75%
 Max
USB Mode
 COM for commands
 Disk for downloading files and upgrades
Startup Mode
 Set the 780’s menu configuration to the default
menu (shown throughout this User Guide).
 Custom Menu – Utilize a configuration that you
have created.
Custom Menu
 Enter to navigate to custom menu screen.
Preferences
Page 2
Hot Plug Formats
 On – 780C automatically select the formats in
the EDID of the connected HDTV.
 Off – 780C will not automatically select the
formats in the EDID of the connected HDTV.
AVMute on Format
Change
 On – AVMute will occur when the resolution is
changed on the 780C HDMI output.
 Off – AVMute will occur when the resolution is
changed on the 780C HDMI output.
