780C Multi-Interface Interoperability Tester – User Guide Page 154

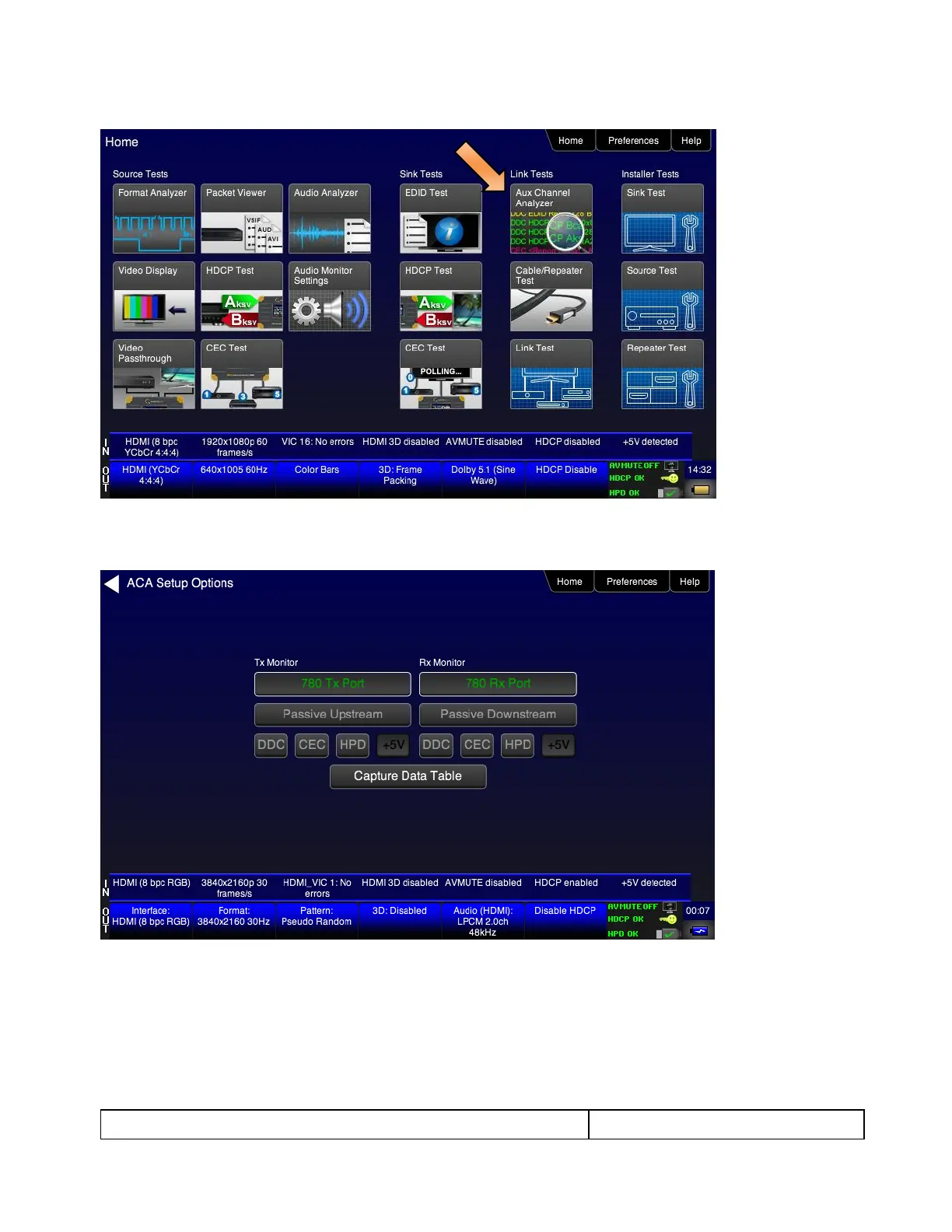

2. From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
The ACA Setup Options screen appears:
5. Select the data types that you wish to monitor. In this application you would select data types from the Tx
Port side.
6. Determine what data types you wish to monitor. Typically you will want to monitor the DDC and hot plug
(+5V only available with passive monitoring option).
Note: By default the two activation buttons labeled 780C Tx Port and 780C Rx port are enabled. You
cannot disable them. Transactions will be shown based on which ports (HDMI/HDBaseT OUT and/or
