780C Multi-Interface Interoperability Tester – User Guide Page 158

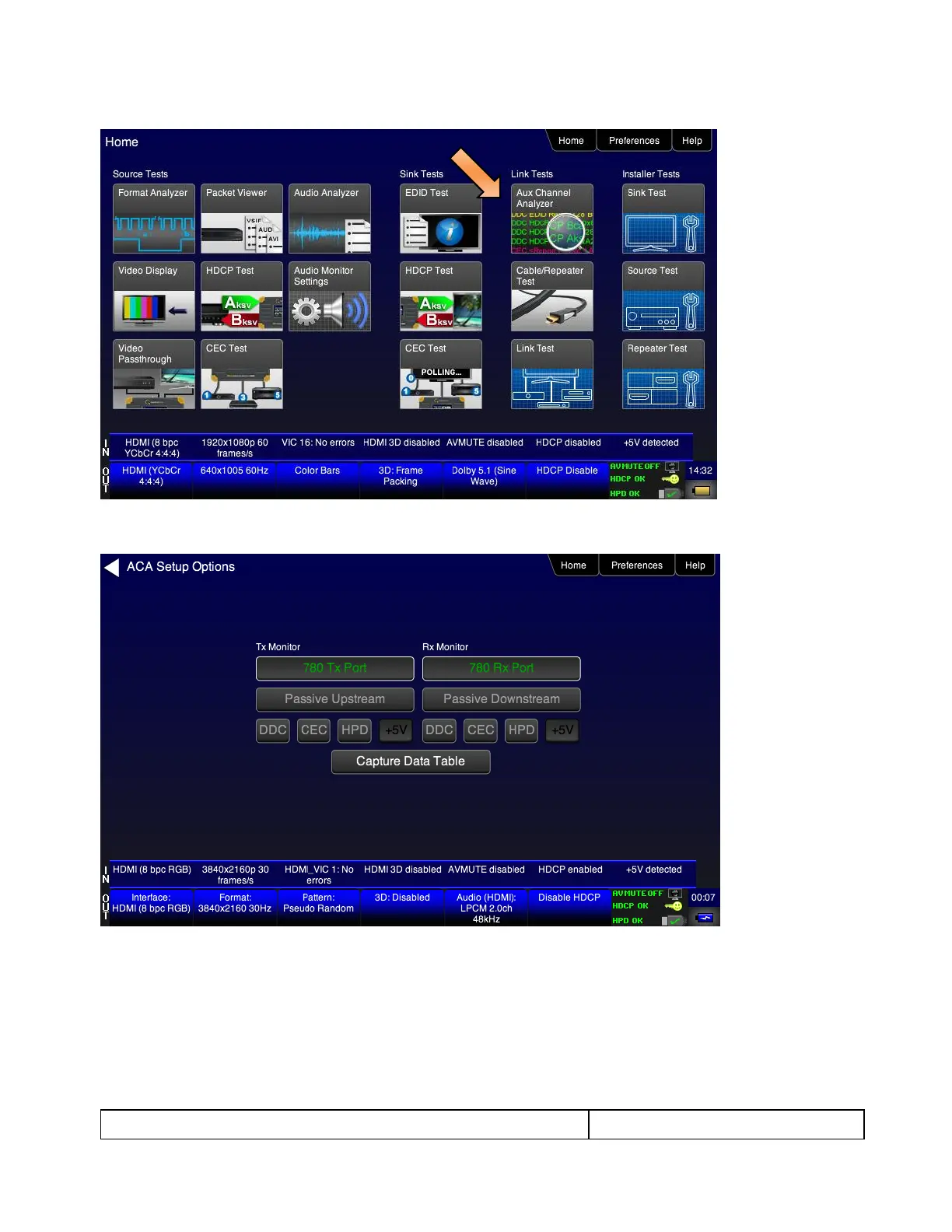

3. From the Home screen (shown below) touch select the Aux Channel Analyzer activation button.
The ACA Setup Options screen appears:
4. Select the data types that you wish to monitor on the Rx Port side.
5. Determine what data types you wish to monitor. Typically you will want to monitor the DDC, hot plug
(shown in the example above).
Note: By default the two activation buttons labeled 780C Tx Port and 780C Rx port are enabled. You
cannot disable them. Transactions will be shown based on which ports (HDMI/HDBaseT OUT and/or
HDMI/HDBaseT IN) are connected to HDMI/HDBaseT devices and which set of transactions you have
enabled (i.e. DDC, HPD on Tx or Rx side).
