780C Multi-Interface Interoperability Tester – User Guide Page 167
3. Select the data types that you wish to monitor. In this application you would select either Passive
Upstream or Passive Downstream.

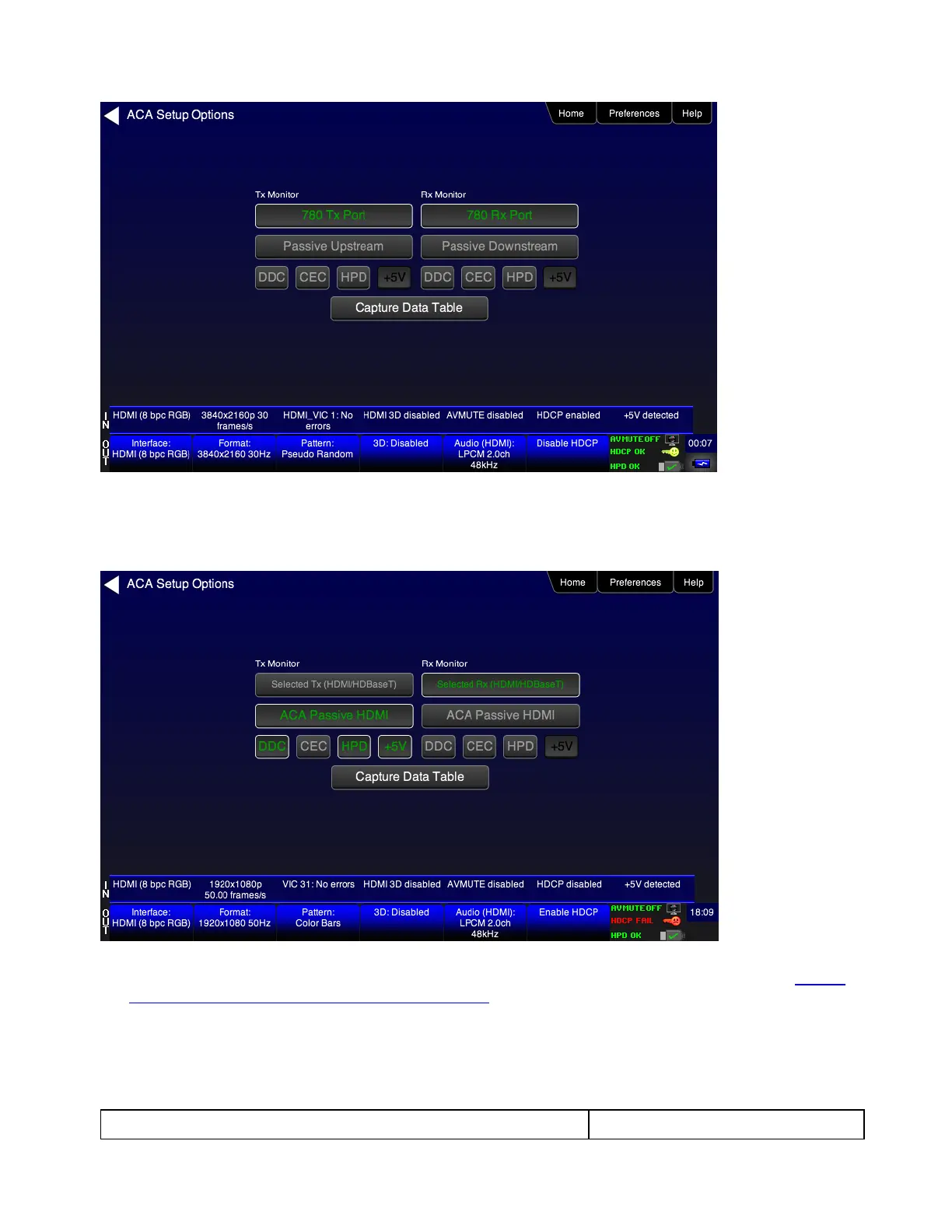

4. Determine what data types you wish to monitor. Typically you will want to monitor the DDC and hot plug
and +5V. Refer to the screen example below.
5. Enable HDCP on the HDMI source device under test. Use the procedures in the section entitled: Testing
HDCP on an HDMI HDTV or HDMI Repeater Device.
6. Take whatever action necessary to initiate a new HDCP authentication. Typically this would be a hot plug
event at the sink device you are testing.
7. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear.
