Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 26
September 29, 2014
Revision A1

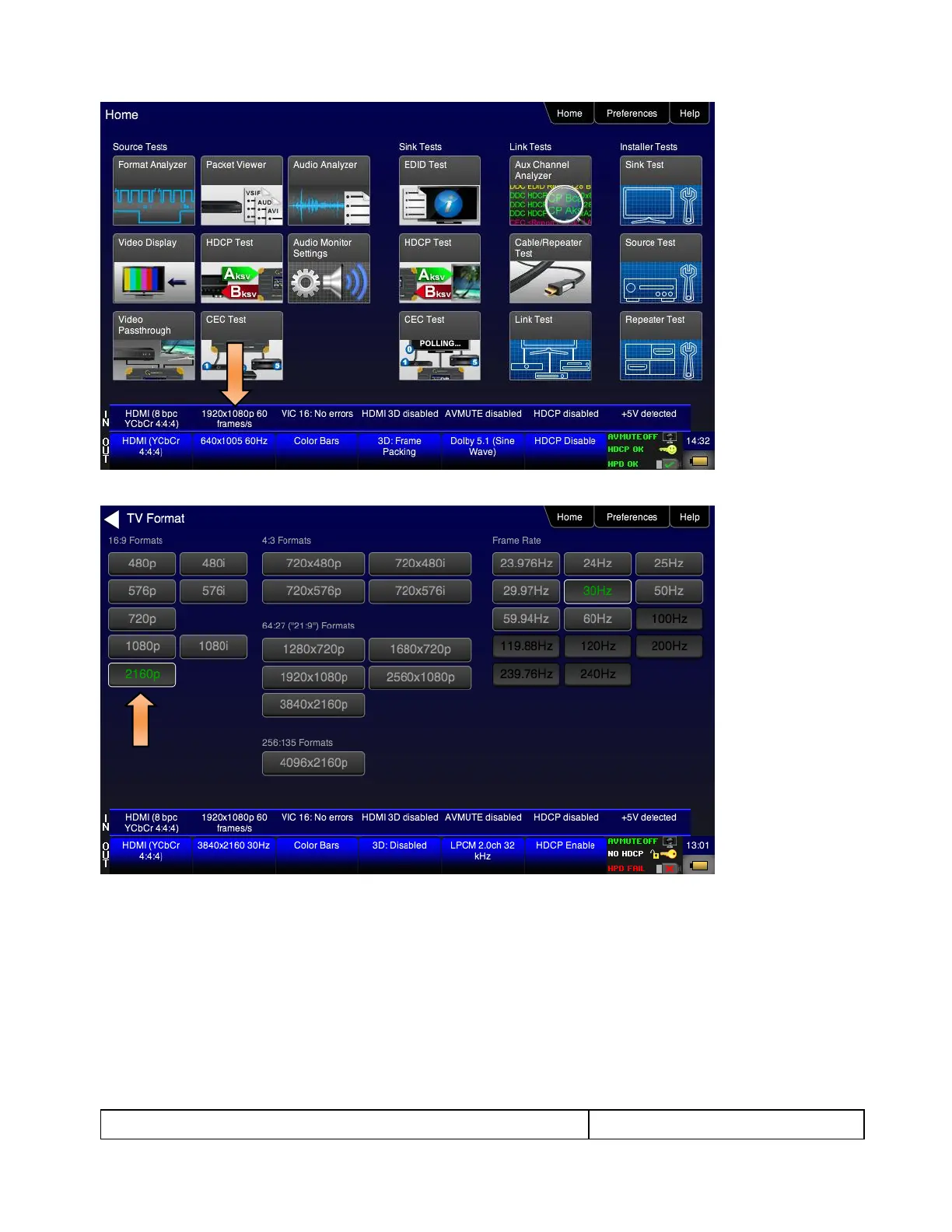

The Formats menu appears as shown below (example HDMI):
4. Touch select the desired format and Frame Rate (example 2160p at 30Hz above).
For the HDMI formats, there are color codes that are applied to the Resolution and Frame Rate selections. The
following is a summary of their meaning:
 A Resolution or Frame Rate with white lettering but with no outline – a Resolution or Frame Rate that
appears in the EDID and has a short video descriptor associated with it.
 A Frame Rate with green lettering and with white outline – The Frame Rate that is currently selected.
 A Frame Rate with red lettering but with no outline – The Frame Rate is not supported by the EDID for
that Resolution.
 A Frame Rate(s) with green lettering and with white outline – The Frame Rate along with the currently
selected Resolution that is the “preferred” timing.
