Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 31
September 29, 2014
Revision A1

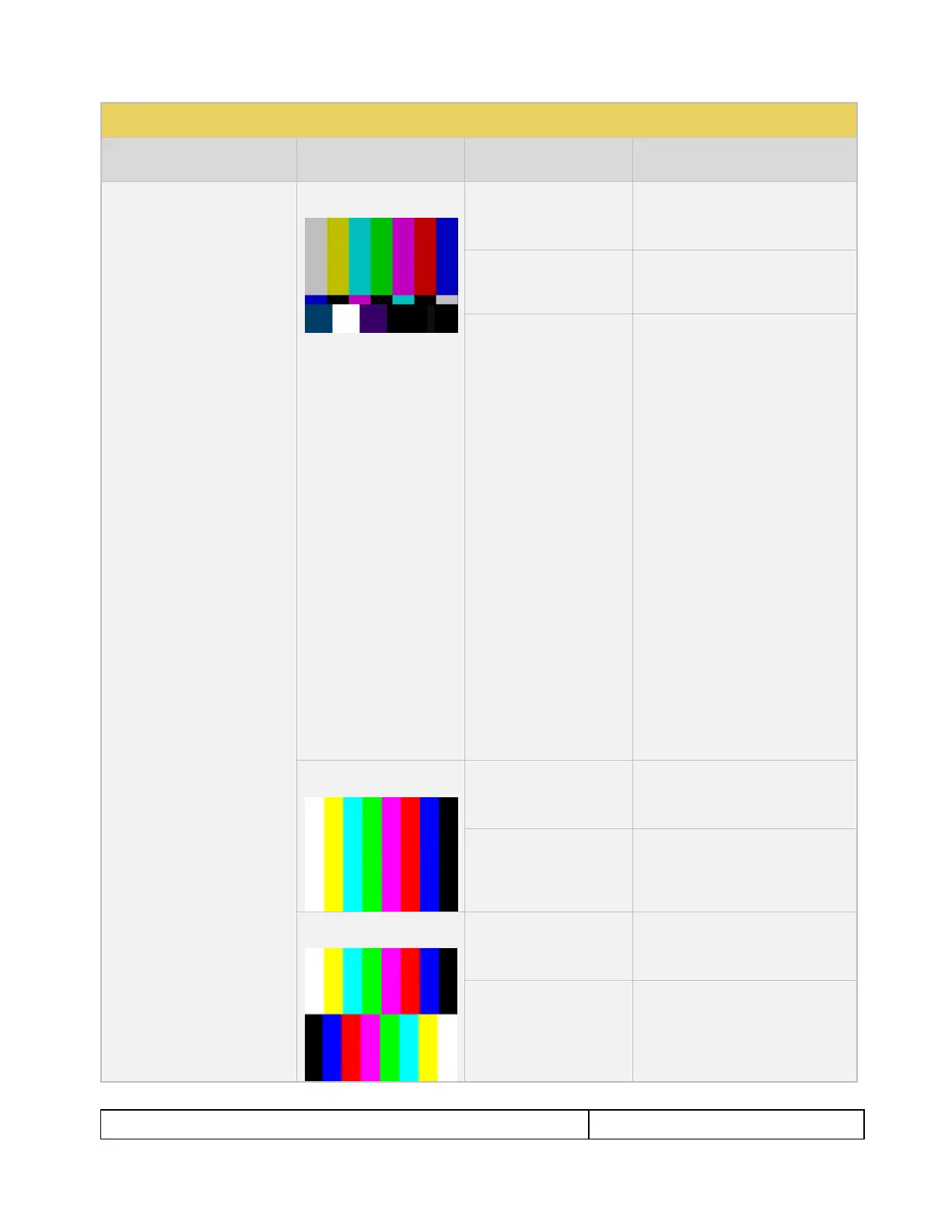

Table 4-3: Test Patterns
Pattern Name
Variant
Options
Range of Values
ColorBar patterns
Applications:
SMPTEBars - To adjust color
and hue.
Colorbars - To test a display’s
ability to product fully saturated
primary and secondary color.
SMPTE
Orientation - Vertical
Direction:
 Left to Right
 Right to Left
Orientation - Horizontal
Direction:
 Top / Bottom
 Bottom / Top
Pixel values in RGB, 8bit
with TV (limited range)
mode.
Note 1: Deep color values
for 10-bit or 12-bit are
different from those
shown.
Note 2: When using PC
Format type the range will
go from 0 to 255 for 8-bit
color mode.
From left to right; top to bottom:
Top bars:
R=180 G=180 B=180
R=180 G=180 B=16
R=16 G=180 B=180
R=16 G=180 B=16
R=180 G=16 B=180
R=180 G=16 B=16
R=16 G=16 B=180
Middle short bars:
R=16 G=16 B=180
R=16 G=16 B=16
R=180 G=16 B=180
R=16 G=16 B=16
R=16 G=180 B=180
R=16 G=16 B=16
R=180 G=180 B=180
Lower bars:
R=18 G=70 B=107
R=235 G=235 B=235
R=86 G=31 B=134
R=16 G=16 B=16
R=9 G=9 B=9
R=16 G=16 B=16
R=23 G=23 B=23
Full
Orientation - Vertical
Direction:
 Left to Right
 Right to Left
Orientation - Horizontal
Direction:
 Top / Bottom
 Bottom / Top
Split
Orientation - Vertical
Direction:
 Left to Right
 Right to Left
Orientation - Horizontal
Direction:
 Top / Bottom
 Bottom / Top
