Quantum Data 780C User Manual

780C Multi-Interface Interoperability Tester – User Guide Page 35
September 29, 2014
Revision A1

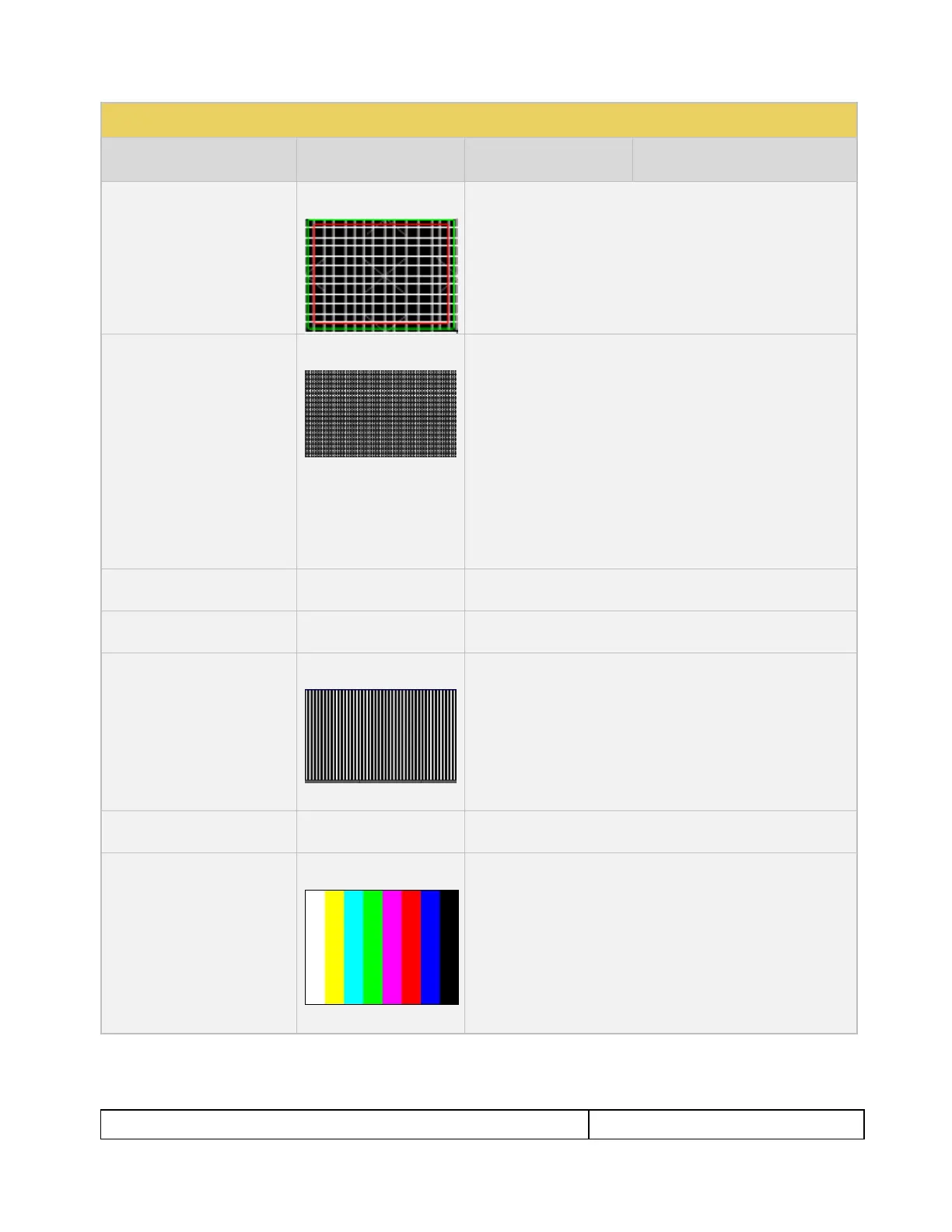

Table 4-3: Test Patterns
Pattern Name
Variant
Options
Range of Values
Overscan
N/A
EMI/Grill
Applications:
EMI – Show grid of “H”
characters to check for EMI
effects on image. Each “H”
character should be clear and
distinct.
EMI
H Type
Grill On/Off
Scroll – Scrolls the “H” characters vertically.
Grill – for verifying monitor
resolution.
EMI - Grill
Grill On/Off
Grill Mode
Color Bars – To test a display’s
ability to produce fully
saturated primary and
secondary color.
EMI - ColorBars
Scroll – color bars scroll horizontally.
