780C Multi-Interface Interoperability Tester – User Guide Page 49
September 29, 2014
Revision A1

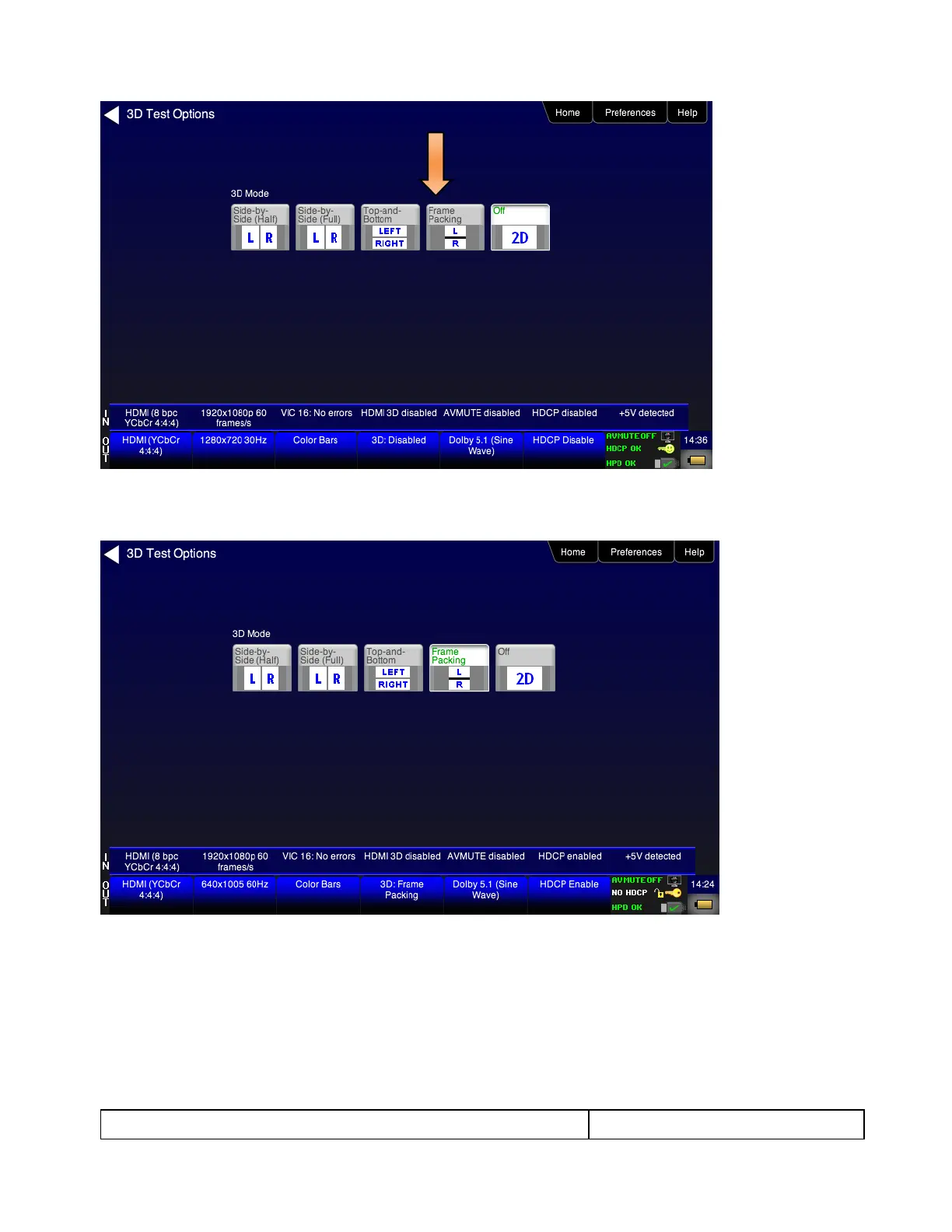

4. Select the 3D mode (Side-by-Side, Top-and-Bottom or Frame Packing) and then select the subtype and
Left/Right options (if applicable).
5. Select the 3D bitmap or image image from the Test Pattern list.
