780C Multi-Interface Interoperability Tester – User Guide Page 97
September 29, 2014
Revision A1

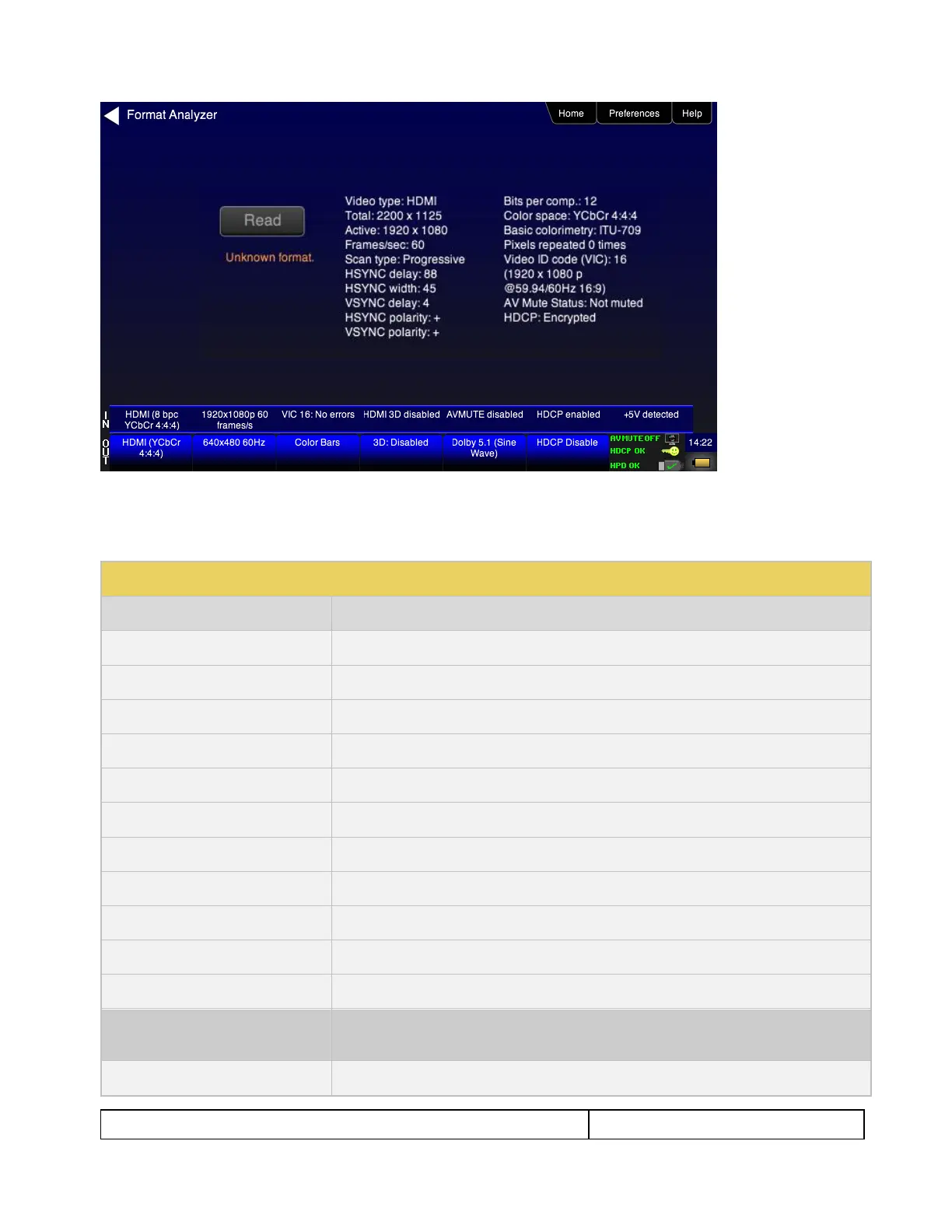

Table 6-2 below describes each field in the Format Analyzer on-screen report. The basic timing information
is shown on the left of the resulting screen and the AVI infoframes received are displayed on the right. Also
displayed on the right side is an indication of the status of HDCP encryption.
Table 6-2: Format Analyzer
Timing Parameters (left side)
Description
Video Type
Indicates whether the source is HDMI or DVI.
Total
Total horizontal and vertical resolution including blanking.
Active
Total active horizontal and vertical resolution excluding blanking.
Frames/sec
The frame rate of the HDMI/DVI input source.
Scan Type
Indicates whether the HDMI/DVI input source is progressive or interlaced.
HSYNC delay
The horizontal sync pulse delay in pixels.
HSYNC width
The horizontal sync pulse width in pixels.
VSYNC delay
The vertical sync pulse delay in lines.
VSYNC delay
The vertical sync pulse width in lines.
HSYNC polarity
The polarity of the horizontal sync pulse; either positive (+) or negative (-).
VSYNC polarity
The polarity of the vertical sync pulse; either positive (+) or negative (-).
AVI Infoframe Parameters
(right side)
Description
Bits per comp
The number of bits per component color. Can be 6, 8, 10, 12, 16.
