Preparing for use

R&S

NRPxxP

13User Manual 1179.5760.02 ─ 02

180

NRP

3-Path Diode Power Sensor

MHz to GHz, 100 pW to 200 mW (−70 dBm to +23 dBm)

SMART SENSOR TECHNOLOGY

NOTICE! Risk of damaging the center pin of the RF connector. Only rotate the hex

nut of the RF connector. Never rotate the power sensor itself.

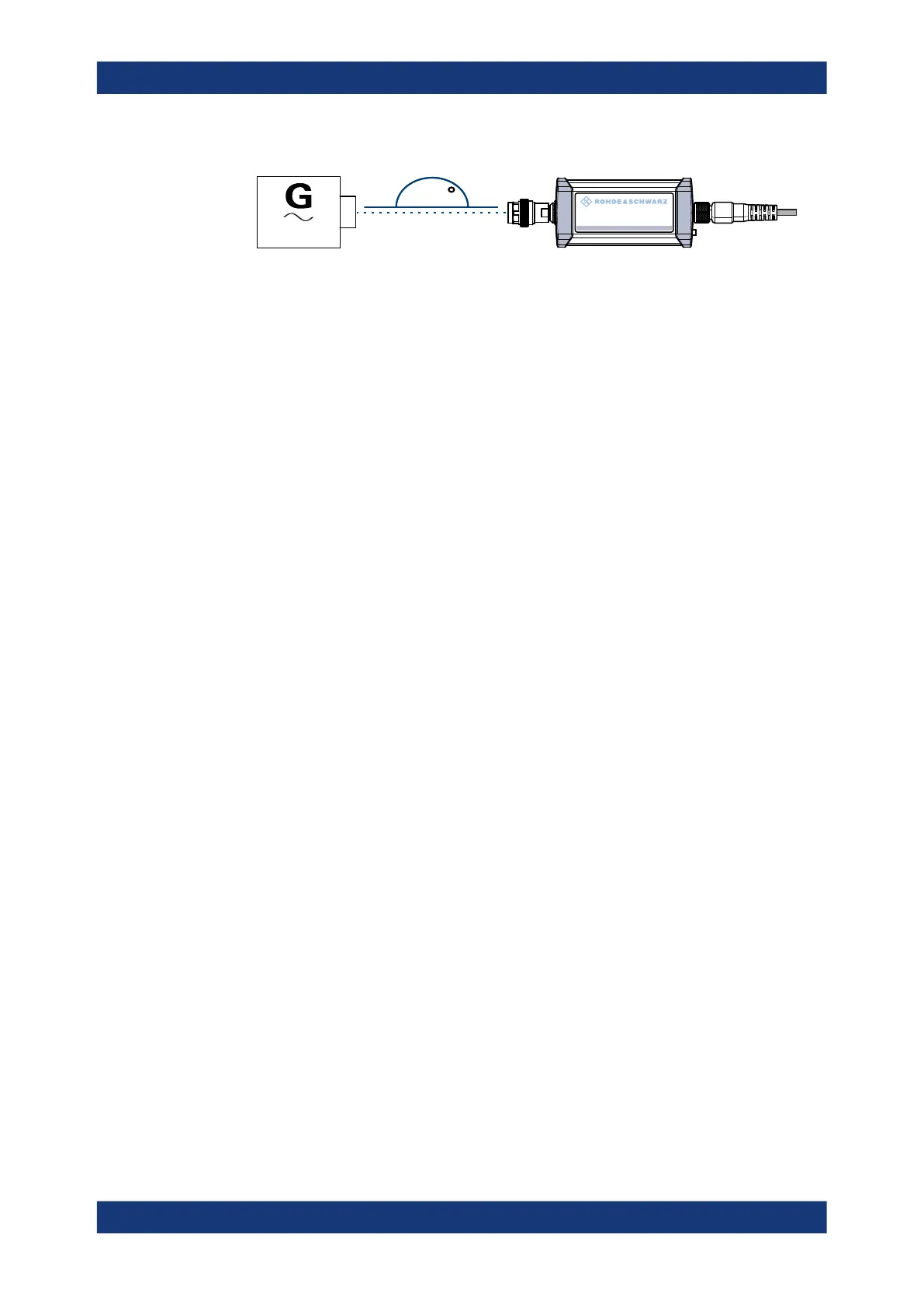

Tighten the RF connector manually.

5. Tighten the RF connector using a torque wrench with the nominal torque recom-

mended in Chapter 4.1, "RF connector", on page 18 to ensure maximum mea-

surement accuracy.

To disconnect from the DUT

NOTICE! Risk of damaging the center pin of the RF connector. Only rotate the hex

nut of the RF connector. Never rotate the power sensor itself.

Carefully loosen the union nut at the front of the RF connector of the power sensor.

2. Remove the power sensor.

3.5 Powering the power sensor

The electrical power for the R&S NRPxxP is supplied over the host interface. See

Chapter 4.3, "Host interface", on page 19.

3.6 Connecting a cable to the host interface

For connecting the power sensor to a USB host, use the host interface. See Chap-

ter 4.3, "Host interface", on page 19.

Depending on the USB host, use one of the following cables:

●

Computer or R&S NRP‑Z5 sensor hub:

R&S NRP‑ZKU cable with a USB connector

See Chapter 3.7.1, "Computer", on page 14.

●

Base units or other supported Rohde & Schwarz instruments:

R&S NRP‑ZK6 cable with a push-pull type connector

See Chapter 3.7.2, "Base unit", on page 17.

These cables can be obtained in different lengths up to 5 meters. The order numbers

are provided in the data sheet.

To connect a cable to the host interface of the power sensor

1. Insert the screw-lock cable connector into the host interface connector of the power

sensor.

Connecting a cable to the host interface
