Operating concepts
R&S
®
NRPxxP
23User Manual 1179.5760.02 ─ 02
Further information:
●
Chapter 8, "Remote control commands", on page 33
●
Chapter 10, "Remote control basics", on page 125
●
Chapter 10.1, "Remote control interfaces and protocols", on page 125
●
Chapter 3.7.1, "Computer", on page 14
5.3 R&S NRPV
The R&S NRPV enables you to measure power in all available measurement modes.
Also, you can use up to four power sensors simultaneously.
The R&S NRPV is provided on your documentation CD-ROM and on the
Rohde & Schwarz website as a separate standalone installation package.
Required equipment
●
R&S NRPxxP power sensor
●
R&S NRP‑ZKU cable or an R&S NRP‑Z5 sensor hub and an R&S NRP‑ZK6 cable
to connect the power sensor to the computer
●
Windows computer with installed:
– R&S NRP Toolkit version 4.20 or higher
– R&S NRPV version 3.2 or higher (refer to the operating manual of the
R&S NRPV for a description of the installation process)
Setup
1
2
3
4
5
6
NRP
3-Path Diode Power Sensor
MHz to GHz, 100 pW to 200 mW (−70 dBm to +23 dBm)
SMART SENSOR TECHNOLOGY

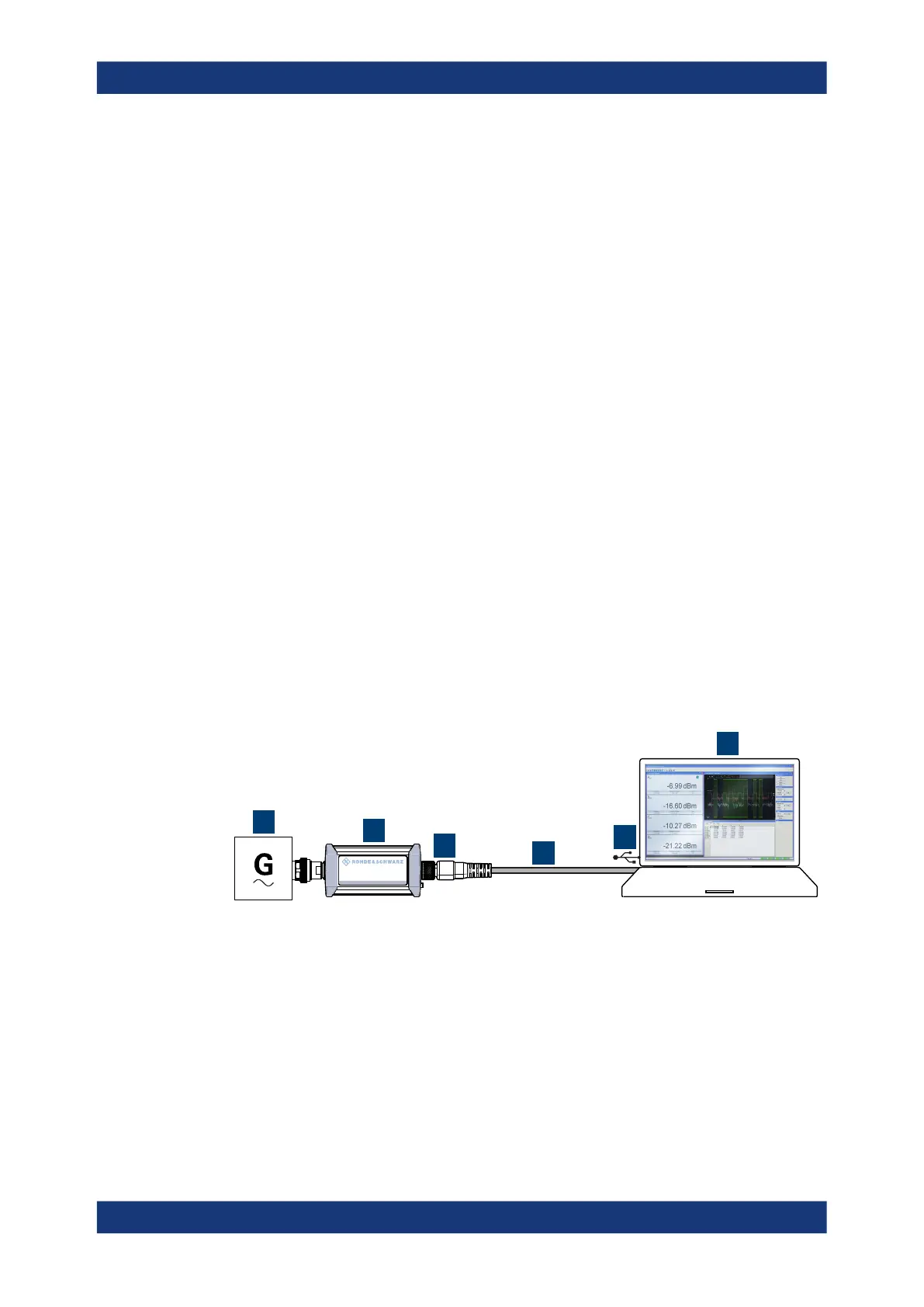

Figure 5-1: Setup with an R&S
NRPV
1 = Signal source
2 = R&S NRPxxP power sensor
3 = Host interface connector
4 = R&S NRP‑ZKU cable
5 = USB connector
6 = Computer with installed R&S NRPV
1.
NOTICE! Incorrectly connecting or disconnecting the power sensor can damage
the power sensor or lead to erroneous results. Ensure that you connect or discon-
R&S
NRPV
