Remote control commands
R&S
®
NRPxxP
66User Manual 1179.5760.02 ─ 02
SENSe<Sensor>:TRACe:TIME:FPGA?
Queries the trace length used internally by the signal processing FPGA.
Usage: Query only
8.6.5 Pulse analysis measurement
Use this measurement for automatic analysis of pulsed signals. You can measure
either power over time over the whole trace, or restrict the measurement to a defined
portion of the pulse signal. Trigger each trace separately.
Amplitude (%)
Time (s)
0
100
Pulse top
Pulse base
0
Pulse stop
Pulse start
Pulse width
Rising edge
Falling edge
Pulse period

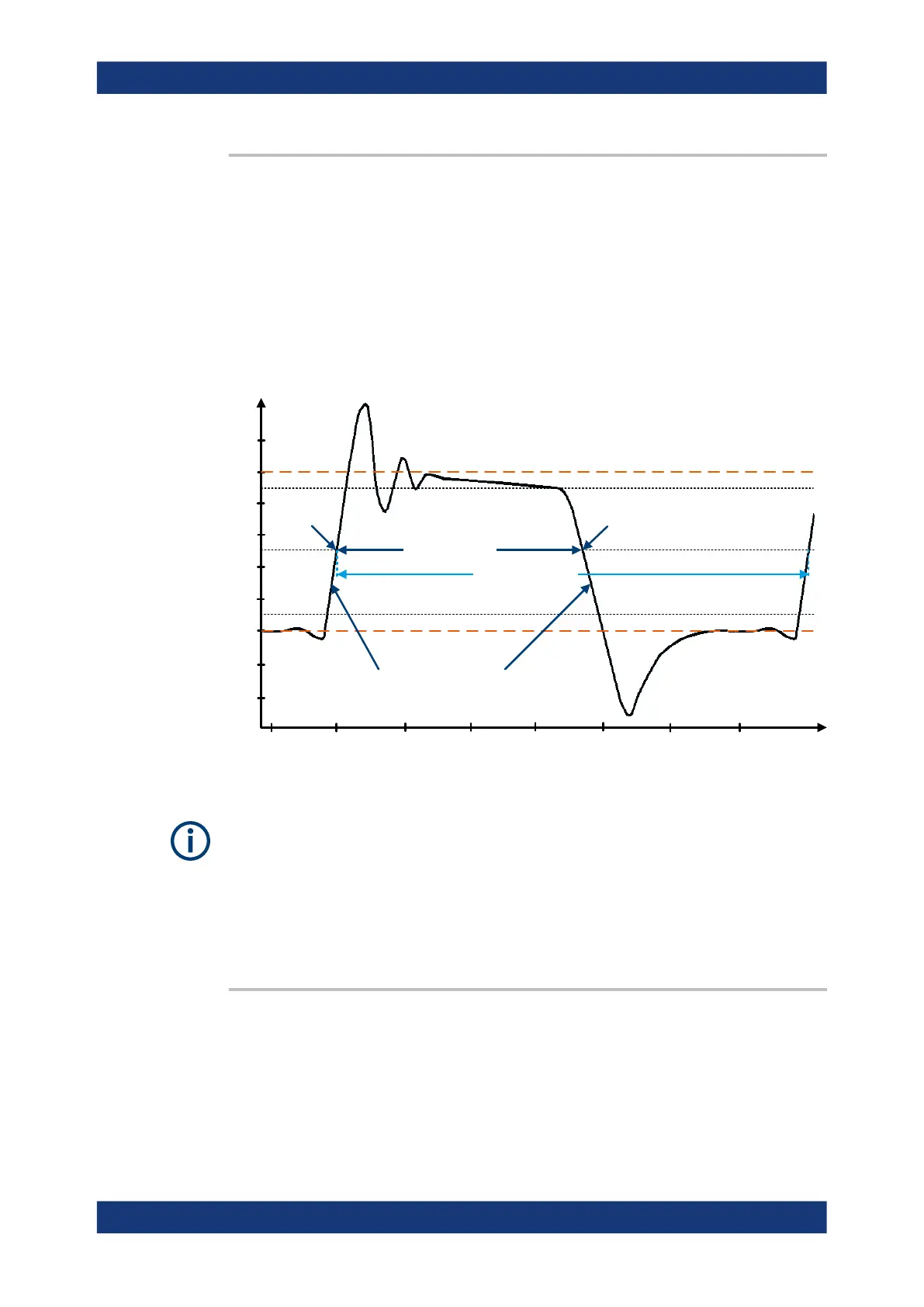

Figure 8-4: Pulse characteristics
For information on querying the measurement results, see
Chapter 8.9.5, "Pulse analy-
sis measurement results", on page 99.
8.6.5.1 Enabling the pulse analysis measurement
Pulse analysis measurements are performed in trace mode. Select the trace mode
using SENSe<Sensor>:FUNCtion.
SENSe<Sensor>:TRACe:MEASurement:STATe <state>
Available in trace mode.
Enables or disables the pulse analysis measurement.
Parameters:
<state> ON | OFF
Configuring the measurement modes
