Remote control commands
R&S
®
NRPxxP
70User Manual 1179.5760.02 ─ 02
Parameters:
<mode> ON | OFF
If enabled, the trace and pulse data are synchronously available.
*RST: OFF
8.6.6 Statistics measurement
Using the statistics mode, you can analyze the statistical distribution of the envelope
power. The duration of the sampling window is either defined by the chosen gate or a
set aperture time. The measurement is repeated until the minimum number of samples
is collected.
Two functions for analyzing the statistical distribution of the envelope power are availa-
ble.
Complementary cumulative distribution function (CCDF)
Probability that the envelope power is higher than the corresponding x-axis power
value. Linear or logarithmic scale.
%
0.001
100.0
dBm
30
-10
0 10
20
1 2

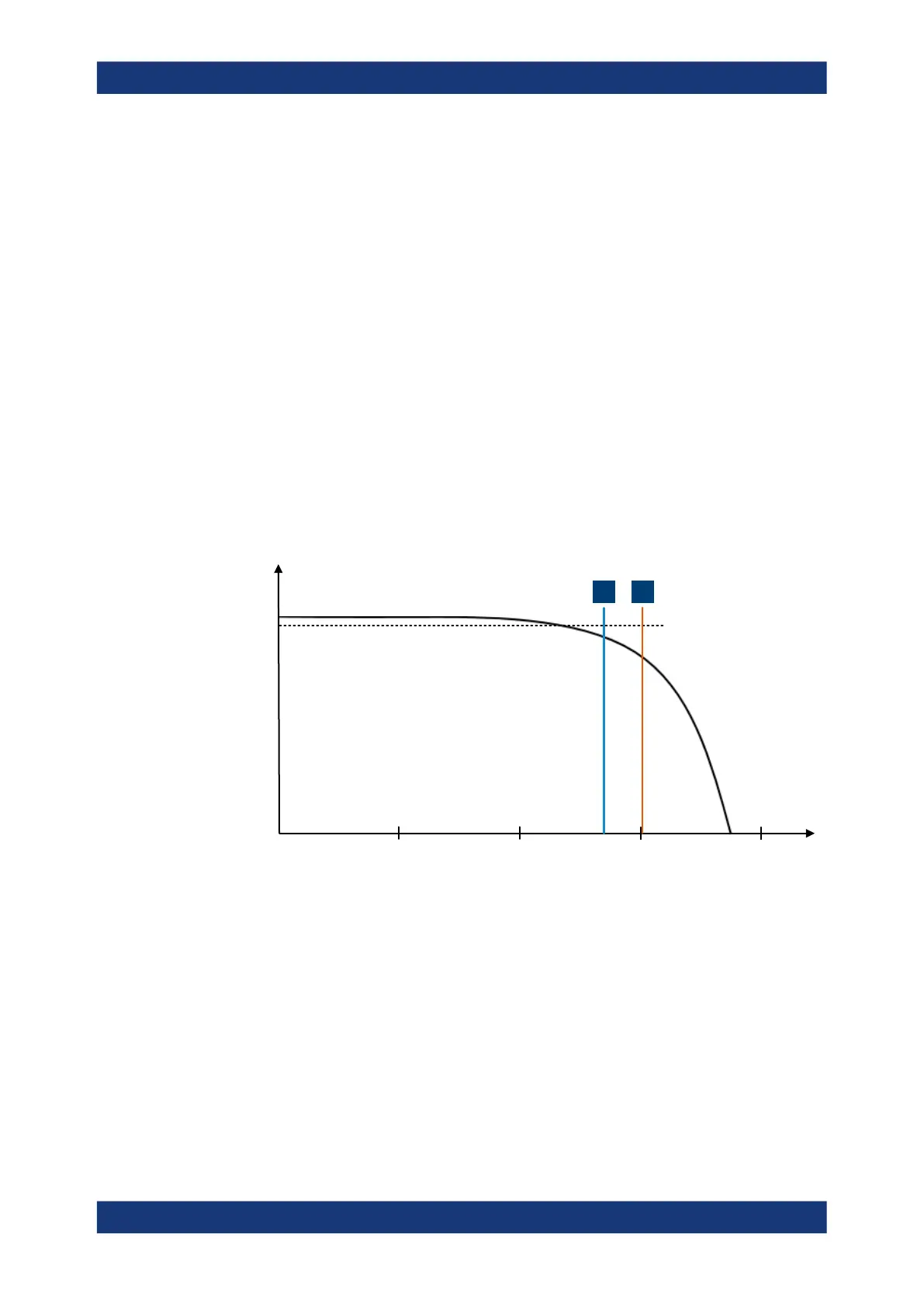

Figure 8-5: CCDF measurement parameters
1 = Average power
2 = Peak power
Probability density function (PDF)
Normalized distribution density of the envelope power. The measurement results are
dimensionless and independent of the magnitude of the average power value (Av).
Only linear scale is available.
Configuring the measurement modes
