Parameters:
<magnitude> 0.0 ≙ ideal matched source
1.0 ≙ total reflection
Range: 0.0 to 1.0
*RST: 0.0
SENSe<Sensor>:SGAMma:PHASe <phase>
Sets the phase angle of the complex reflection coefficient of the source, Γ
source
.
Parameters:
<phase> Range: -360.0 to 360.0
*RST: 0.0
8.7.4.5
Using the S-Parameters program
The S-Parameters program helps loading an S-parameter table into the power sensor.
The S-Parameters program is part of the R&S NRP Toolkit, see Chapter 5.1,
"R&S NRP Toolkit", on page 20.
To start the S-Parameters program

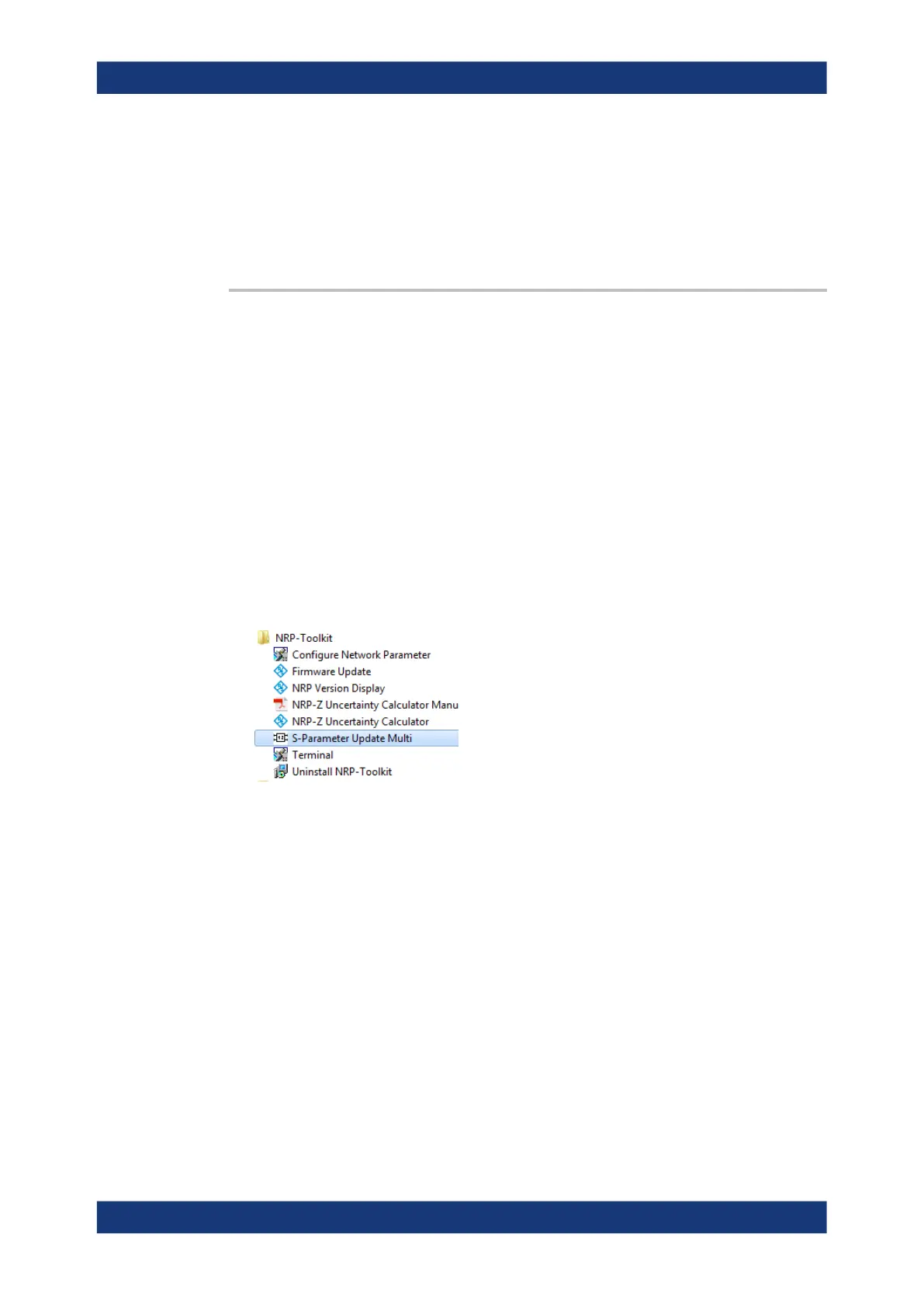

► In the Windows start menu, select "NRP Toolkit" > "S-Parameter Update Multi".
Configuring basic measurement parameters
