Remote control commands
R&S
®
NRPxxP
88User Manual 1179.5760.02 ─ 02

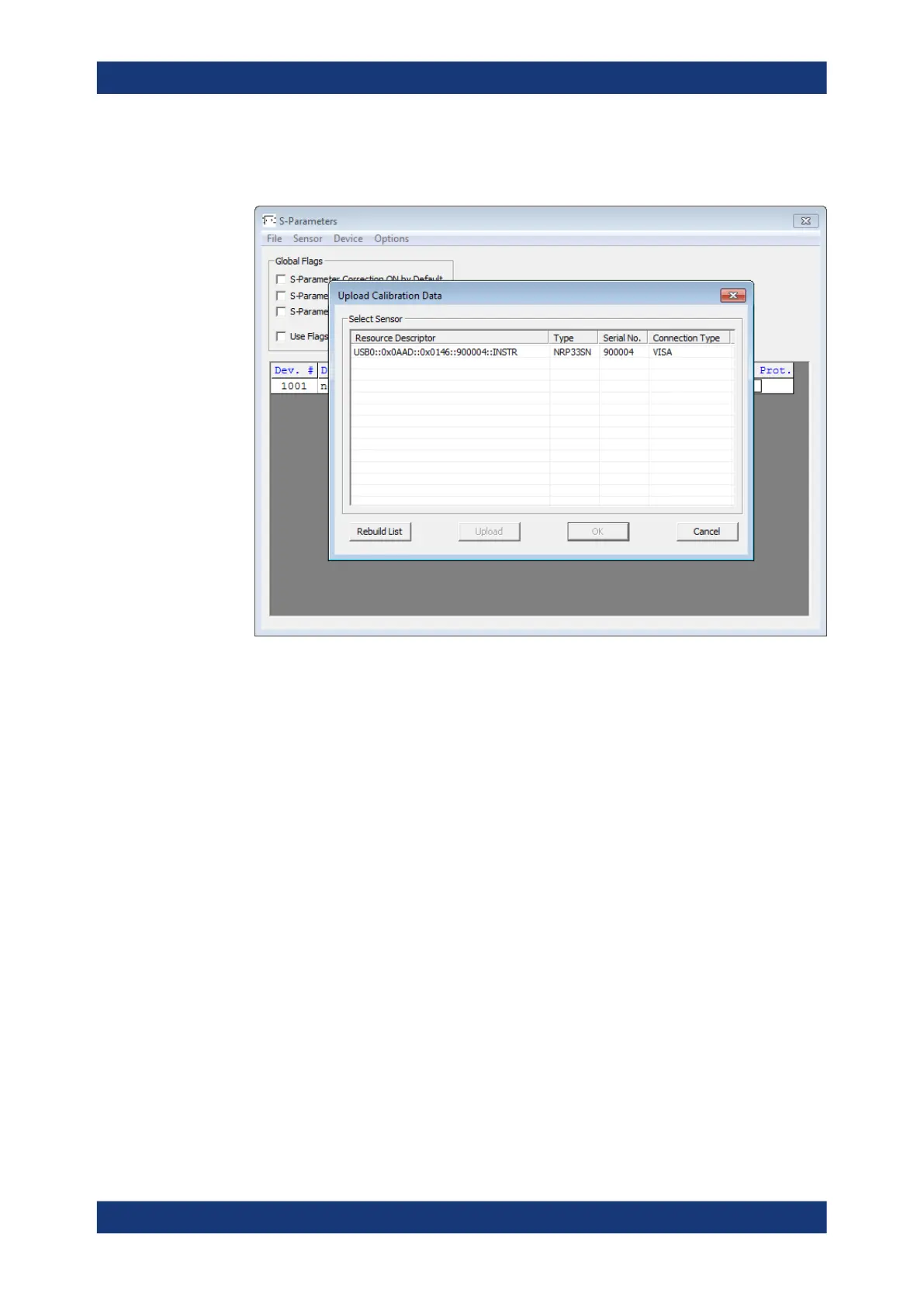

The "Upload Calibration Data" dialog opens. It shows a list of the available power
sensors.
3. If you cannot find your power sensor in the list, for example because of reconnect-
ing the power sensor, you can reload the list by clicking "Rebuild List".
4. Click "Upload" to load calibration data from the power sensor.
After the upload is finished, the "OK" button is enabled.
5. Click "OK" to apply the changes.
If you want to discard the changes, exit the dialog by clicking "Cancel".
After a successful upload, the name and serial number are shown in the name of
the main dialog.
Configuring basic measurement parameters
