c) Modifying the Throttle Function
Exworks,yourremotecontrol„HT-6“isconguredsothatthecontrolleverforthethrottle/pitchfunctionisonthe
left.ThisisthemostcommoncongurationinEurope.Ifyouprefertohavethethrottle/pitchfunctionontherightas
opposed to the left stick, you have the option of swapping the two stick units with each other.
To make the necessary changes, some experience with remote control transmitters is required. Therefore you should
consult an experienced model maker or a model construction club if you do not feel capable of undertaking the pro-
cedures described in the following.
• Removethetransmitterbatteries.
• UnscrewthefourscrewsbymeansofaPhillips-tipscrewdriverfromtherearpanelofthetransmitterandlifttherear
panel carefully towards the left.
• Ondemand,youcandisconnectthesupplylinesofthebatteryboxandtheteacher/studentsocket(1)atthemain
PCB.
• Forthis,loosenthefourscrewsatthecontrolstickunitsandswapthetwounits(g.6A,item2).Youneedtoturn
the control stick units by 180° each so that the connections of the control stick potentiometers (3) are aligned to the
insideagain(seeg.6B).
• Screwonthecontrolstickunitsagainandcheckthemechanicalfunctionofthecontrolsticks.
• Connectthebatteryboxandtheteacher/studentboxtothemainPCB.
• Attachthetransmitterbackwallagainandturninthefourattachmentscrewsagain.

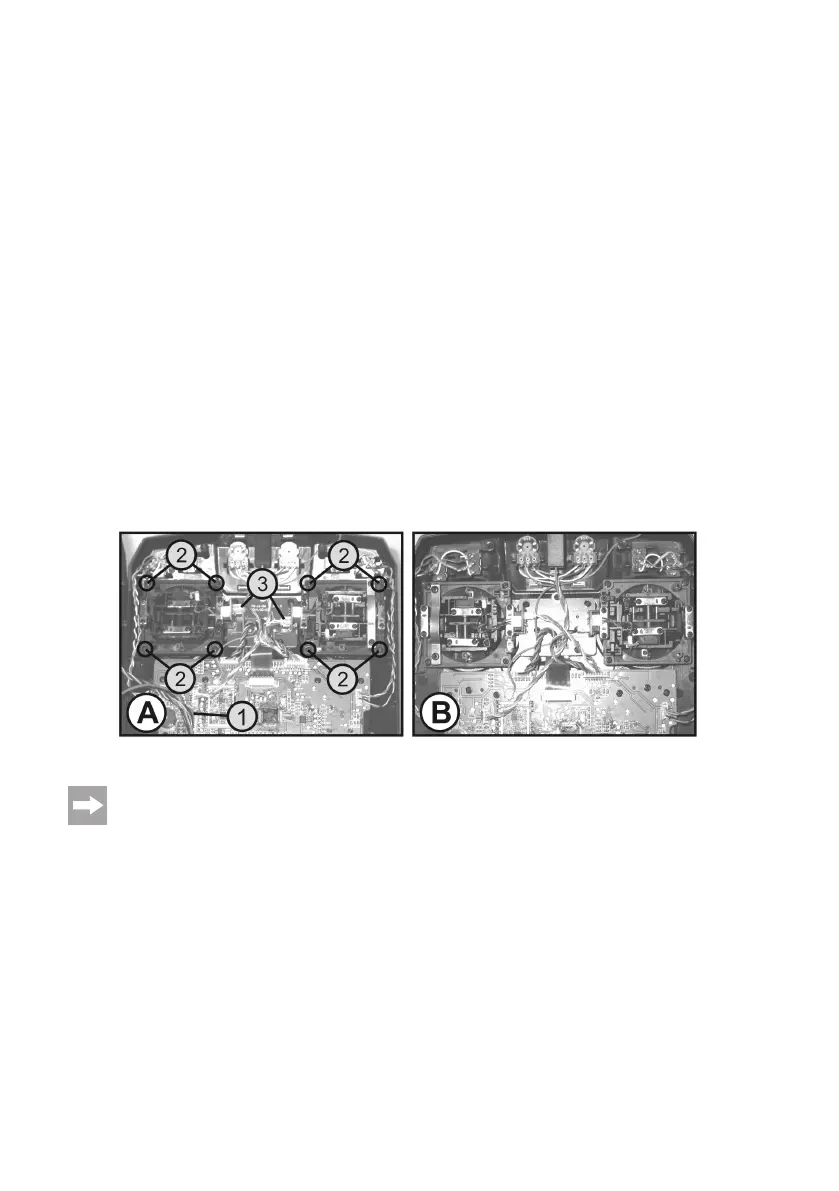

Figure 6
 TheelectronicmodicationofthethrottlefunctionisdonelaterintheSystemsettingmenuunder„Sticks
mode“.
