Reely HT-6 - Delta Mixer Elevon“

56
k) Delta Mixer „Elevon“
 Thismenuisonlyavailableifaightmodelwasselectedinthesystemsettingsmenu!
Forpurewingordeltaightmodels,therudderapsfortheai-
leron function are also sued for the elevator function, with each
rudder blade being controlled with a separate servo.

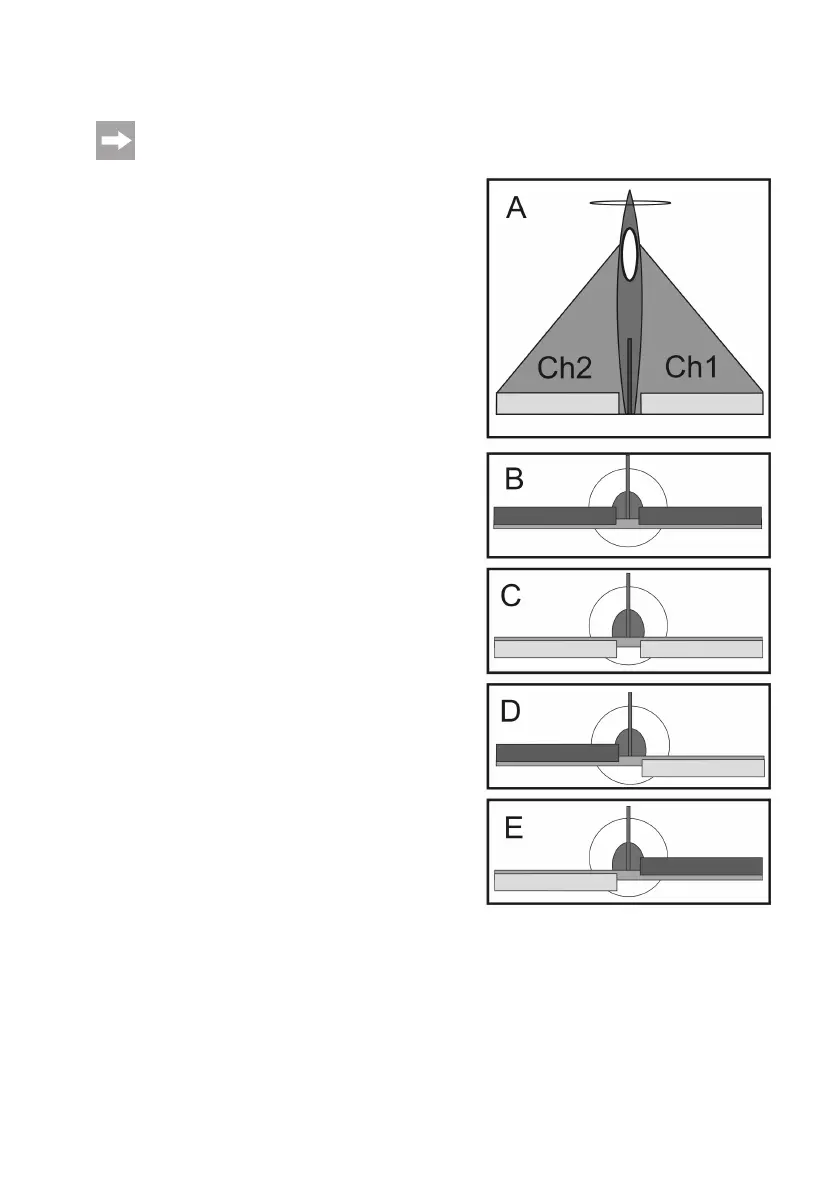

The servo for the right rudder blade/elevon is connected to
channel 1 (CH1) and the servo for the left rudder blade to chan-
nel 2 (CH2) of the receiver (see sketch A).
In that case, both servos carry out the elevator (ELEVATOR) and
aileron (AILERON“) = ELEVON control together.
If the elevator control stick is pulled towards the pilot, both rud-
ders(elevons)mustdeectupwards(SketchB)whenlookingat
the model from behind.
If the elevator control stick is pushed all the way to the front, both
ruddersmustdeectdownwards(SketchC)whenlookingatthe
model from behind.
If the aileron control stick is moved all the way to the left, the left
elevonmustdeectupwardsandtherightelevonmustdeect
downwards (Sketch D) when looking at the model from behind.
If the aileron control stick is moved all the way to the right, the
leftelevonmustdeectdownwardsand therightelevonmust
deectupwards(SketchE)whenlookingatthemodelfrombe-
hind.
Figure 48
