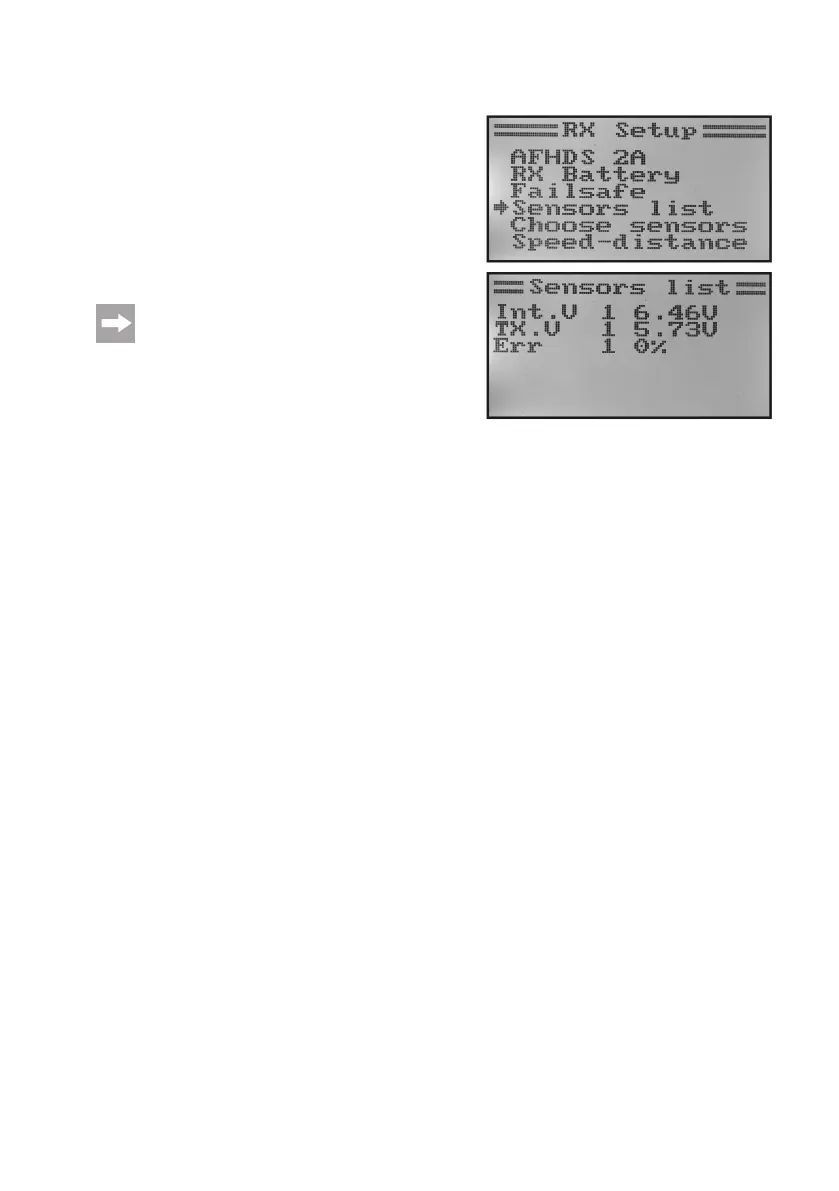

Sensor list „Sensor list“

The sensor list shows the connected sensors. In case of the en-

closed receiver, only the receiver voltage „Int.V“, the transmitter

voltage „TX.V“ and the error rate of the receiver signal „Err“ is

displayed. The larger the distance between the transmitter and

the receiver, and the worse the quality of the receiver signal, the

higher the percentage of the defectively received data.

Since a moving model will have a continually changing align-

mentofthereceiveraerials,thestronguctuationattheerror

display is perfectly normal.

If several sensors are connected to one I-BUS recei-

ver, these sensors are displayed in this menu.

Figure 25
