9. Transmitter Controls
Front:

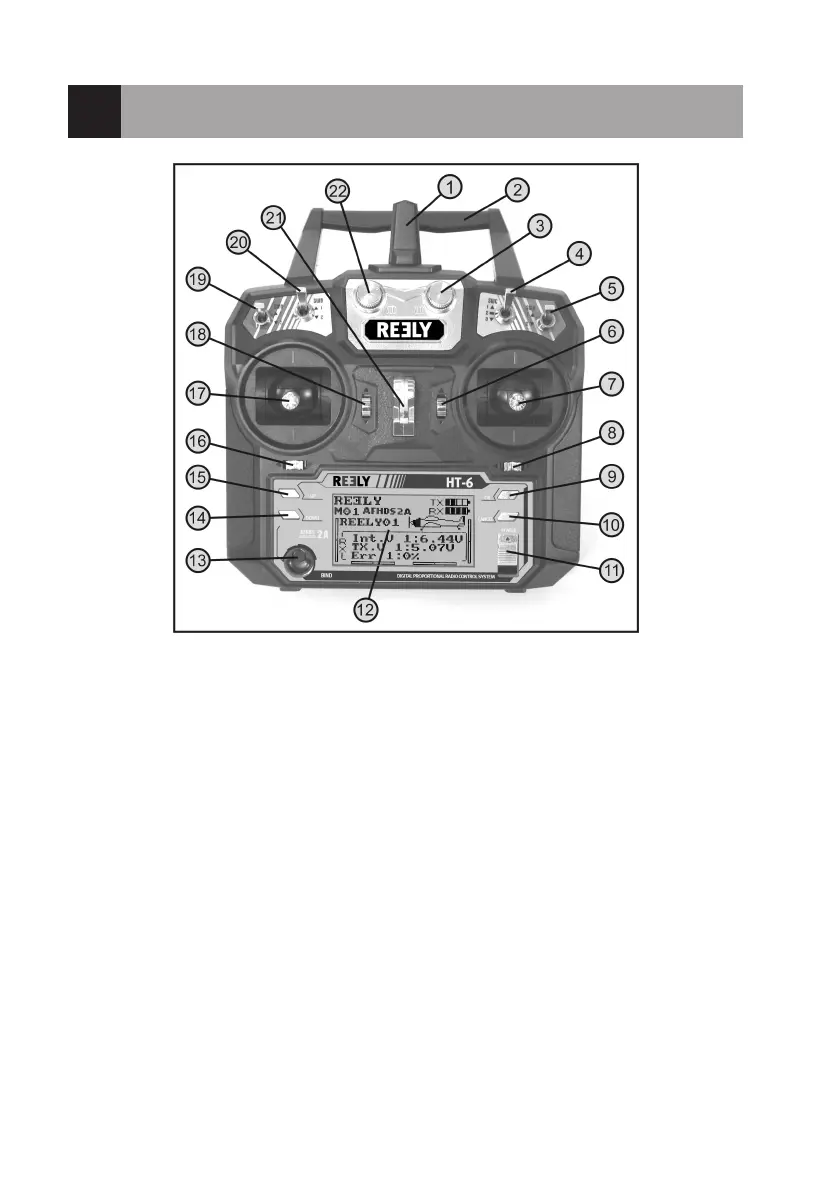

Figure 1
1 Transmitter aerial
2 Carry handle with integrated second transmitter aerial
3 Rotary encoder „VRB“
4 Toggle switch „SWC“
5 Toggle switch „SWD“
6 Trim button for elevator/nod function (in mode II)*
7 Control stick for elevator/nod and aileron/roll function
(in mode II)*
8 Trim button for aileron/roll function (in mode II)*
9 „OK“ button
10 „CANCEL“ button
11 On/off switch
12 LC display
13 Binding button
14 „DOWN“ button
15 „UP“ button
16 Trim button for rudder/tail function (in mode II)*
17 Control stick for rudder/tail and throttle/pitch function
(in mode II)*
18 Trim button for throttle/pitch function
(in mode II)*
19 Toggle switch „SWA“
20 Toggle switch „SWB“
21 Eyelet for shoulder belt
22 Rotary encoder „VRA“
* Further information for mode setting can be found in the system setting menu in the menu item „Sticks mode“.
