Reely HT-6 - Setting up the Receiver; Receiver Connection

15
11. Setting up the Receiver
a) Receiver Connection

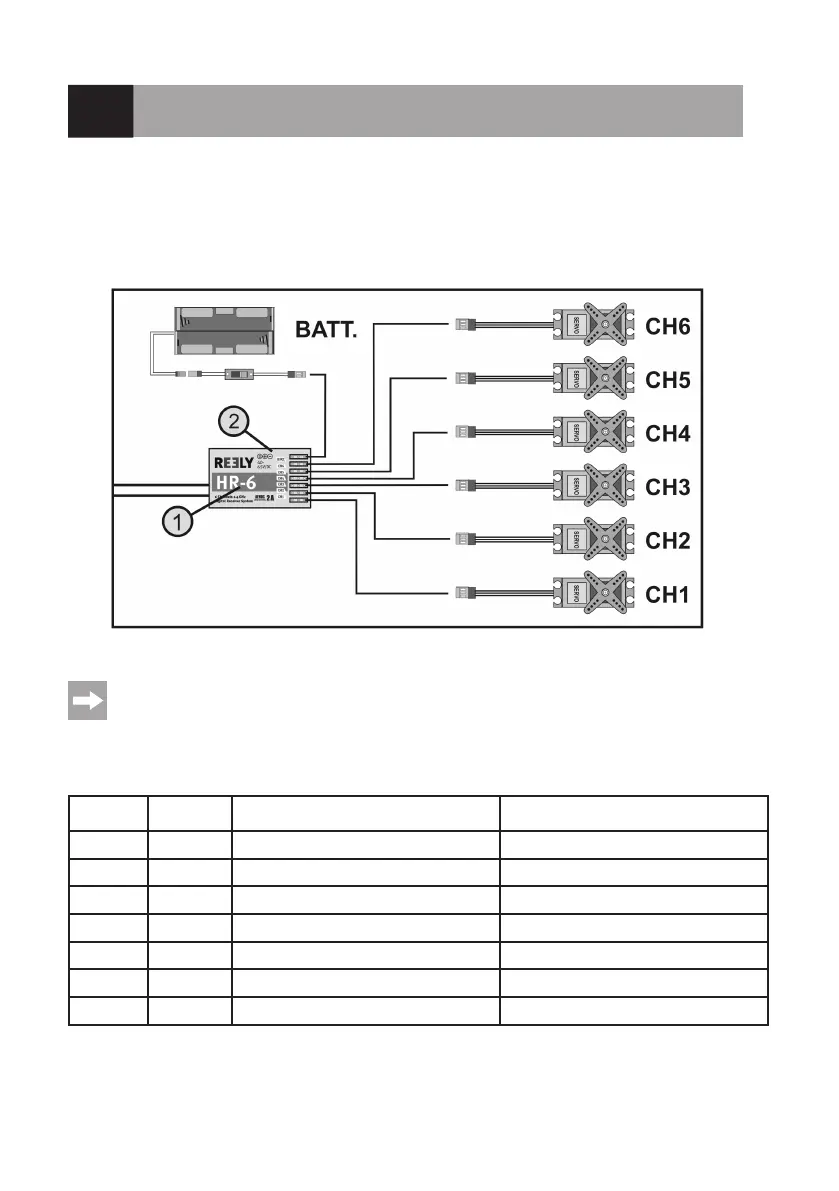

Onitsrighthandside,thereceiver(seegure8,item1)offerstheoptionofconnectingupto6servoswithJRor
Futaba plug connectors.
The receiver battery or a battery box is connected to a switch cable either on a free slot or at the top-most slot
(B/VCC).
Figure 8
When connecting servos and speed controllers, always make sure of correct polarity of the plug connectors.
The impulse line of the servos (depending on manufacturer yellow, white or orange) must be connected to
the left (inner) one of the three adjacent plug-in contacts. The plug contact for the negative line (black or
brown, depending on the manufacturer) must be connected to the right (outer) pin contact.
The receiver outputs are assigned as follows:
Channel Output Helicopter Motor model plane
1 CH1 Roll servo Aileron servo
2 CH2 Pitch servo Elevator servo
3 CH3 Throttleservoorightcontroller Throttleservoorightcontroller
4 CH4 Tail servo/gyro Rudder servo
5 CH5 Gyro sensitivity Additional channel 5
6 CH6 Pitch servo Additional channel 6
- B/VCC Battery connection* Battery connection*
