SS Programming Example
USER GUIDE
PROGRAMMING AND CONFIGURATION EXAMPLES
SMART-SENSOR
™
2004 – 2014 Reliable Controls
®
Corporation. All rights reserved.
For this example, points are referenced from the Variable worksheet from a single network
controller.

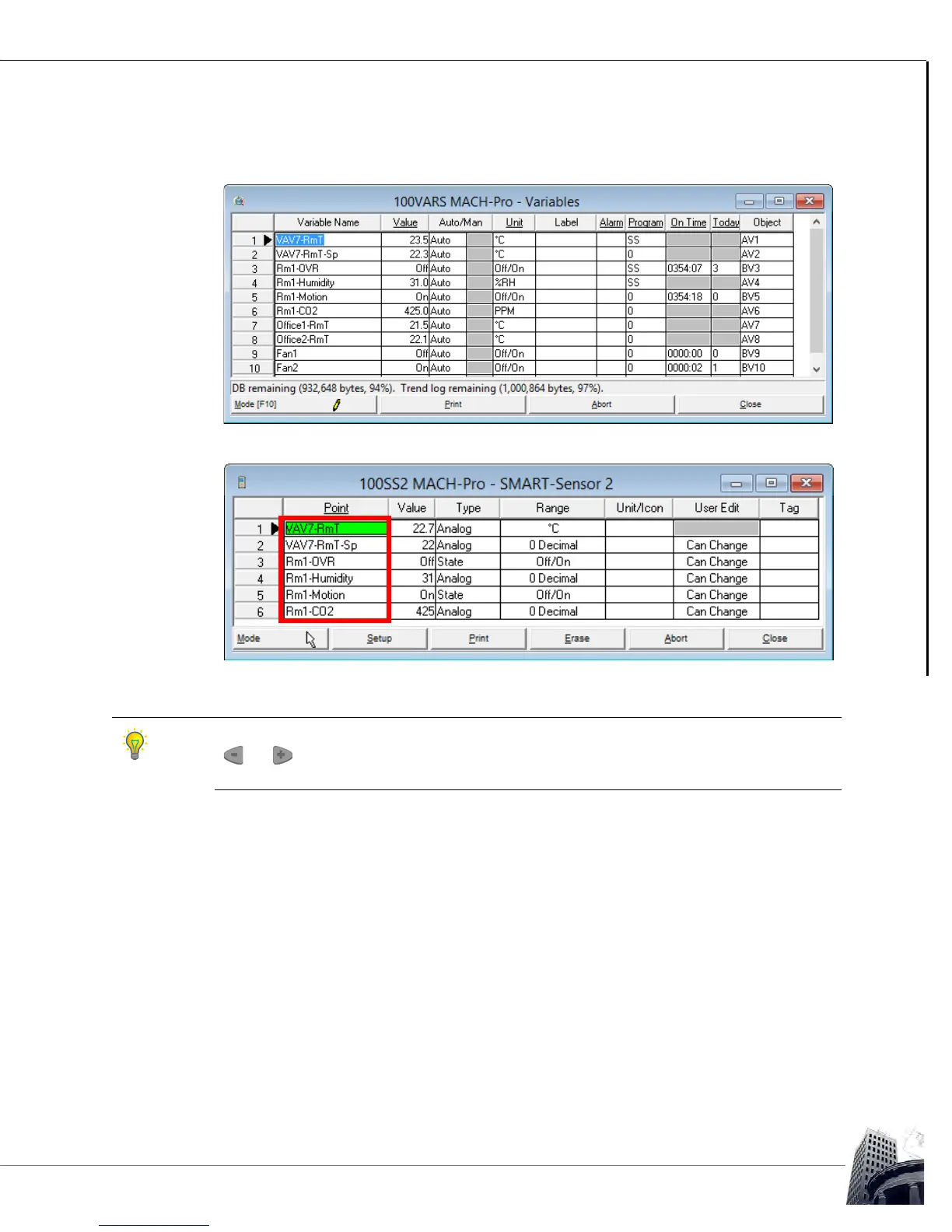

FIGURE 88: SS PROGRAMMING EXAMPLE - HOST POINT VARIABLES WORKSHEET
F
IGURE 89: SS PROGRAMMING EXAMPLE - SMART-SENSOR WORKSHEET WITH POINT REFERENCES
Remember that the point referenced in Row 2 is the quick-adjust point. Pressing either the
or buttons in Idle mode will automatically cause the quick-adjust point to be
modified.
