a) When
RESET terminal is used

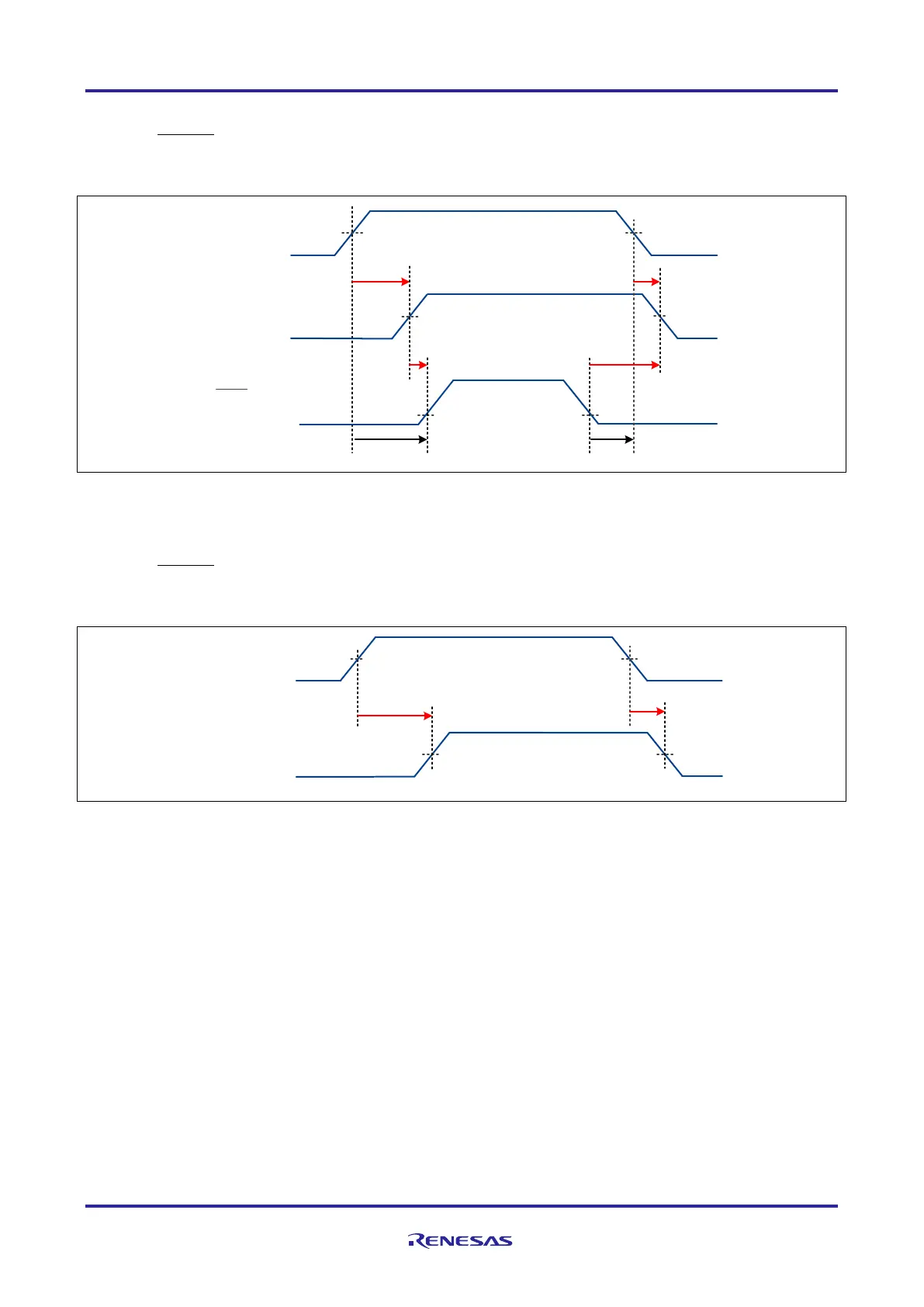

Figure 4: RH850/F1KM-S1 Power up/down timing
b) When
RESET terminal is not used
Figure 5: RH850/F1KM-S1 Power up/down timing
Note. For the spec of t
DPOR
, t
DRPD
and t
VS
, please refer to Section 47C.4.5.3, Power Up/Down Timing of the
RH850/F1KH, RH850/F1KM Hardware User’s Manual.
REGVCC/EV CC
VP OC (mi n )
A0 VRE F
3.0V
0V
Min. 0 us
RESET
Max . 0.5/tVS ms
0V
0V
VIL
t
DP OR
Min. 0 us
Min. 0 us
t
DRP D
REGVCC/EV CC
VP OC (mi n )
A0 VRE F
3.0V
0V
Min. 0 us
Max. 500us
0V
Min. -1us
Max. 0.5/tvs ms
