Renesas RH850/F1Kx Series Hardware Design Guide

RH850/F1Kx, RH850/F1K Series Hardware Design Guide
R01AN3841ED0110 Rev. 1.10 Page 72 of 108
August 8, 2019
4.2.2 RESET Input Characteristics
The RESET is passed through an internal analog noise filter to prevent erroneous resets due to spikes.
The following figure shows the timing when an external reset is performed. It explains the effect of the noise
elimination.

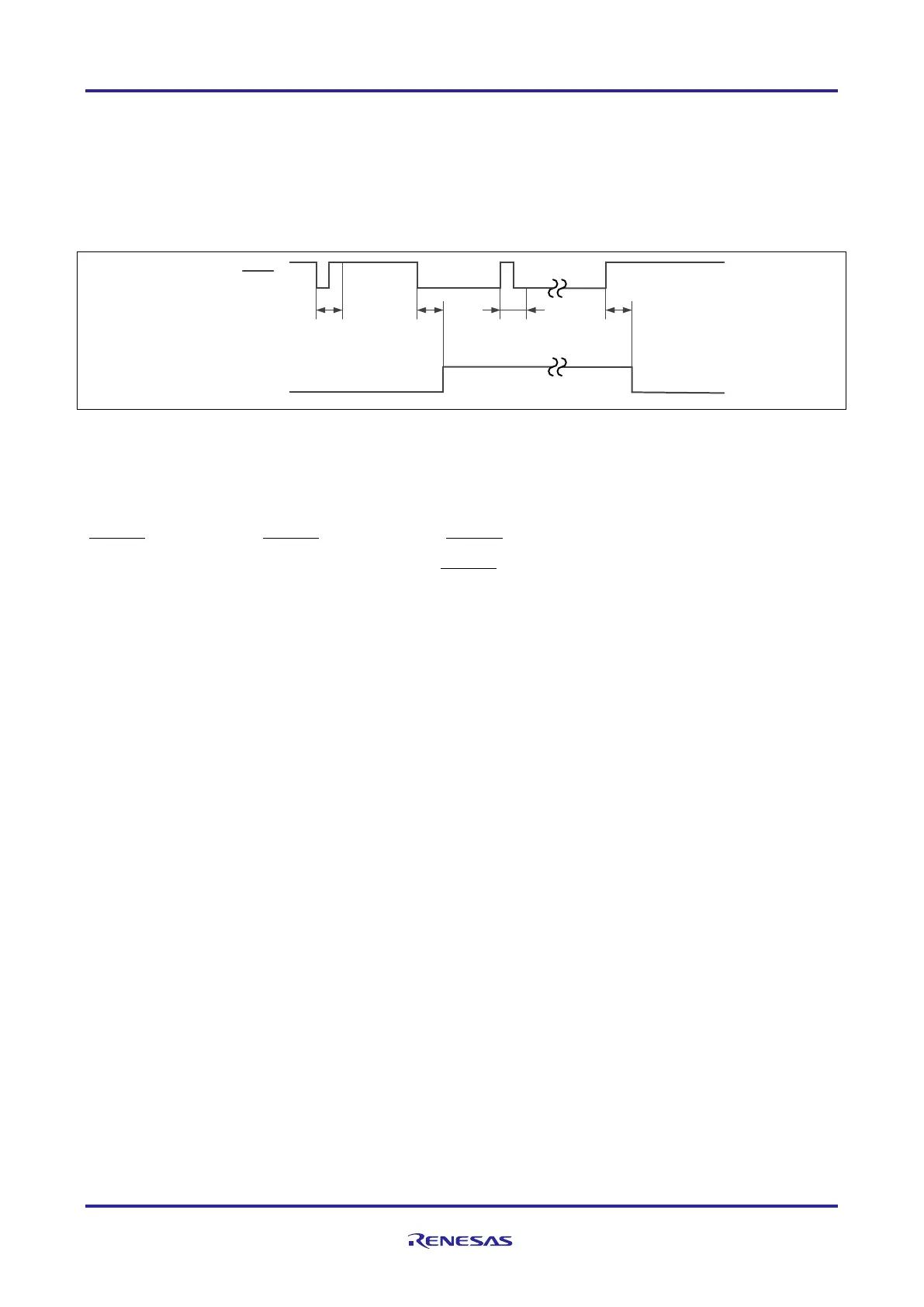

Figure 30: External RESET timing
The analog filter generates the analog delay. The filter regards pulses up to a certain width as noise and suppresses
them.
For the minimum RESET pulse width and the minimum RESET pulse rejection, please refer to Sections 47A.5.1,
RESET
Timing, 47B.5.1, RESET Timing or 47C.5.1, RESET Timing of the RH850/F1KH, RH850/F1KM
Hardware User’s Manual respectively the Section 40.12
RESET Timing of the RH850/F1K Hardware User’s Manual.
System RESET
RESET
Analog delay
Analog
delay
Analog delay
Analog
delay
