Renesas RH850/F1Kx Series Hardware Design Guide

RH850/F1Kx, RH850/F1K Series Hardware Design Guide
R01AN3841ED0110 Rev. 1.10 Page 98 of 108
August 8, 2019
8.2 Flash Programming Interface
For the programming environment PG-FPx, the following connections are supported:
• Single-wire asynchronous flash programming interface
• Two-wire asynchronous flash programming interface
• Synchronous flash programming interface
For the programming environment combination of E1/E2 emulator and RFP, the following connections are supported:
• Single-wire asynchronous flash programming interface
• Two-wire asynchronous flash programming interface
Table 71: Basic flash programming connection
Flash Programming Interface
Function
Device Pins
1-wire UART
RxD/TxD
JP0_0
2-wire UART
RxD
JP0_0
TxD
JP0_1
CSI
SI
JP0_0
SO
JP0_1
SCK
JP0_2
8.2.1 Flash Programming by PG-FPx

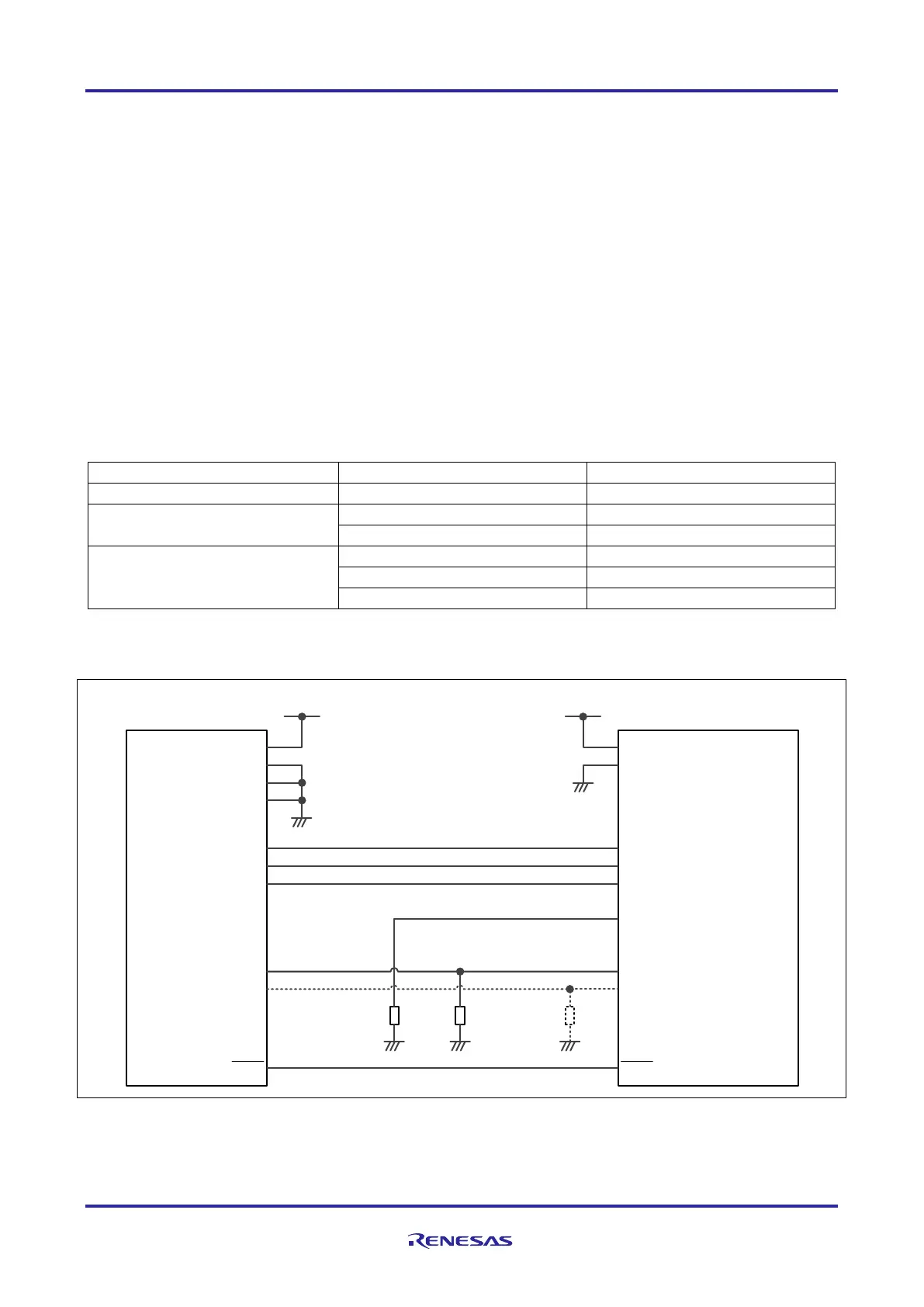

Figure 41: PG-FPx flash programming interface connection
VDD
GND
GND
GND
VDDVDD
EVCC
EVSS
RxD/TxD/SO
RxD/SI
SCK
FPM D0
FPM D1
RESET RESET
P10_8 (FLM D1)
No te
FLM D0
JP0_0 (RxD/TxD/SI)
JP0_1 (TxD/SO)
JP0_2 (SCK)
RH850/F1Kx, RH850/F1K
PG-FPx Flash Programmer
(14pin Connector)
Min.
86kΩ
1k t o 10kΩ
JP0_4
10k to 100kΩ
