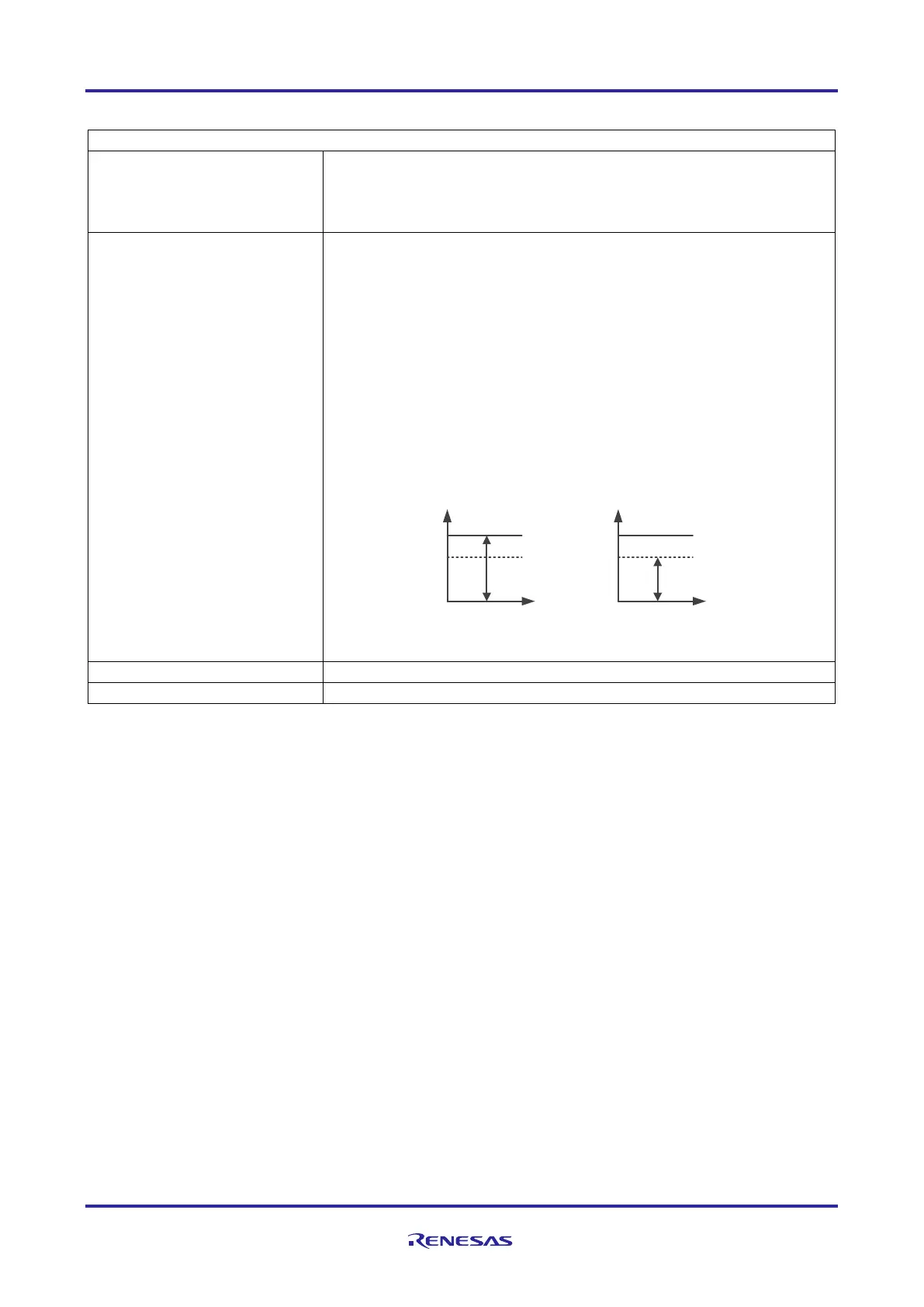

Table 50: RH850/F1K Power supply architecture with mixed supply 5V & 3.3V
Case 7 – Mixed Supply 5V & 3.3V
Condition
REGVCC = 3.3V
EVCC = 3.3V
A0VREF = 5V
A1VREF = 5V
Port Function
AP0 – Port usable with analog or digital function
P8 – Port usable with analog or digital function, analog input
voltage limited to max. 3.3V, reduced AD conversion range between 0V
to 3.3V
P9 – Port usable with analog or digital function, analog input
voltage limited to max. 3.3V, reduced AD conversion range between 0V
to 3.3V
AP1 – Port usable with analog or digital function
P18 – Port usable with analog or digital function, analog input
voltage limited to max. 3.3V, reduced AD conversion range between 0V
to 3.3V
Limitation
Analog port function limitation applies to P8, P9 and P18

Operation permitted
3FFh
0V
3.3V
5V
2A3h
0V
3.3V
5V
Note: Con ver sion r ange ex ample base d on 10-bit ADC resolution
Analog input channel on AP0,
AP1
Analog input channel on P8, P9,
P18
 Red uced AD c onversion range
