Renesas RH850/F1Kx Series Hardware Design Guide

RH850/F1Kx, RH850/F1K Series Hardware Design Guide
R01AN3841ED0110 Rev. 1.10 Page 35 of 108
August 8, 2019

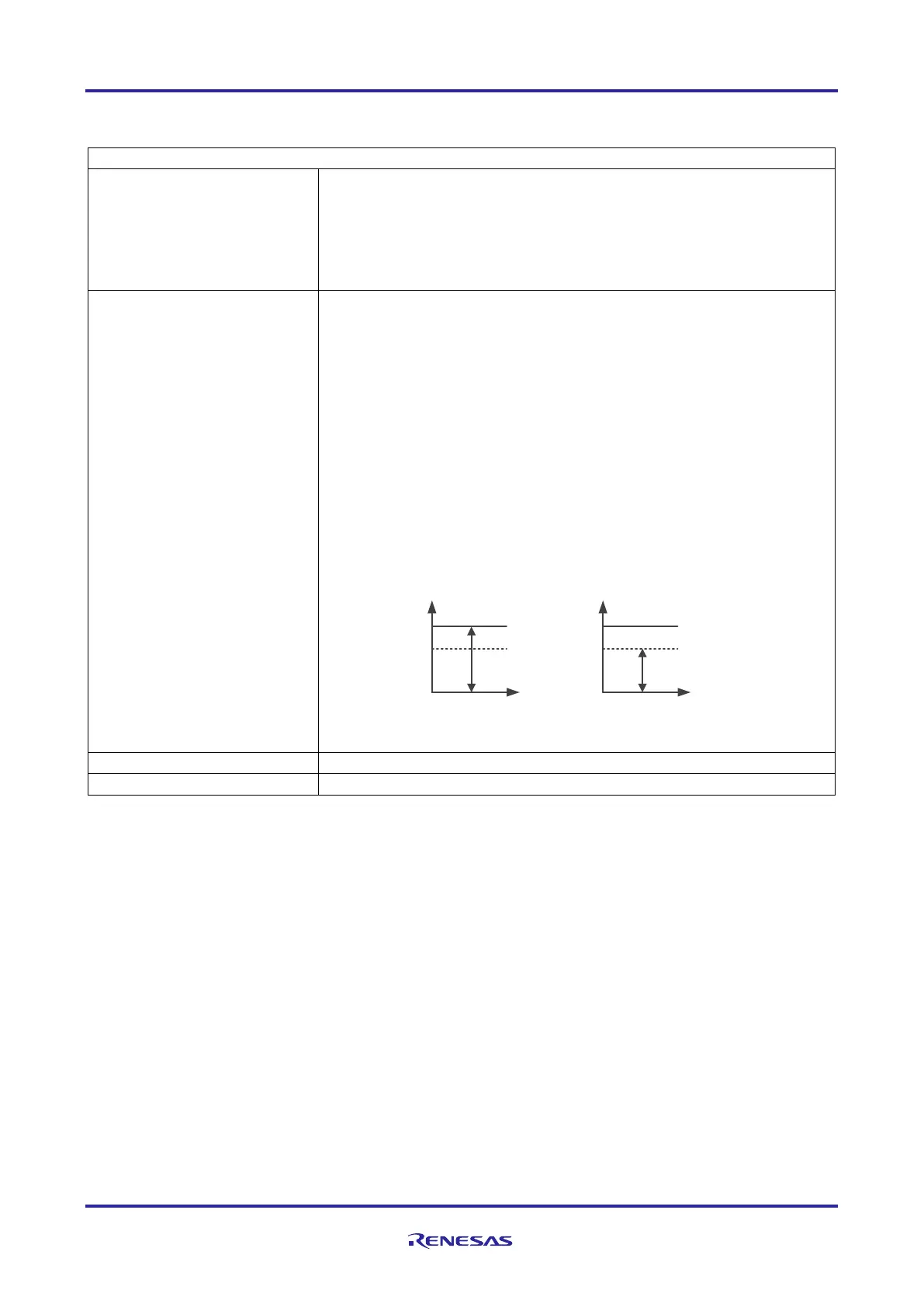

Table 33: RH850/F1KH-D8 Power supply architecture with mixed supply 5V & 3.3V
Case 8 – Mixed Supply 5V & 3.3V
Condition
REG0VCC = 5V
REG1VCC = 3.3V
EVCC = 5V
BVCC = 3.3V
A0VREF = 3.3V
A1VREF = 5V
Port Function
AP0 – Port usable with analog or digital function
P8 – Port usable with analog or digital function, analog input voltage
limited to max. 3.3V. When analog input terminal is over 3.3V, do not
include the input into an AD scan group.
P9 – Port usable with analog or digital function, analog input voltage
limited to max. 3.3V. When analog input terminal is over 3.3V, do not
include the input into an AD scan group.
AP1 – Port usable with analog or digital function
P18 – Port usable with analog or digital function, analog input voltage
limited to max. 3.3V, reduced AD conversion range between 0V to 3.3V
P19 – Port usable with analog or digital function, analog input voltage
limited to max. 3.3V, reduced AD conversion range between 0V to 3.3V
Limitation
Analog port function limitation applies to P8, P9, P18 and P19

Operation permitted
3FFh
0V
3.3V
5V
2A3h
0V
3.3V
5V
Note: Con ver sion r ange ex ampl e base d on 10-bit ADC resolution
Analog input channel on AP1
Analog input channel on P18 and P19
 Red uced AD c onversion range
Available
voltage range
Available
voltage range
