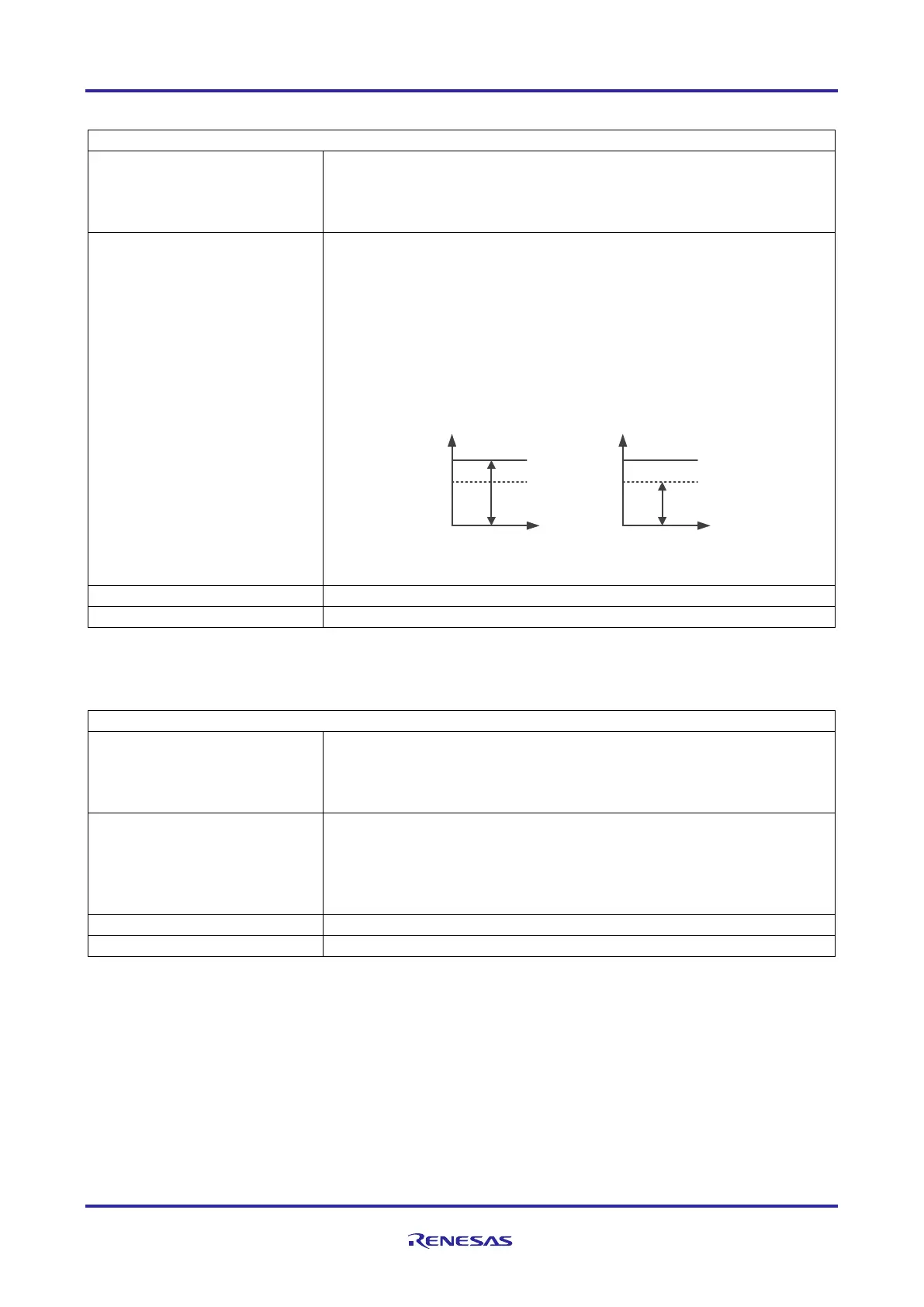

Table 52: RH850/F1K Power supply architecture with mixed supply 5V & 3.3V
Case 9 – Mixed Supply 5V & 3.3V
Condition
REGVCC = 3.3V
EVCC = 3.3V
A0VREF = 3.3V
A1VREF = 5V
Port Function
AP0 – Port usable with analog or digital function
P8 – Port usable with analog or digital function
P9 – Port usable with analog or digital function
AP1 – Port usable with analog or digital function
P18 – Port usable with analog or digital function, analog input
voltage limited to max. 3.3V, reduced AD conversion range between 0V
to 3.3V
Limitation
Analog port function limitation applies to P18

Operation permitted
Table 53: RH850/F1K Power supply architecture with single supply 3.3V
Case 10 – Single Supply 3.3V
Condition
REGVCC = 3.3V
EVCC = 3.3V
A0VREF = 3.3V
A1VREF = 3.3V
Port Function
AP0 – Port usable with analog or digital function
P8 – Port usable with analog or digital function
P9 – Port usable with analog or digital function
AP1 – Port usable with analog or digital function
P18 – Port usable with analog or digital function
Limitation
No limitation applies

Operation permitted
3FFh
0V
3.3V
5V
2A3h
0V
3.3V
5V
Note: Con ver sion r ange ex ampl e base d on 10-bit ADC resolution
Analog input channel on AP0,
AP1
Analog input channel on P18
 Red uced AD c onversion range
