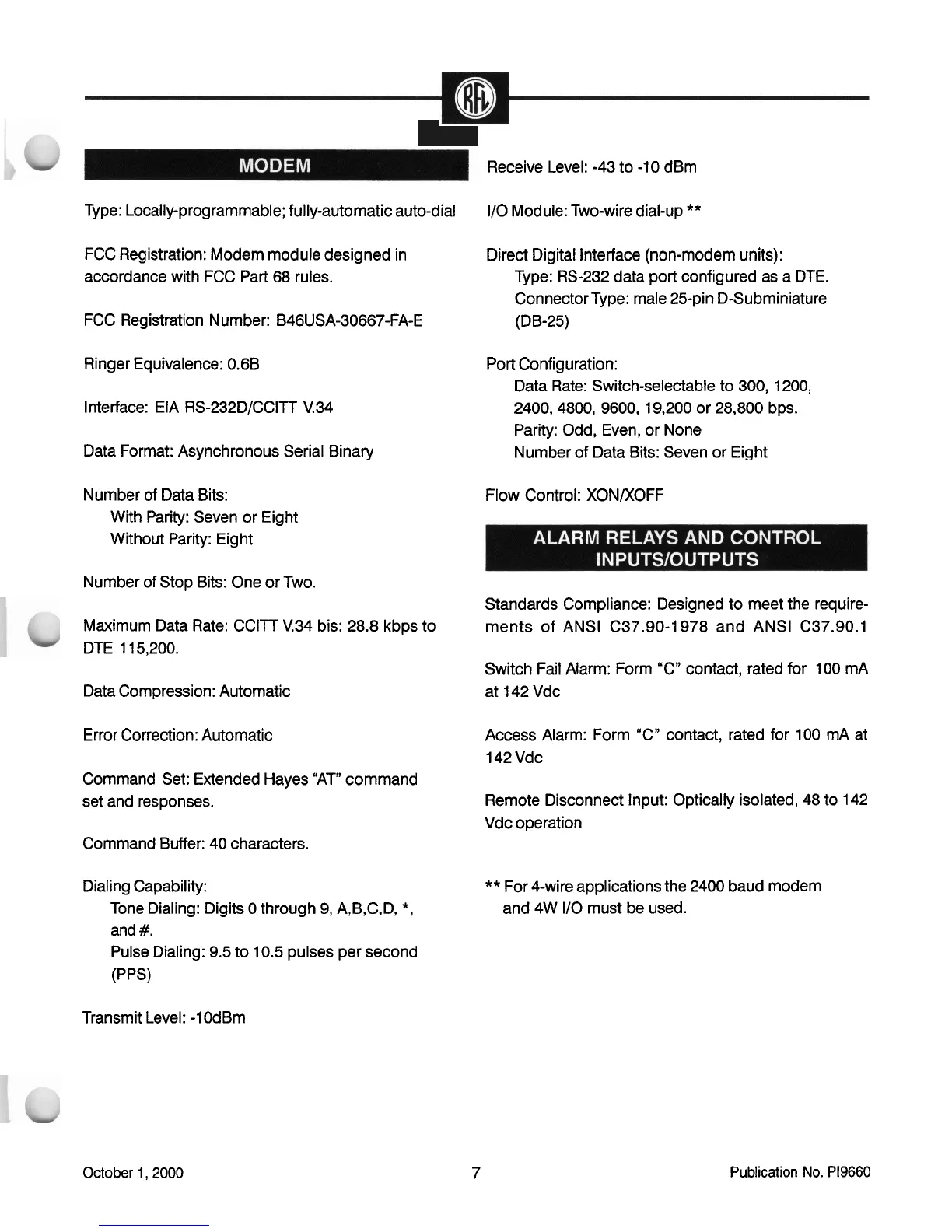

Type: Locally-programmable; fully-automatic auto-dial
FCC Registration: Modem module designed in
accordance with FCC Part 68 rules.
FCC Registration Number: B46USA-30667-FA-E
Ringer Equivalence: 0.6B
Interface: EIA RS-232DlCCITT V.34
Data Format: Asynchronous Serial Binary
Number of Data Bits:
With Parity: Seven or Eight
Without Parity: Eight
Number of Stop Bits: One or Two.
Maximum Data Rate: CCITT V.34 bis: 28.8 kbps to
DTE 1 15,200.
Data Compression: Automatic
Error Correction: Automatic
Command Set: Extended Hayes "AT" command
set and responses.
Command Buffer: 40 characters.
Dialing Capability:
Tone Dialing: Digits 0 through 9, A,B,C,D,
*,
and
#.
Pulse Dialing: 9.5 to 10.5 pulses per second
(PPS)
Transmit Level: -1 0dBm
Receive Level: -43 to -1 0 dBm
110 Module: Two-wire dial-up
**
Direct Digital Interface (non-modem units):
Type: RS-232 data port configured as a DTE.
Connector Type: male 25-pin D-Subminiature
(DB-25)
Port Configuration:
Data Rate: Switch-selectable to 300, 1200,
2400,4800, 9600, 19,200 or 28,800 bps.
Parity: Odd, Even, or None
Number of Data Bits: Seven or Eight
Flow Control: XONIXOFF
Standards Compliance: Designed to meet the require-
ments of ANSI
C37.90-1978 and ANSI C37.90.1
Switch Fail Alarm: Form "Cn contact, rated for 100 mA
at 142 Vdc
Access Alarm: Form "C" contact, rated for 100 mA at
142 Vdc
Remote Disconnect Input: Optically isolated, 48 to 142
Vdc operation
**
For 4-wire applications the 2400 baud modem
and 4W 110 must be used.
October
1,2000
7
Publication
No. PI9660
