RFL 9660
RFL Electronics Inc.
April 24, 2007 14-68
(973) 334-3100

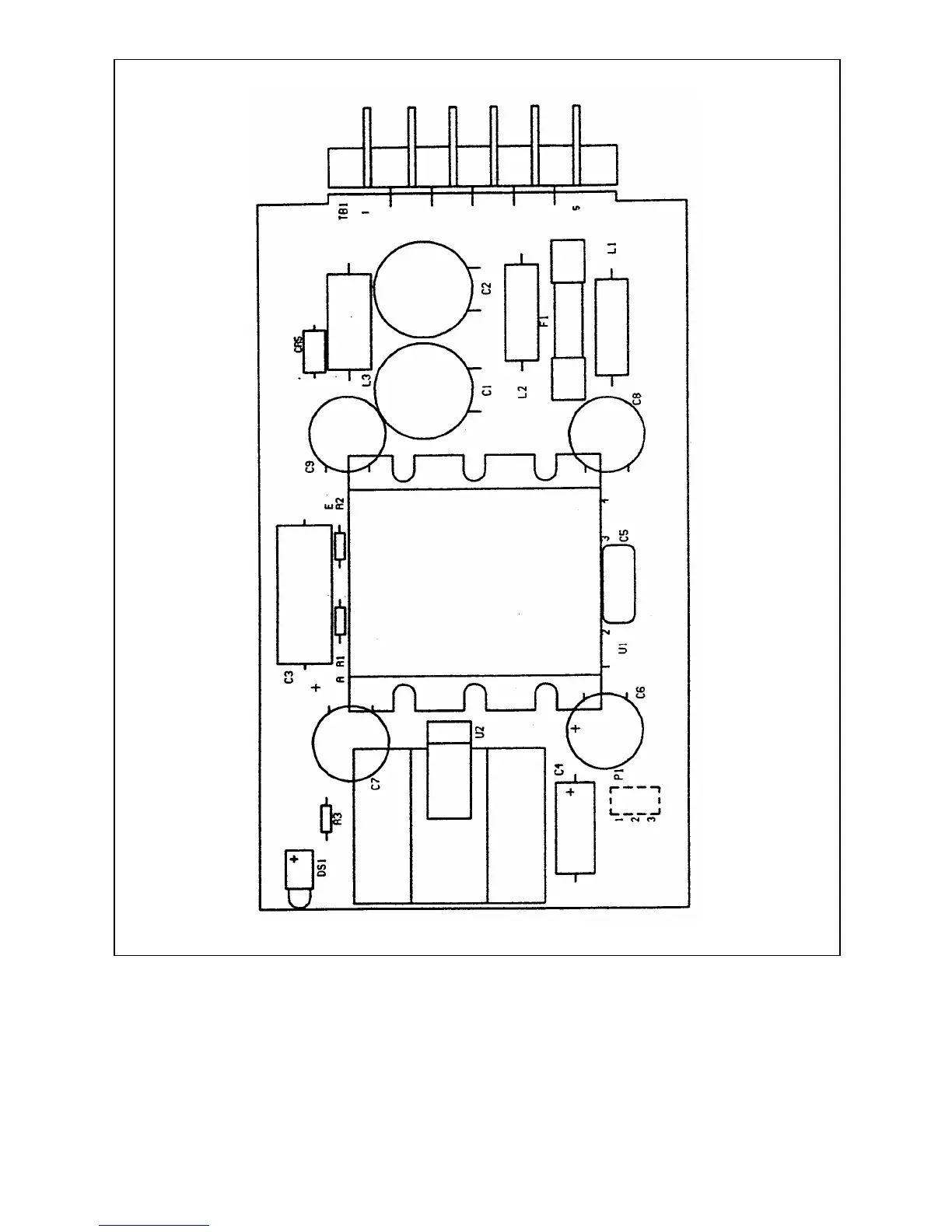

Figure 14-28. Component locator drawing, fiber optic remote module pow
er supply board
(Assembly
No. 104495-1, -2, -3; Draw
ing No. D-104498, Rev. B)
236
238
