2.5.6 FIBER OPTIC REMOTE MOUNTING DIMENSIONS
The 9660 fiber optic remote outline drawing and mounting dimensions are shown in Figure 2-8.

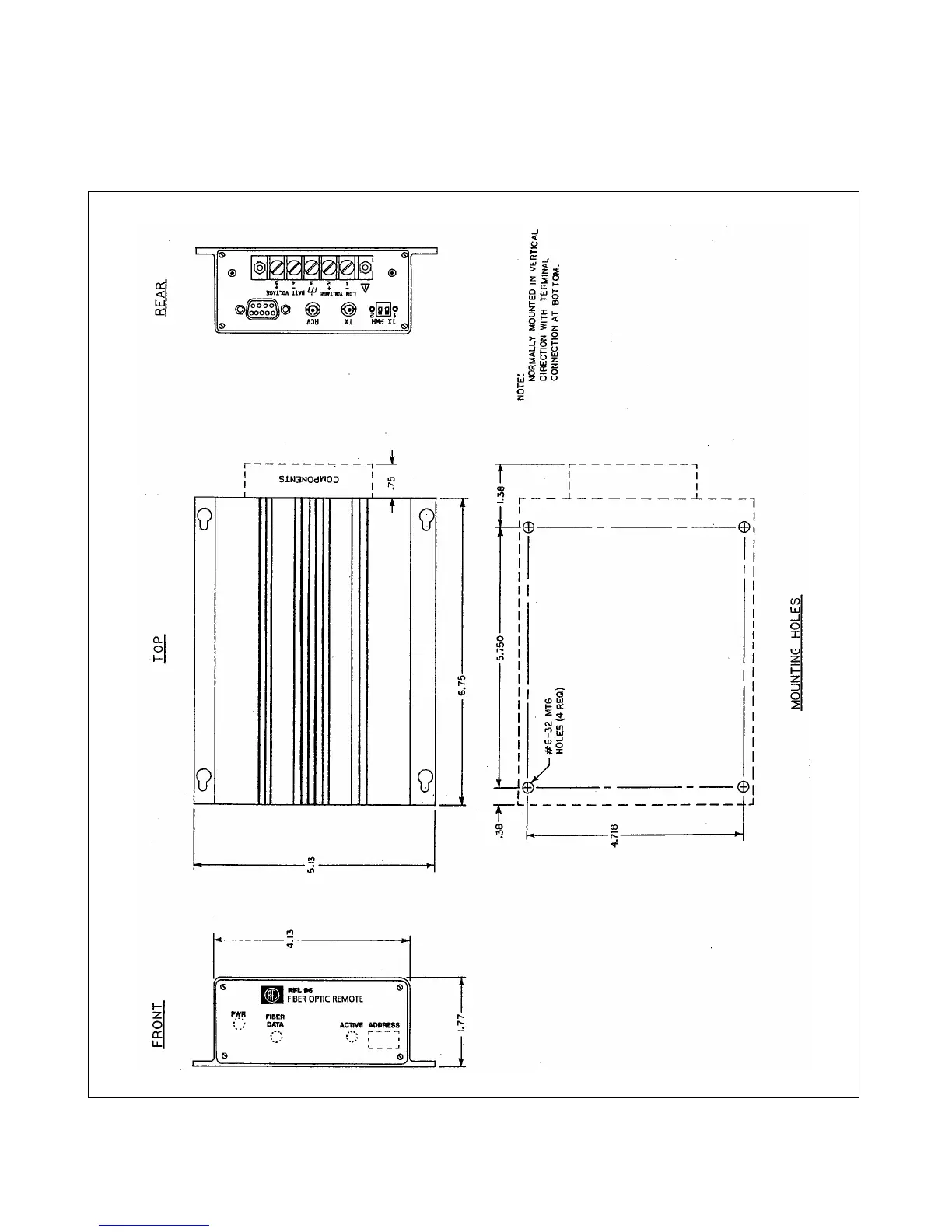

Figure 2-8. Fiber optic remote mounting dimensions
