RFL Electronics RFL 9660 - Component Locator Drawings, DC-Input Power Supply Modules for RFL 9660 Digital Switch

RFL 9660 RFL Electronics Inc.
April 24, 2007 14-25 (973) 334-3100
b. Output converter board (Drawing No. D-103258, Rev A).
NOTE: COMPONENT VALUES SHOWN ABOVE ARE FOR 48-VOLT SUPPLY; VALUES MAY
BE DIFFERENT ON 24-VOLT OR 125-VOLT SUPPLIES.
a. Input converter board (Drawing No. D-103253, Rev A).

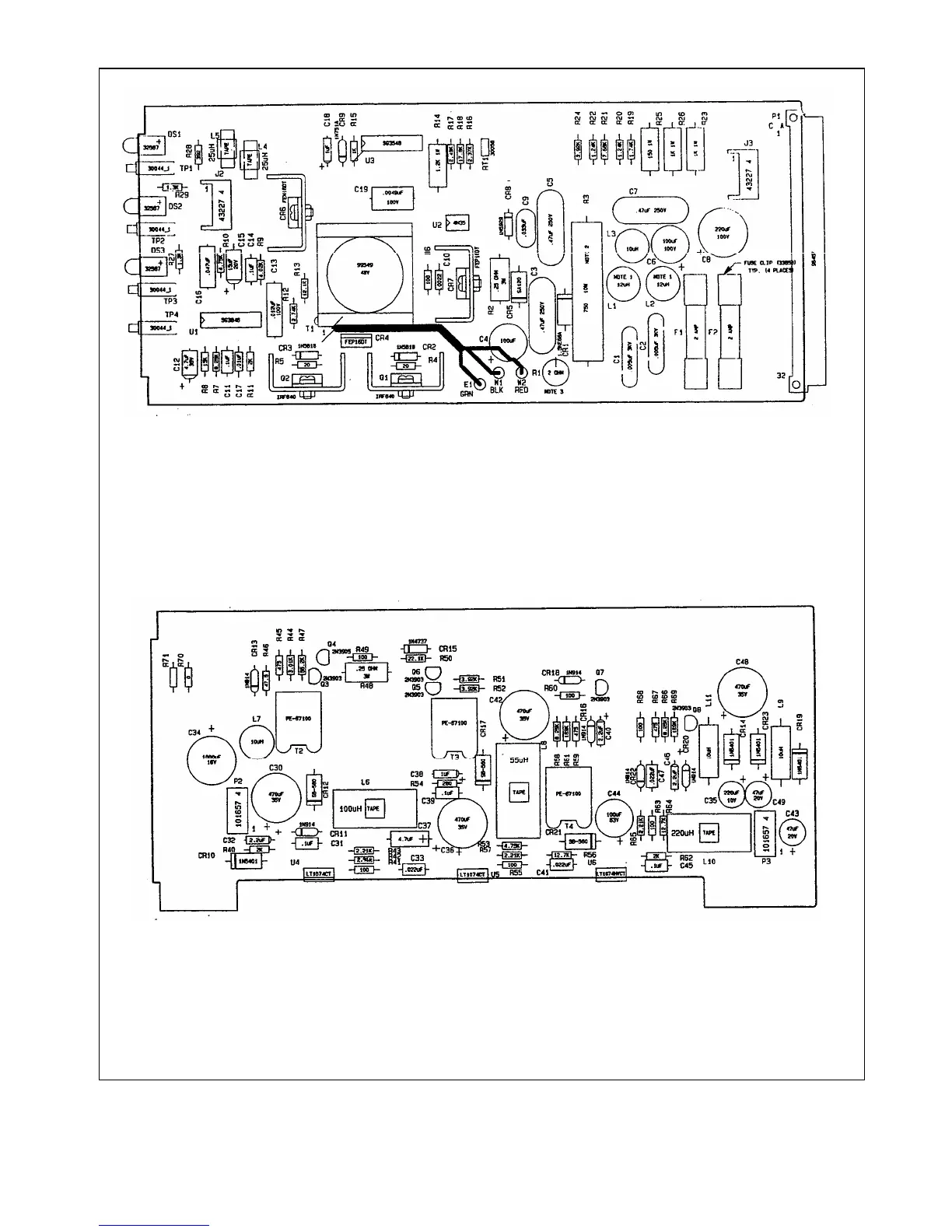

Figure 14-9 Component locator drawing, dc-input power supply modules for RFL 9660 Digital Switch
