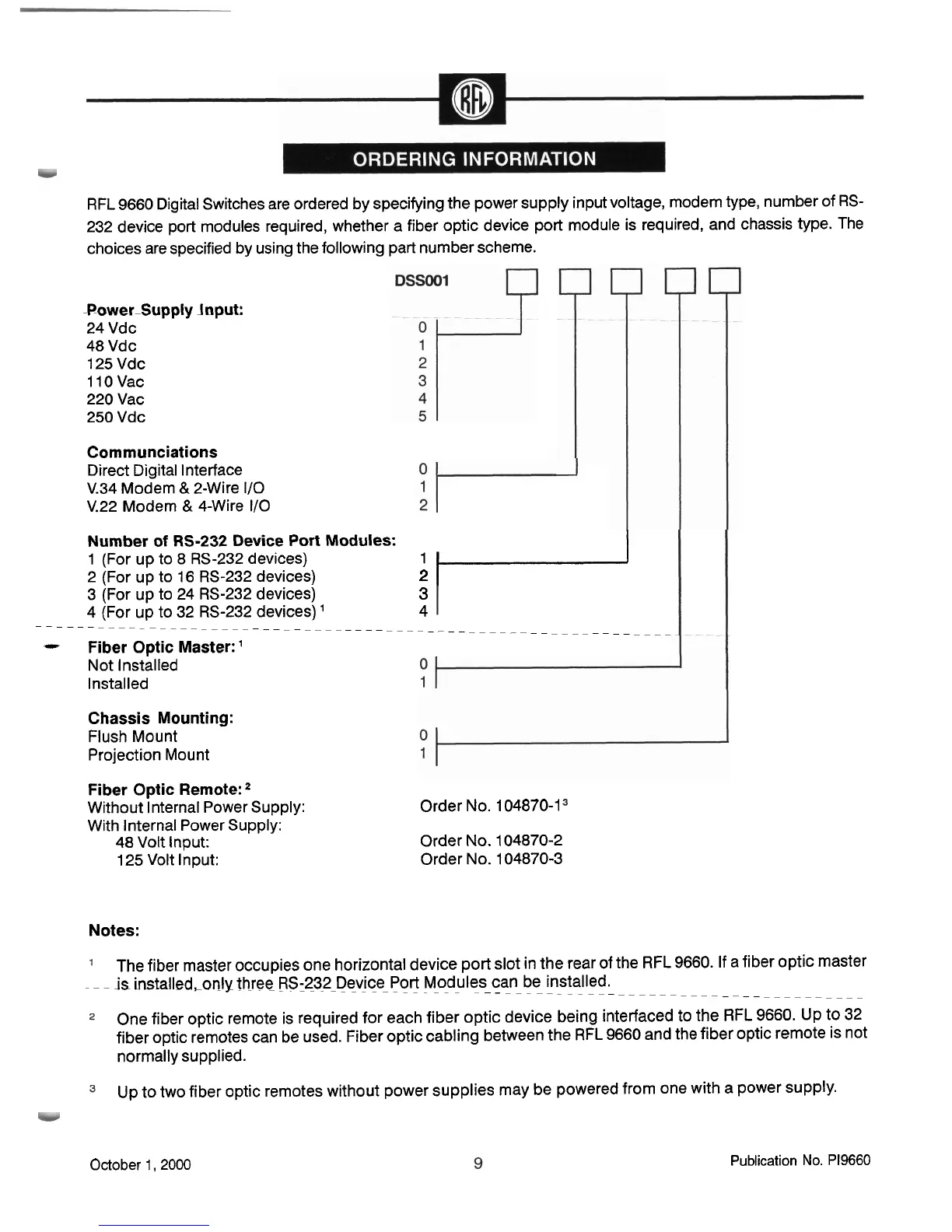

RFL Electronics RFL 9660 - ORDERING INFORMATION; Power Supply Input; Number of RS-232 Device Port Modules; Fiber Optic Master

RFL 9660 Digital Switches are ordered by specifying the power supply input voltage, modem type, number of RS-
232 device port modules required, whether a fiber optic device port module is required, and chassis type. The
choices are specified by using the following part number scheme.
Power-Supply _Input:
24 Vdc
48 Vdc
125 Vdc
110
Vac
220 Vac
250 Vdc
Communciations
Direct Digital Interface
V.34 Modem
& 2-Wire I10
V.22 Modem & 4-Wire 110
Number of RS-232 Device Port Modules:
1 (For up to 8 RS-232 devices) 1 I
2 (For up to 16 RS-232 devices)
2
3 (For up to 24 RS-232 devices) 3
4 (For up to 32 RS-232 devices) '
-----
4
----------------
- - - - - - - - -
........................
- - - - - - - -
- Fiber Optic Master: '
Not Installed
Installed
Chassis Mounting:
Flush Mount
Projection Mount
Fiber Optic Remote:
Without Internal Power Supply:
With Internal Power Supply:
48 Volt Input:
125 Volt Input:
Order No. 104870-1
Order No. 104870-2
Order No. 104870-3
Notes:
The fiber master occupies one horizontal device port slot in the rear of the RFL 9660. If a fiber optic master
- - - is installed,-only th-ree RS:=DeqePort - - - Modules - - - can be installed.
-- - -- --- - - - -
---------------- - - - - - - - - -
One fiber optic remote is required for each fiber optic device being interfaced to the RFL 9660. Up to 32
fiber optic
remotes can be used. Fiber optic cabling between the RFL 9660 and the fiber optic remote is not
normally supplied.
Up to two fiber optic remotes without power supplies may be powered from one with a power supply.
October 1, 2000
Publication No. PI9660
