Ricoh Aficio MP C3001 Service Manual

Fax Unit (D545)
D545 6 SM

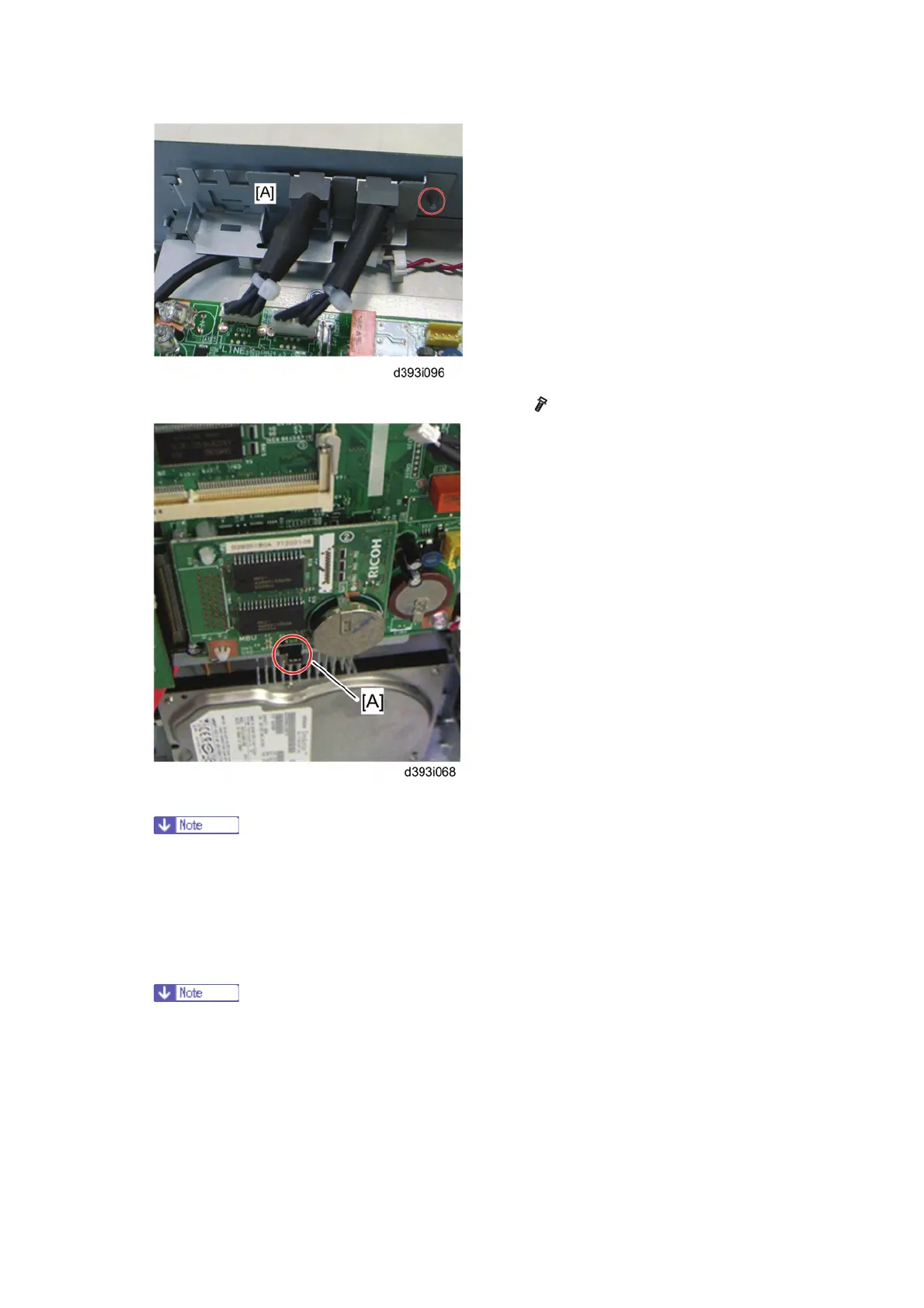

11. Attach the modular bracket [A] to the controller box (
x 1).
12. Switch the MBU battery jumper switch [A] to "ON" position.
 Make sure that the MBU board is firmly connected to the FCU.
13. Reinstall the controller box.
14. Attach the handset support bracket and handset bracket to the copier, and then connect
the handset cord with the ferrite core to the "TEL" jack if you install the handset to the
machine.
 For details, refer to the "Hand Set Installation" in the Service Manual for the Fax
Unit (D545).
