Exterior Covers and Operation Panel
D115/D116 4-4 SM
4.3.2 COPY TRAY
Make sure that the cables under the copy tray are in place before reassembling the
copier. If these cables are caught between the copy tray and the inner cover, they may
be severely damaged.

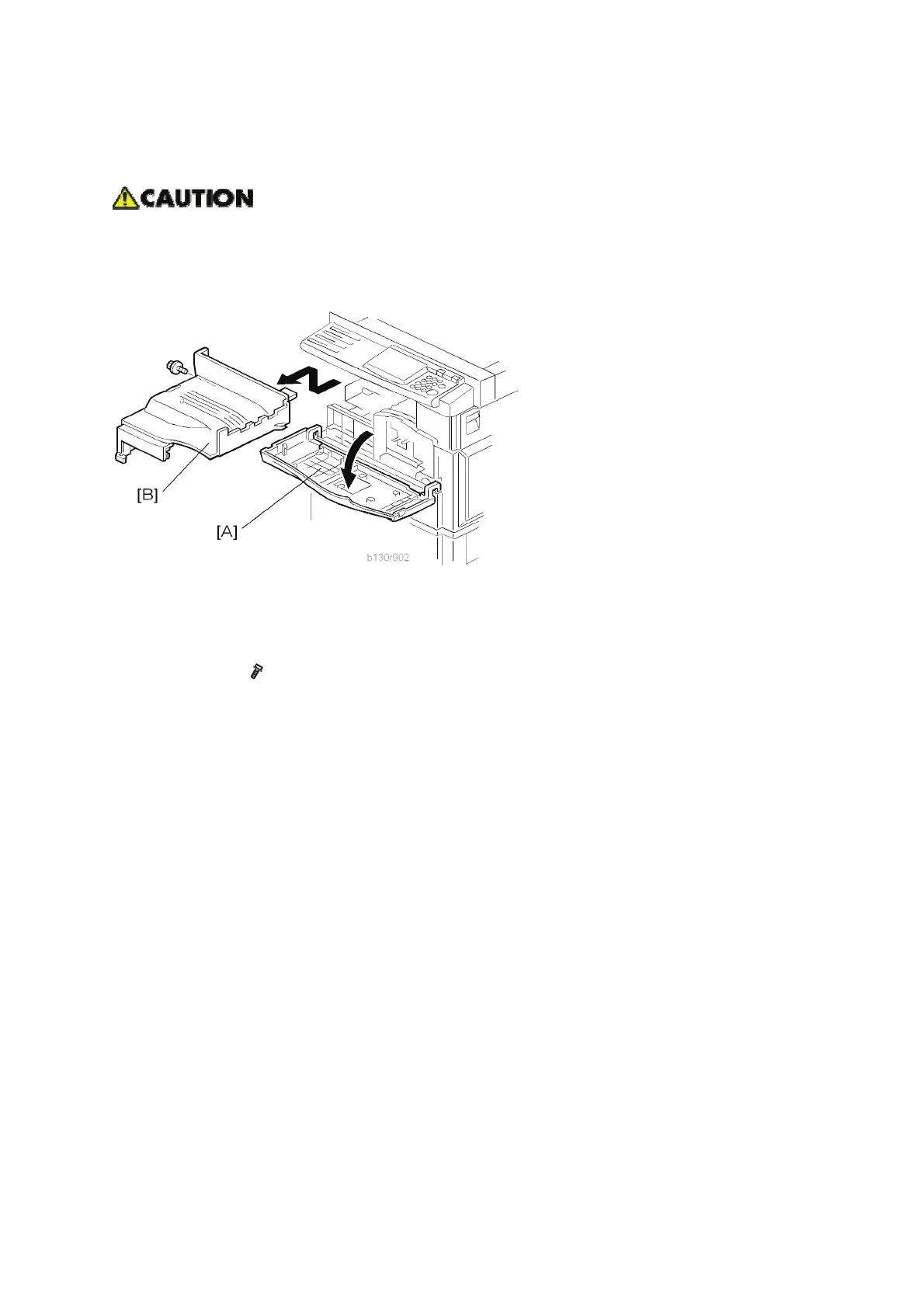

1. Open the front door [A].
2. Copy tray [B] (
x1)
Reassembling:
There are several cables under the front end of the copy tray. To set these cables in place,
gently pull these cables to the left-hand side (toward the PSU) and hold them there as you
attach the copy tray.
