Adjusting Copy Image Area
D115/D116 4-66 SM
4.14.3 DF IMAGE ADJUSTMENT
Perform the adjustment procedure in this section only when the ARDF is installed on
the copier.

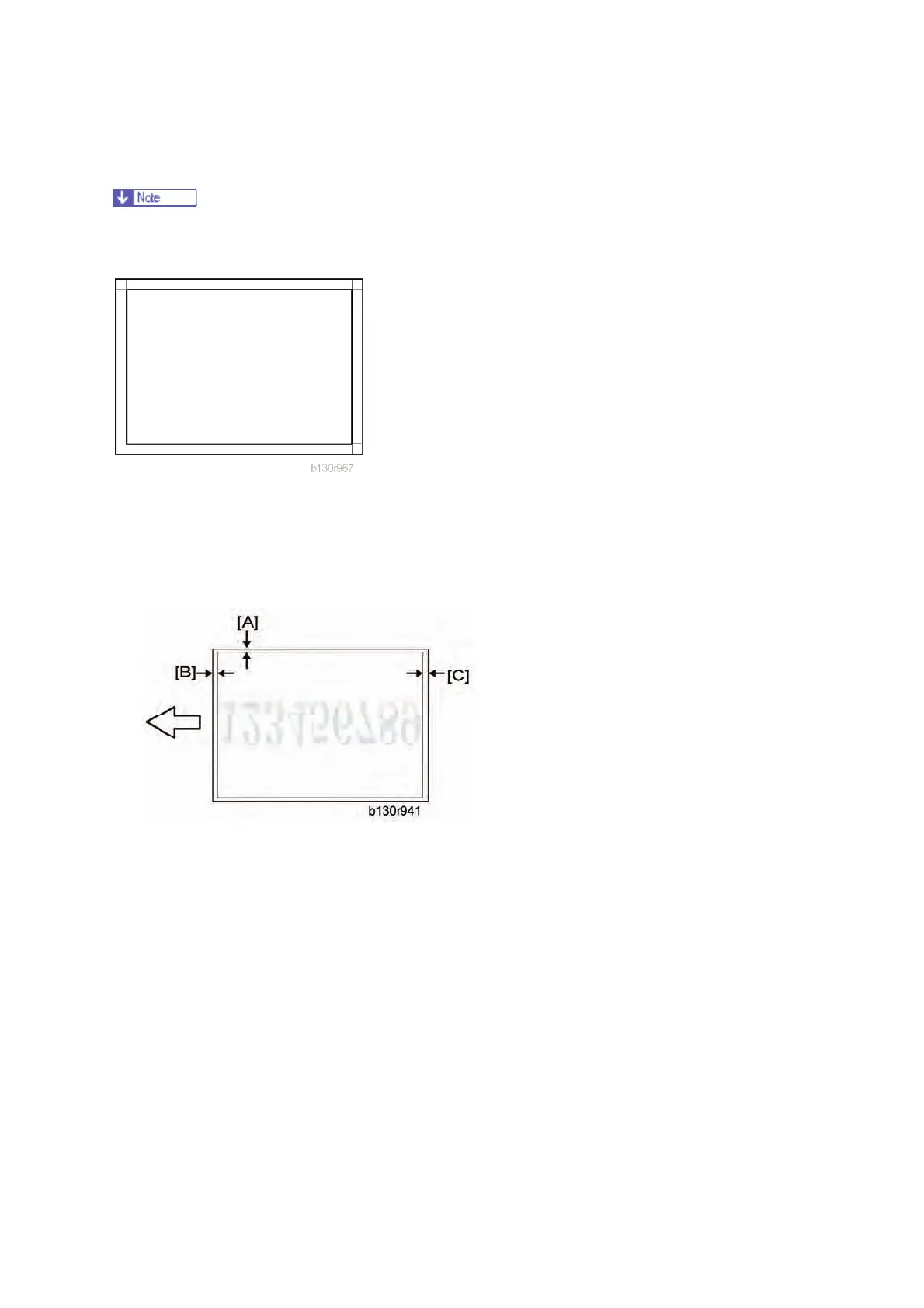

1. Make a temporary test chart as shown in the above diagram. Use the "A4/8.5 x 11" paper to
make it.
2. Place the temporary test chart on the ARDF.
3. Make a copy.
4. Measure the distance between the side edge of the image area and the side edge of the
paper [A].
(The diagram shows the paper on the copy tray. Note that the paper is output with the face
down.)
5. Adjust the side-to-side registration (S to S/Front Regist: SP6-006-001, S to S/Rear Regist:
SP6-006-004). The image area moves to the rear side of the copier when you specify a
larger value.
6. Measure the distance between the leading of the image area and the leading edge of the
paper [B].
7. Adjust the leading edge registration (Leading Regist: SP6-006-002). The image area
moves to the right side of the copier when you specify a larger value.
8. Measure the distance between the trailing edge of the image area and the trailing edge of
