4.13.7 DF REGISTRATION AND DF EXIT SENSOR
1. Open the DF left cover.
2. Original feed unit (
p.4-54)
3. DF feed clutch (
p.4-59)
4. Original feed-in guide plate (
p.4-55 "Original Set and DF Inverter Sensor")
5. DF feed motor (
p.4-58)
6. DF transport motor (
p.4-58)

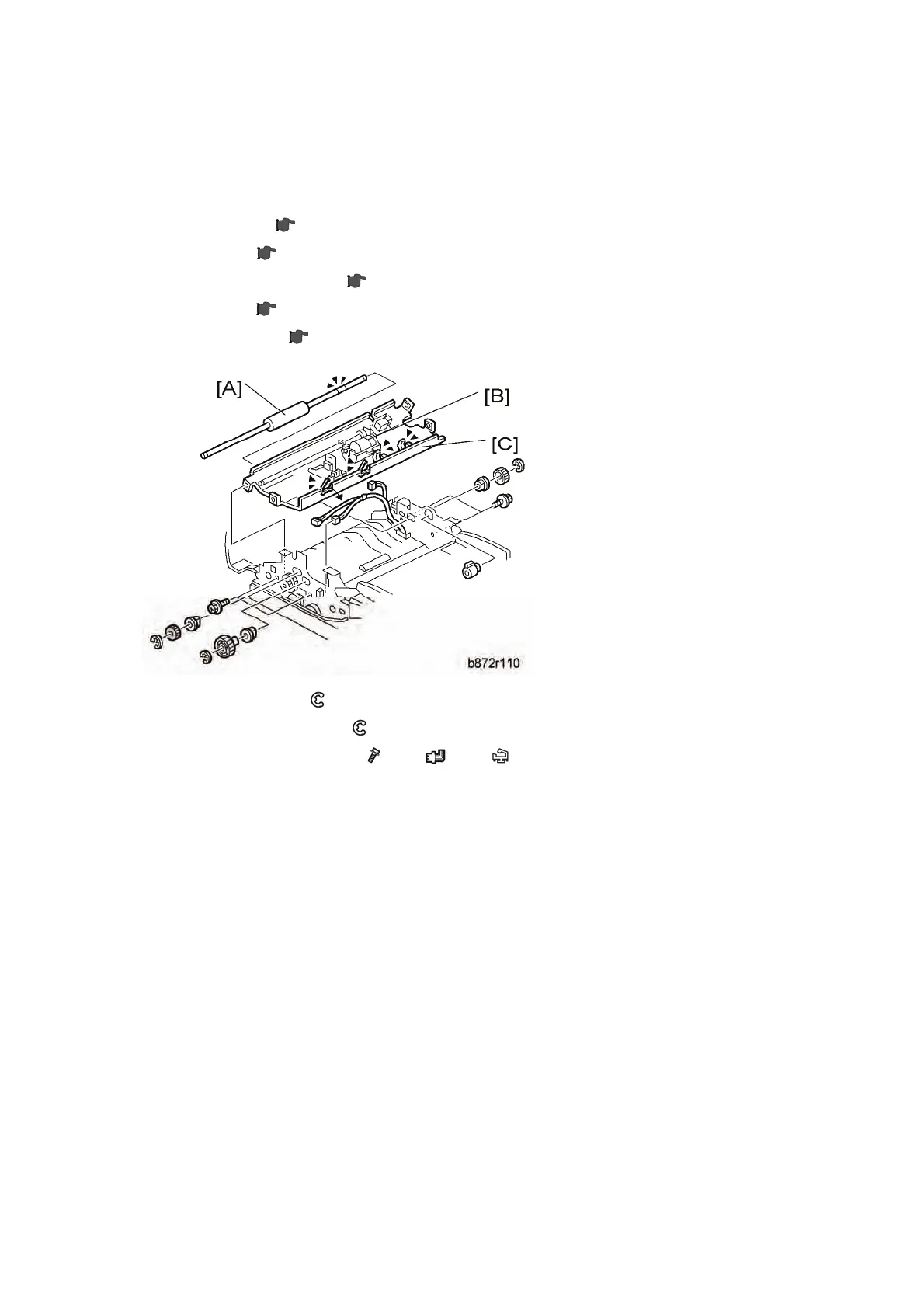

7. DF transport roller [A] ( x 2, gear x 2, bushing x 2)
8. DF separation roller unit [B] (
x 2, gear x 1, bushing x 2)
9. Inverter upper guide plate [C] (
x 4, x 3, x 4)
