Ricoh Aficio MP201SPF Service Manual

Scanner Unit
D115/D116 4-10 SM

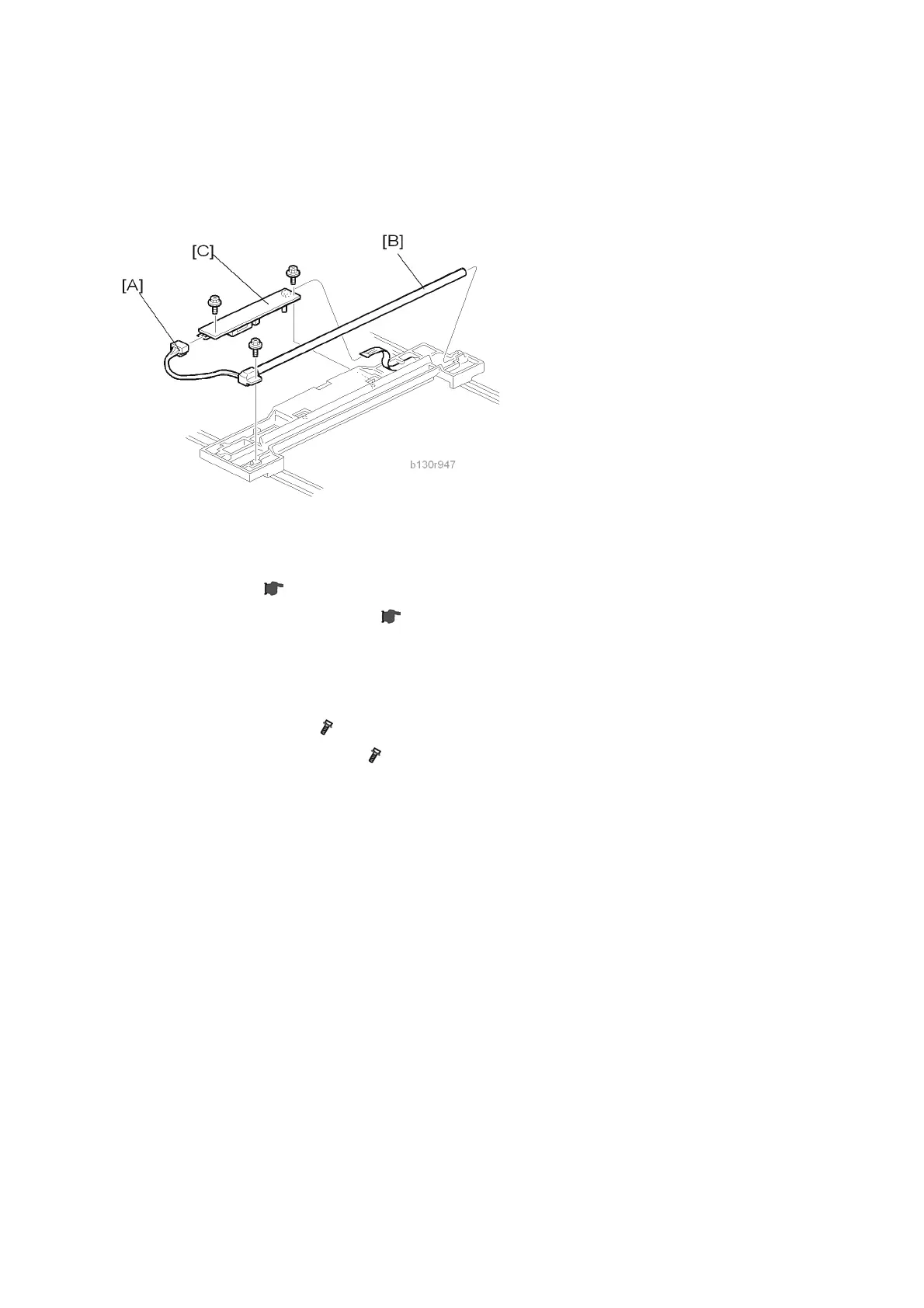

4.4.3 EXPOSURE LAMP, LAMP STABILIZER BOARD
Do not fold the exposure cable on the exposure lamp.
1. Exposure glass ( p.4-8)
2. Front left cover, operation panel (
p.4-5 "Operation Panel and Upper Covers")
3. Slide the first scanner to a position where the lamp and scanner are clear of the metal lids.
4. Disconnect the lamp connector [A].
5. Remove either or both of the following:
 Exposure lamp [B] (
x 1)
 Lamp stabilizer board [C] (
x 2, 1 flat cable)
