Ricoh Aficio MP201SPF Service Manual

Paper Tray Unit Heater
SM 2-17 D115/D116
Installation
2.5.2 INSTALLATION PROCEDURE
 Unplug the main machine's power cord before starting the following procedure.
1. Remove the paper tray unit from the copier if it is already installed.
2. Remove the paper trays from the copier and from the paper tray unit.

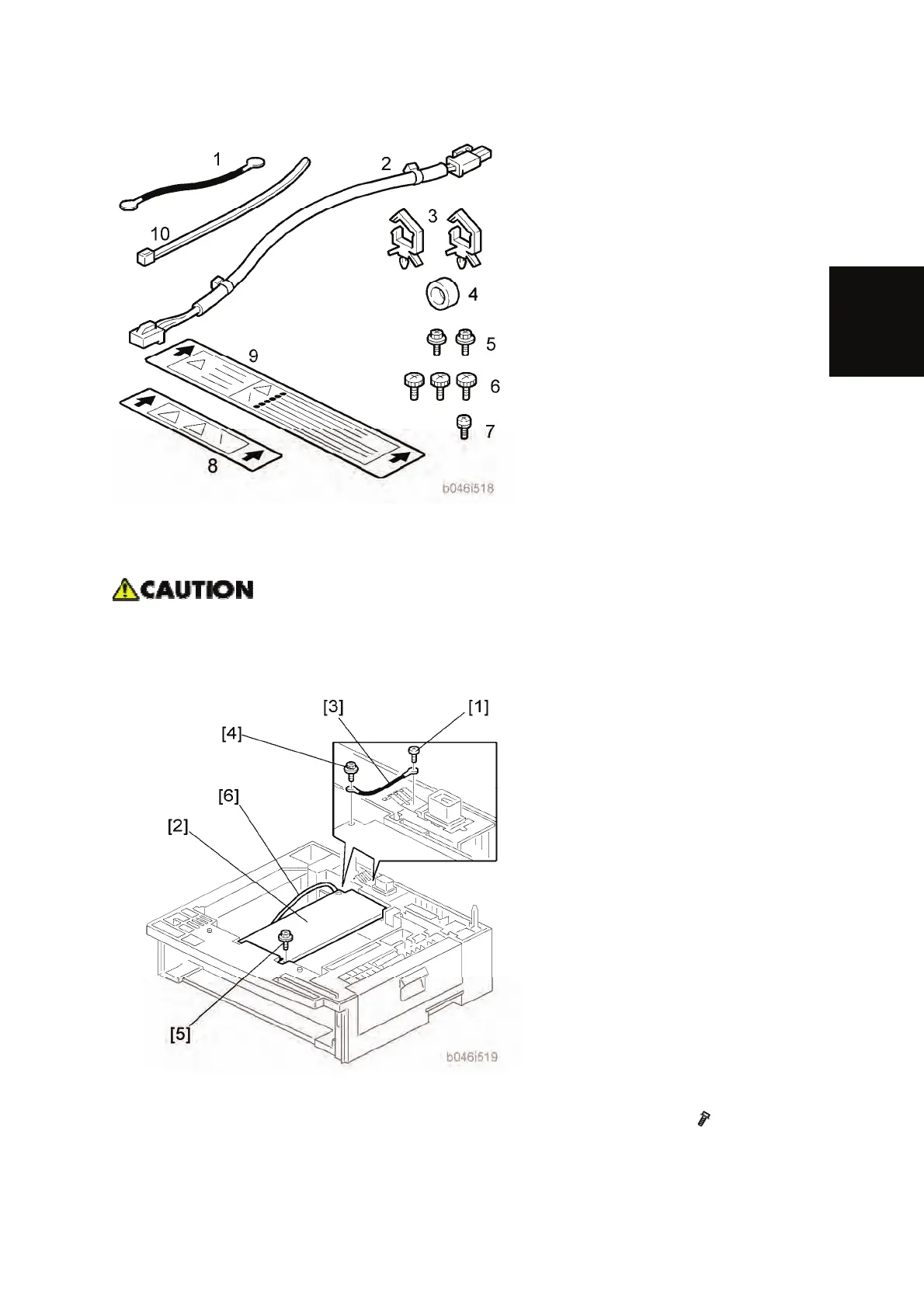

3. Remove the ground screw [1] at the rear of the paper tray unit.
4. Fasten the heater [2] and the supplied ground wire [3] to the paper tray unit ( x 3). Note
that [1] is the ground screw you removed in the previous step and [4] and [5] are the two
