Ricoh Aficio MP201SPF Service Manual

Adjusting Copy Image Area
D115/D116 4-64 SM
SP Specification
SP4-010-001 (LE Scan Regist) 0 ± 2 mm
5. Measure the distance between the side edge of the image area and the side edge of the
paper [B].
6. Adjust the side-to-side registration (SP4-011-001).
SP Specification
SP4-011-001 (S-to-S Scan Regist) 0 ± 2 mm
Adjusting Magnification
1. Place the test chart on the exposure glass. Make sure the test chart is aligned with the rear
and left scales on the exposure glass.
2. Make a copy.
3. Compare the copy with the original.

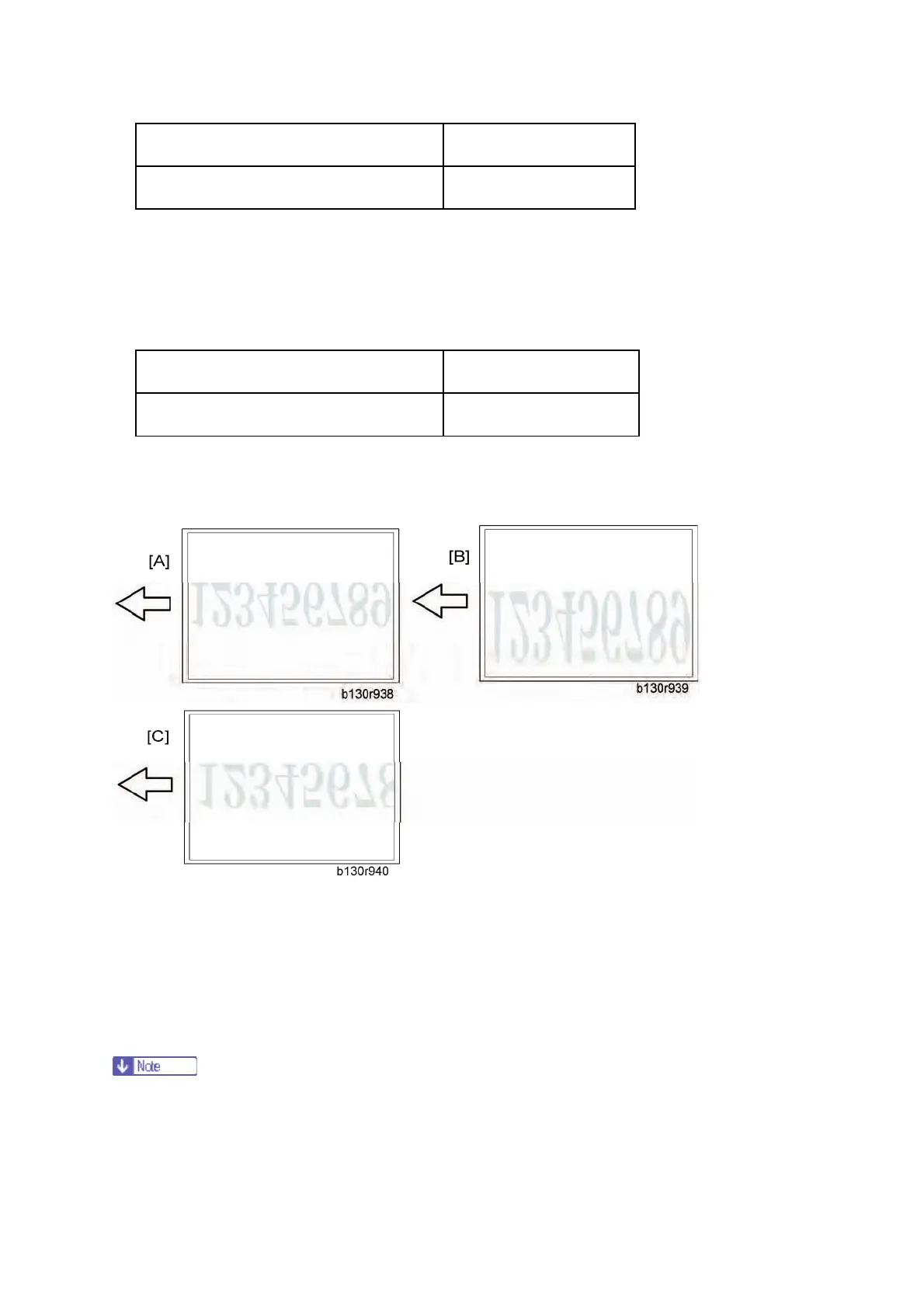

4. Adjust the main-scan and sub-scan magnifications. The original image [A] is magnified in
the main-scan direction [B] or in the sub-scan direction [C] when you specify a larger value.
 The diagrams show the paper on the copy tray. Note that the paper is output with the
face down.
