Ricoh Aficio MP201SPF Service Manual

Scanner Unit
SM 4-9 D115/D116
Replacement
and
Adjustment

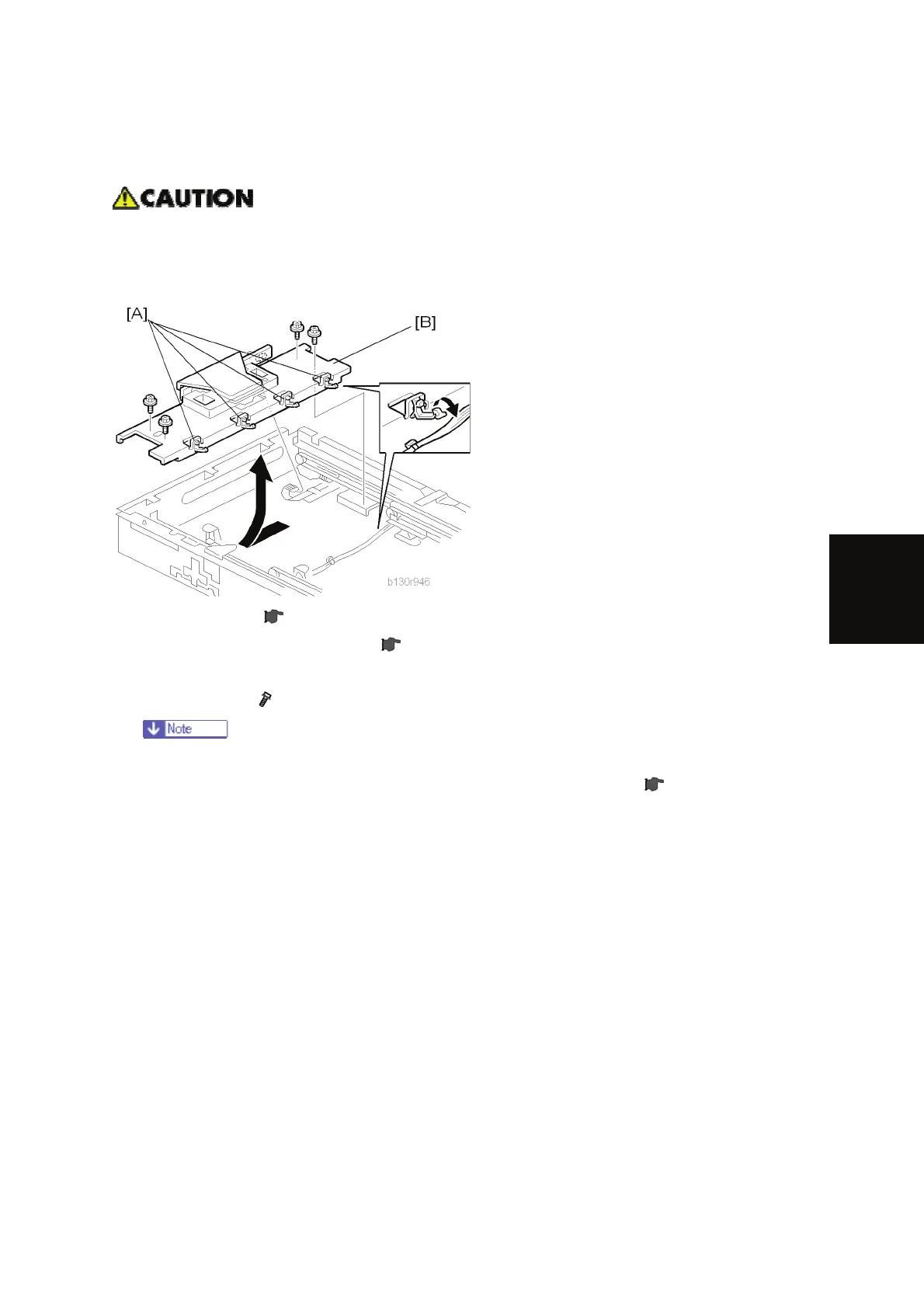

4.4.2 LENS BLOCK
 Do not disassemble the lens block. The lens block is precision adjusted before
shipment.
 Do not touch the screws on the CCD. The CCD is precision adjusted before shipment.
1. Exposure glass (
p.4-8)
2. Front left cover, operation panel (
p.4-5 "Operation Panel and Upper Covers")
3. Release the cable from the four clamps [A].
4. Lens block [B] (
x 4, 1 flat cable)
 Do not loosen the paint-locked screws holding the lens unit in place.
 After installing a new lens block, carry out copy adjustments (
p.4-60 "Adjusting
Copy Image Area").

Ricoh Aficio MP201SPF Specifications

General

Type	Multifunction Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Max Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	3 seconds per page
Modem Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Dimensions	485 x 450 x 481 mm
Warm-up Time	30 seconds
Paper Output Capacity	100 sheets
Print Speed	20 ppm
Copy Speed	20 cpm
Scanner Type	Flatbed
Zoom	25% - 400%
Supported Paper Sizes	A4, A5, A6, B5, Legal, Letter
Operating System Compatibility	Windows, Mac, Linux
Duplex Printing	Automatic
