Laser Unit
SM 4-49 D115/D116
Replacement
and
Adjustment
4.12 LASER UNIT
Turn off the main power switch and unplug the copier before starting replacement. The
laser beam can damage your eyes severely.
Do not touch the screws on the LD board on the LD unit. Do not try to adjust any part of
the LD unit. The LD unit is precision adjusted before shipment.
Do not touch the polygon mirror, shield glass, or lenses with your bare hands.

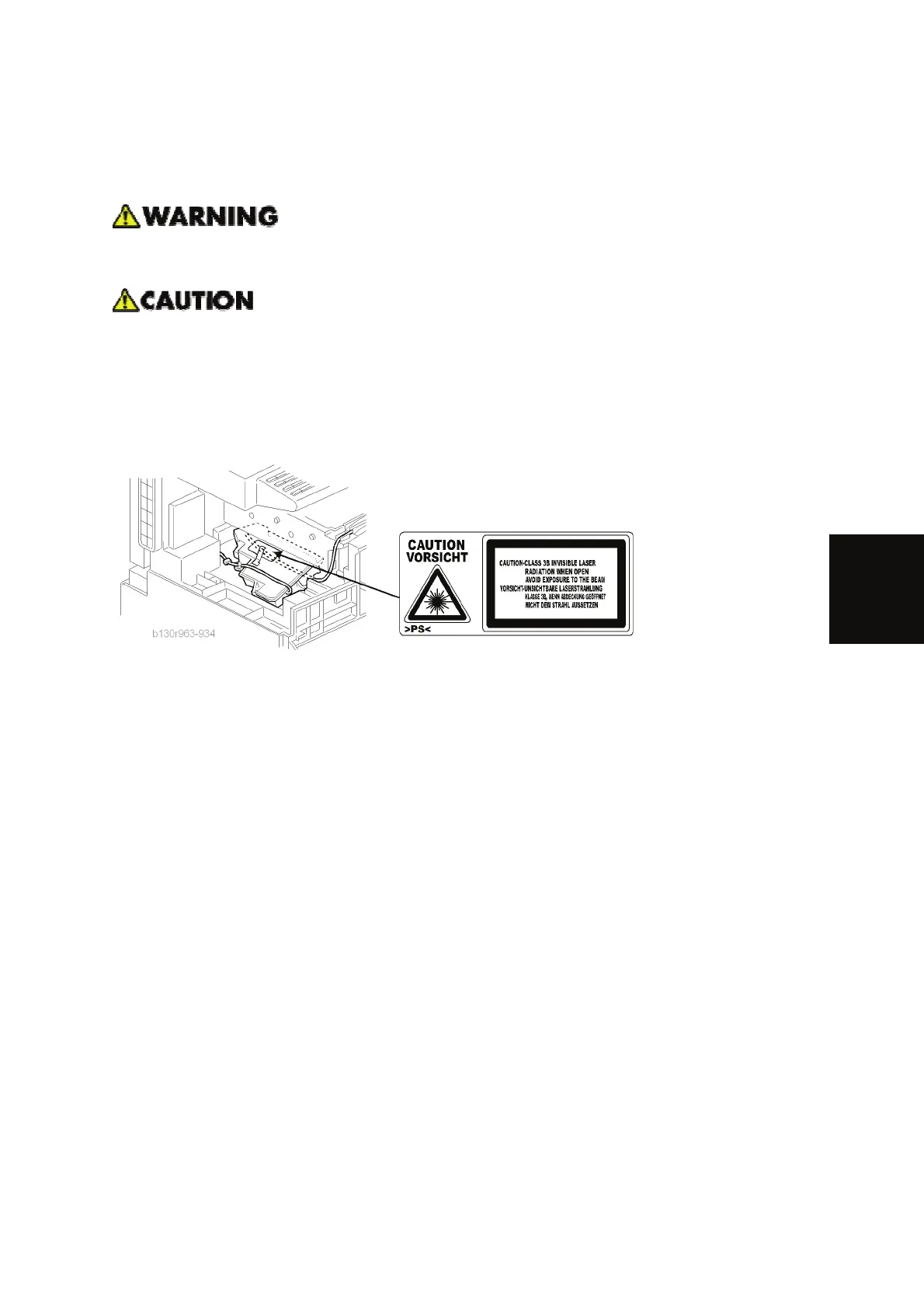

4.12.1 LOCATION OF THE CAUTION DECAL
