Ricoh Aficio MP201SPF - Df Drive Board; Original Set and Df Inverter Sensor

ARDF
SM 4-55 D115/D116
Replacement
and
Adjustment

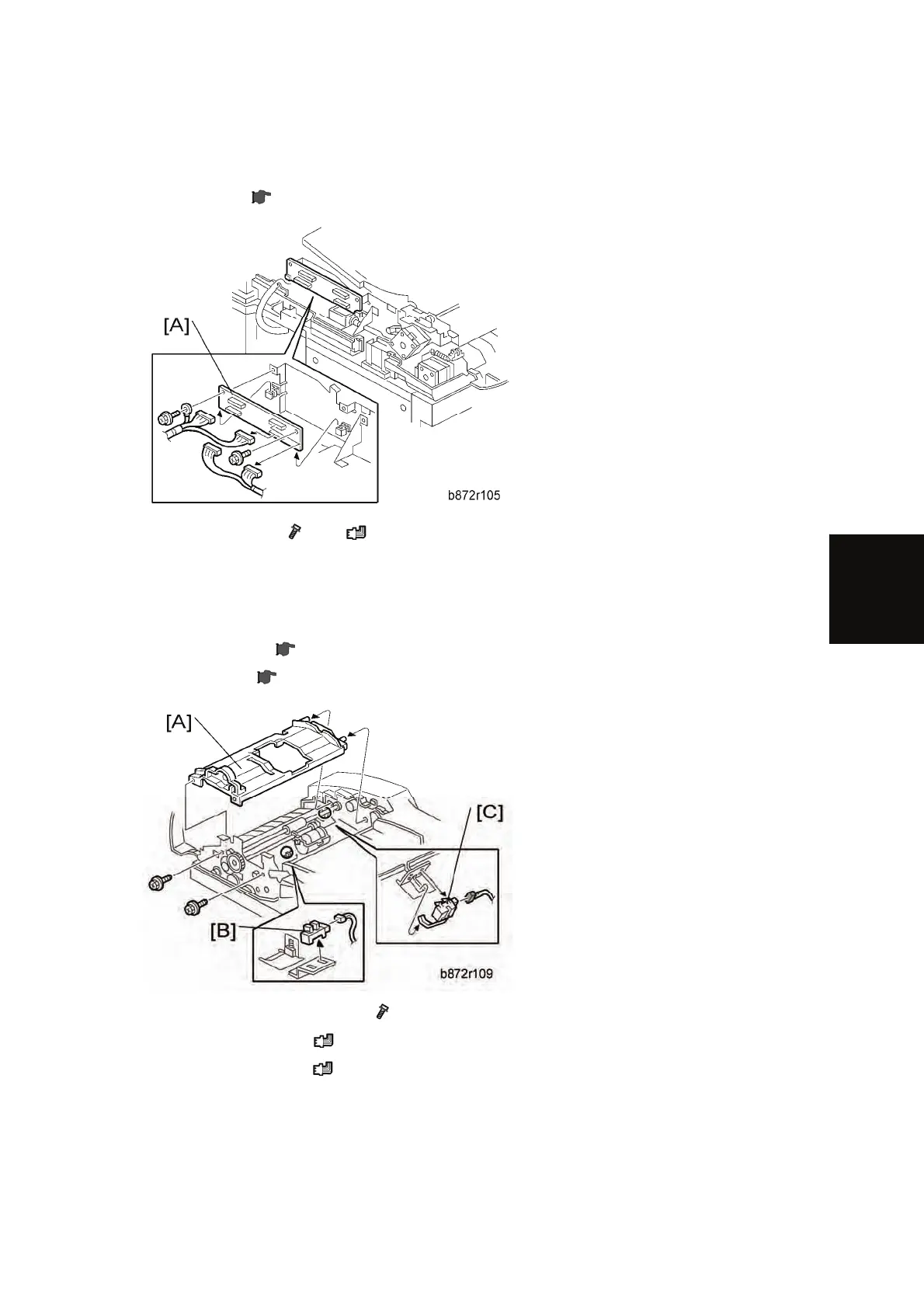

4.13.5 DF DRIVE BOARD
1. DF rear cover ( p.4-53)
2. DF drive board [A] (
x 2, x 4, ground cable x 1)
4.13.6 ORIGINAL SET AND DF INVERTER SENSOR
1. Open the DF left cover.
2. Original feed unit (
p.4-54)
3. DF feed clutch (
p.4-59)
4. Original feed-in guide plate [A] (
x 2).
5. Original set sensor [B] (
x 1, hook)
6. DF inverter sensor [C] (
x 1, hook)
