Ricoh Aficio MP201SPF - Main Motor

Exhaust Fan and Main Motor
SM 4-25 D115/D116
Replacement
and
Adjustment

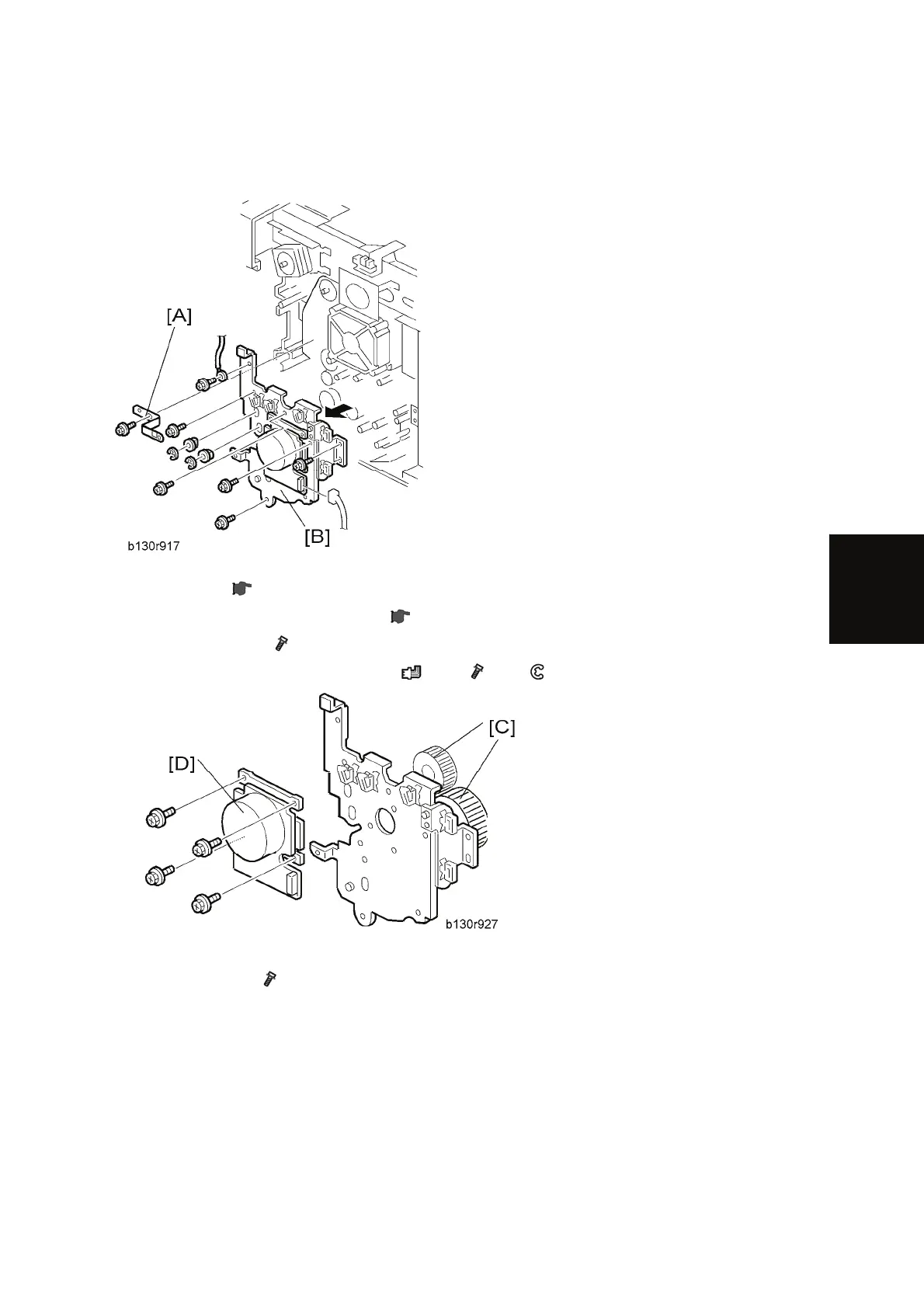

4.7.2 MAIN MOTOR
1. Rear cover (
p.4-3)
2. High-voltage power supply board (
p.4-43)
3. Ground plate [A] (
x 1)
4. Main motor with the gear cover [B] (
x 1, x 7, x 2, 2 bushings)
5. All gears [C]
6. Main motor [D] (
x 4)
Reassembling
Attach the main motor before attaching the gears.
