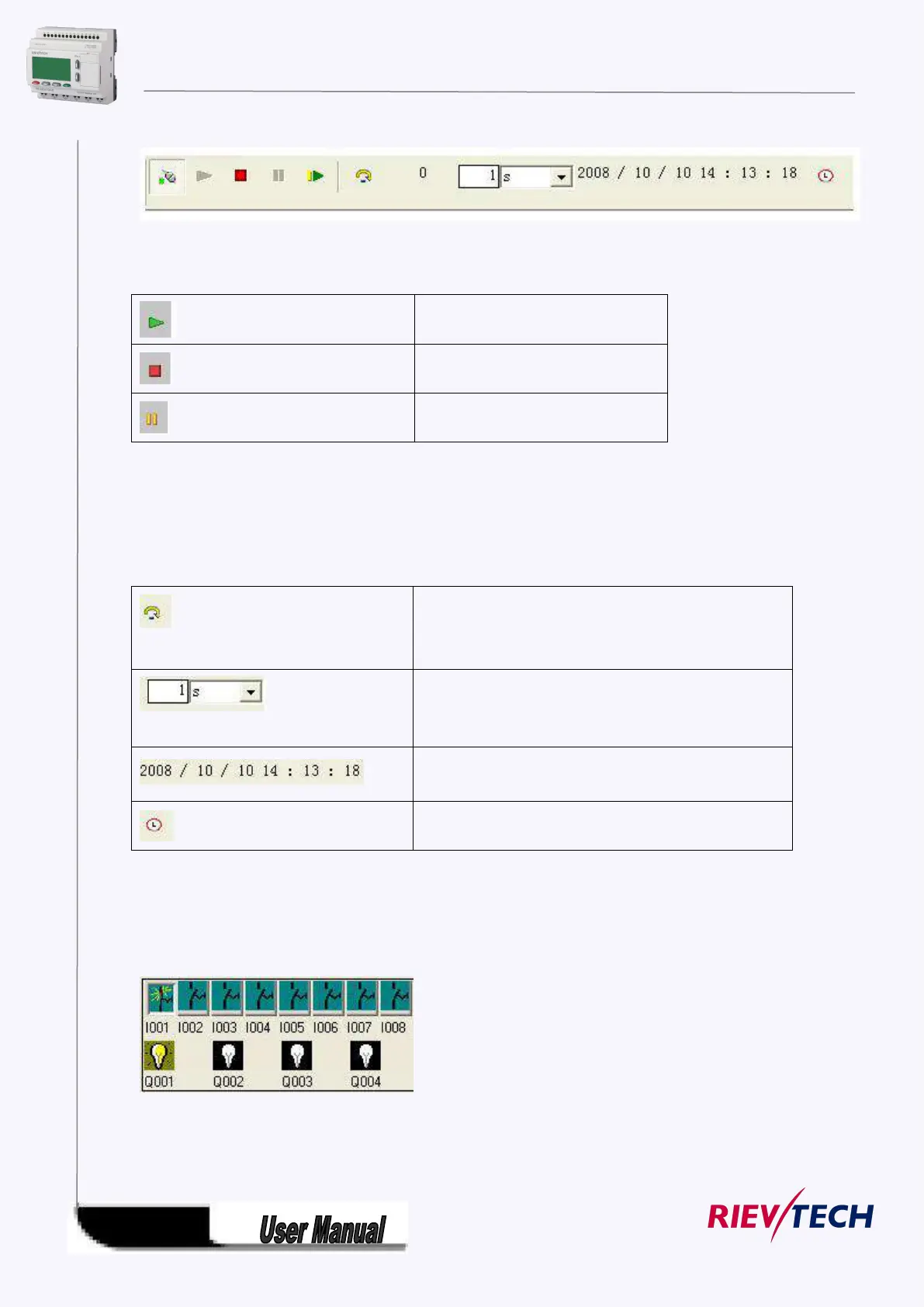

Simulation control icons
Start simulation
Stop simulation
Hold simulation (pause)
Time control
If you have programmed a time-sensitive circuit, you should use the time control to monitor the reaction
of your circuit program.
Start simulation for a specific time or number of cycles.
Set the period and the number of cycles using the following
icons.
Setting the period and the time base for a time limited
simulation or setting a specific number of cycles
Display of the current time in xLogicsoft
Modification of the current time in xLogicsoft
Status display
Layout of inputs
