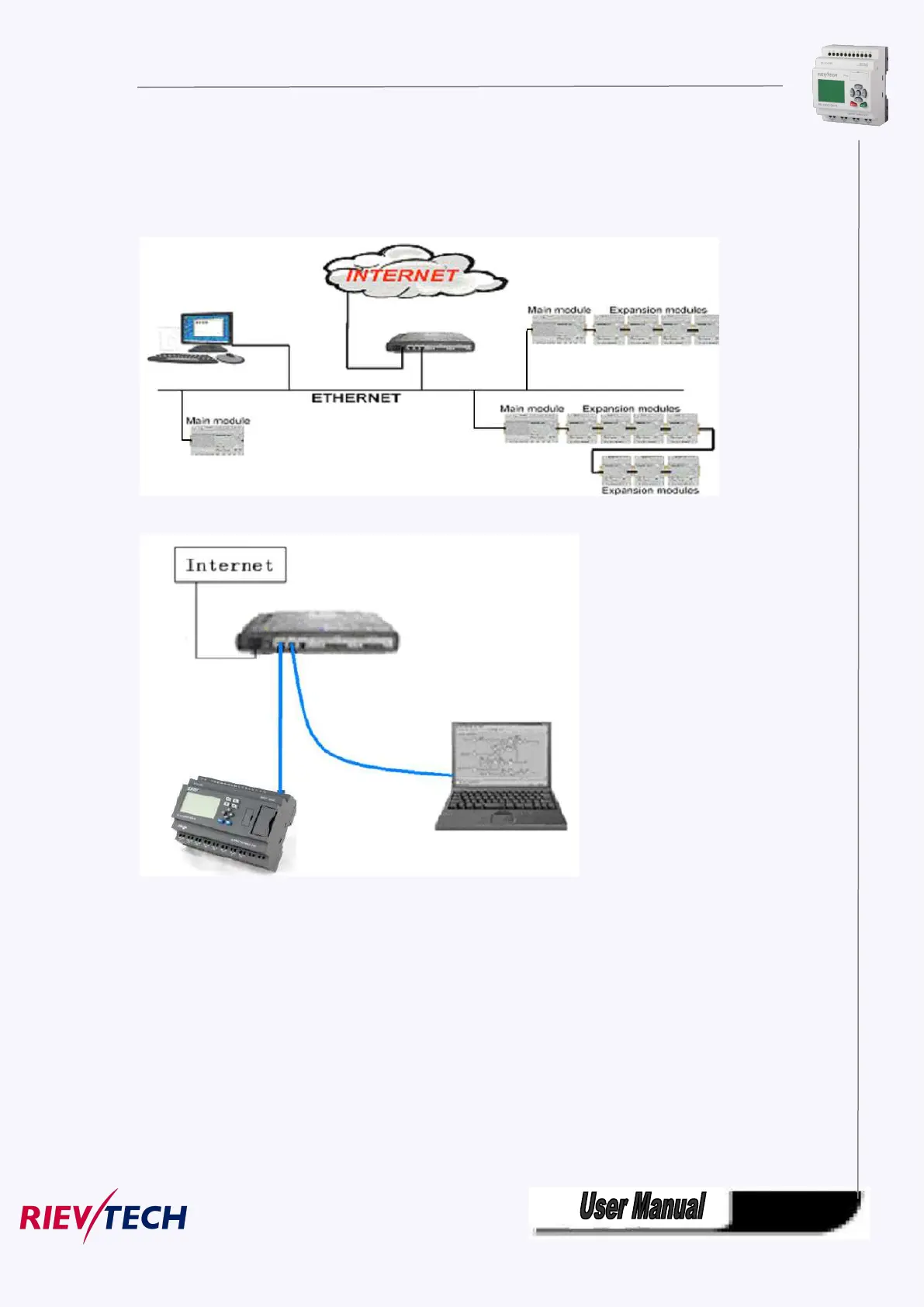

If the application requires a system where more than one main module is needed and these main
modules have to communicate, each main module will be connected over an Ethernet Module box to the
Ethernet. The project down- and upload to and from the main modules and the communication between
the main modules happens over the Ethernet network. Furthermore the visualization of the whole system
is possible and Rievtech to realize by a personal computer.
Software part:
Device IP factory setting
The default IP address of Ethernet module is：192.168.0.250
Network segment check of PC and Ethernet module’s
Users need ensure that PC has Ethernet cards,and that the network settings of PC and Ethernet module’s
must keep in the same network segment before establishing communication between PC and Ethernet
module.
