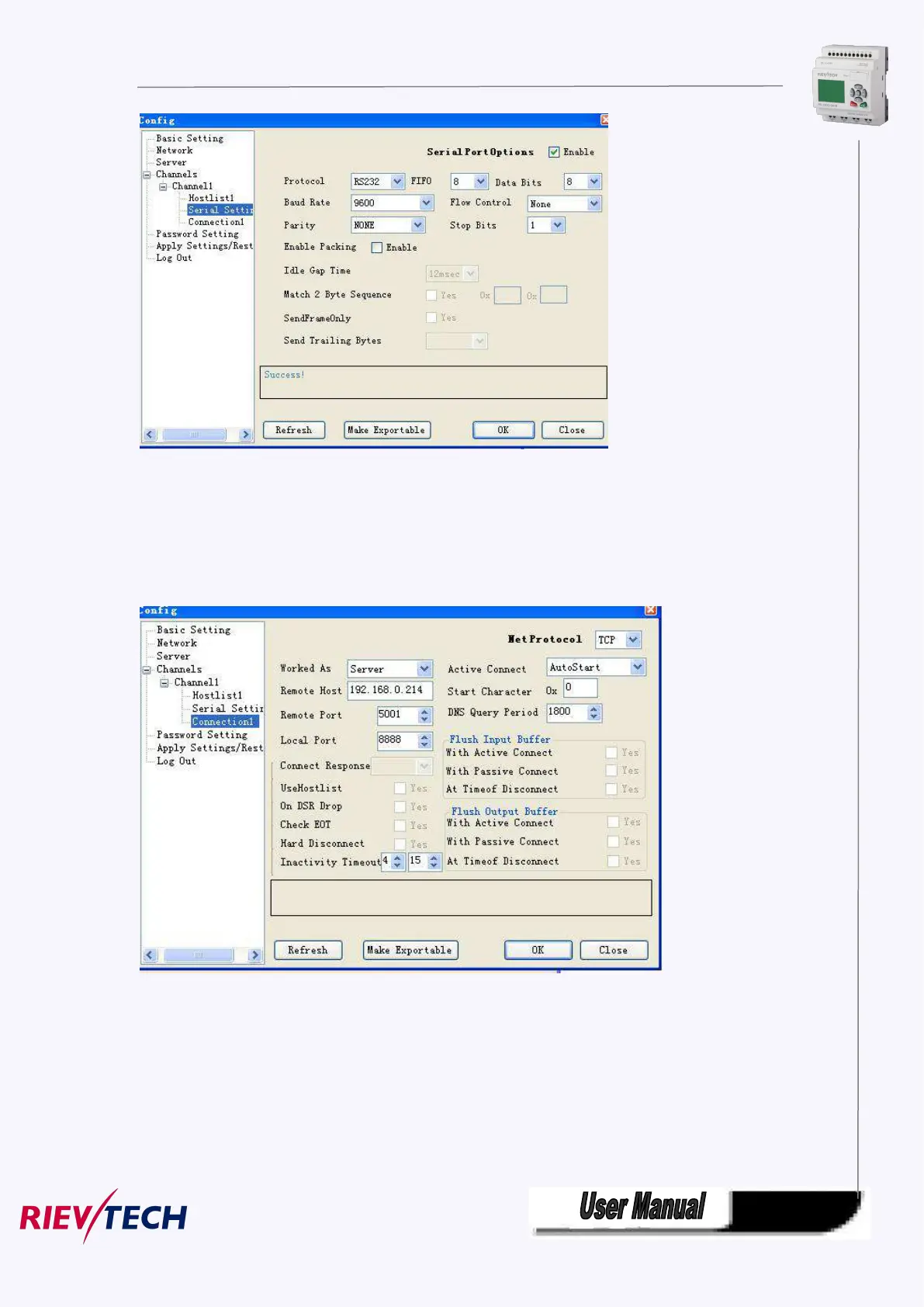

Serial Settings:
This item is very important, You need keep the settings as the above figure shows, the baud rates need
be 9600.
Note: Baudrate can be set “4800” ,”9600”,”19200” and the corresponding communication port must be
set the same as baudrate , namely , the COM3 of CPU. The default baudrate is 9600 in CPU.
Connection settings:
ELC-12DC-DA-R-N can work as either server or client.
Net Protocol: TCP
Worked As: Server/Client
Remote Host: The remote PC IP address (while working as client, CPU will automatically get connected
to such remote host.)
Active connect : AutoStart
