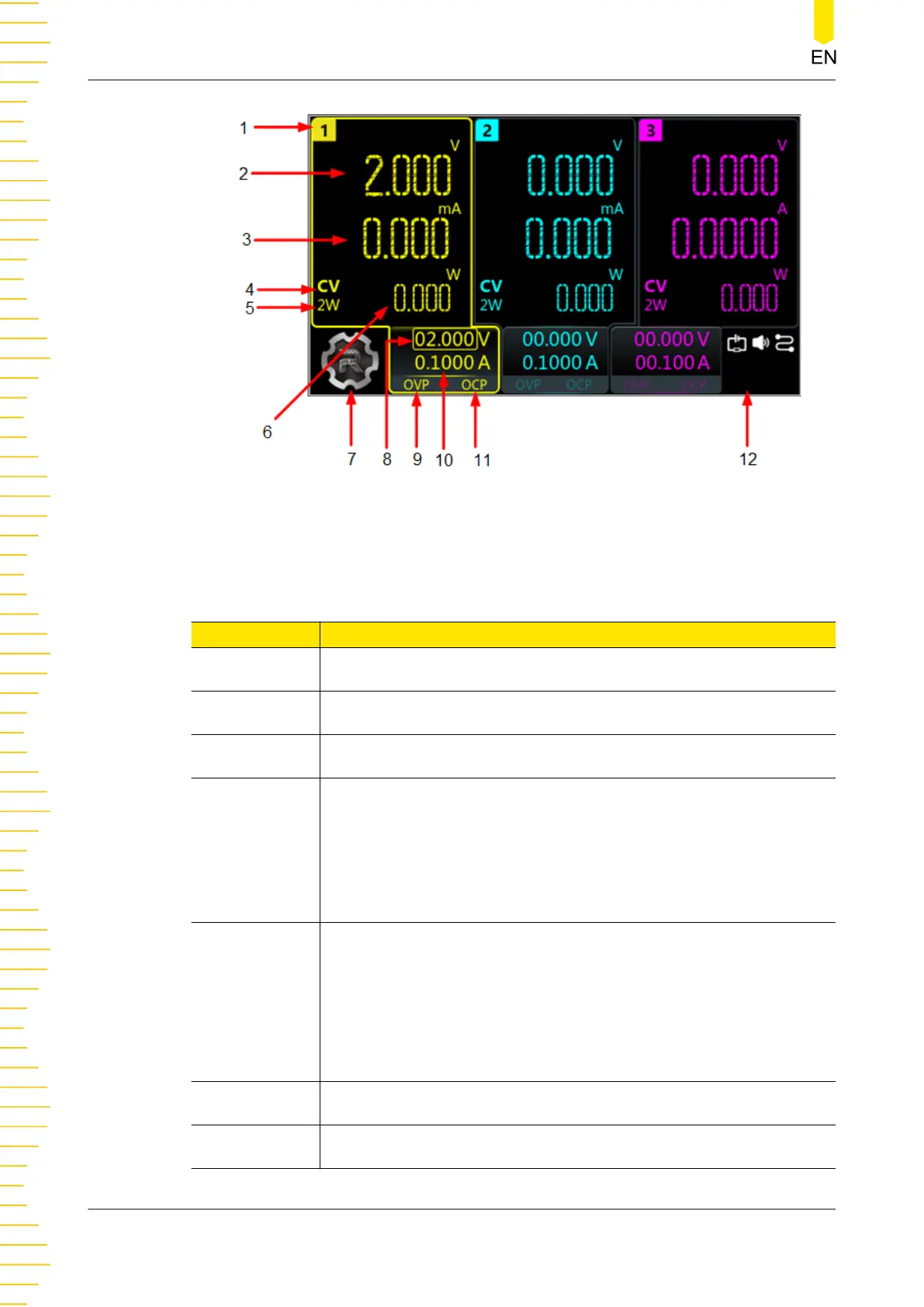

Figure 4.6 User Interface
Table 4.2 User Interface Description
No. Description
1 Channel identifier
2 Actual output voltage
3 Actual output current
4
Output mode
CV: The output is in constant voltage mode.
CC: The output is in constant current mode.
UR: The output is unregulated.
5
Sense connection
4W indicates that 4-wire sensing (remote sensing) measurement is
in use.
2W indicates that 2-wire sensing (local sensing) measurement is in
use.
6
Actual output power
7 Navigation icon
Quick Start
DP2000 User Guide
18
